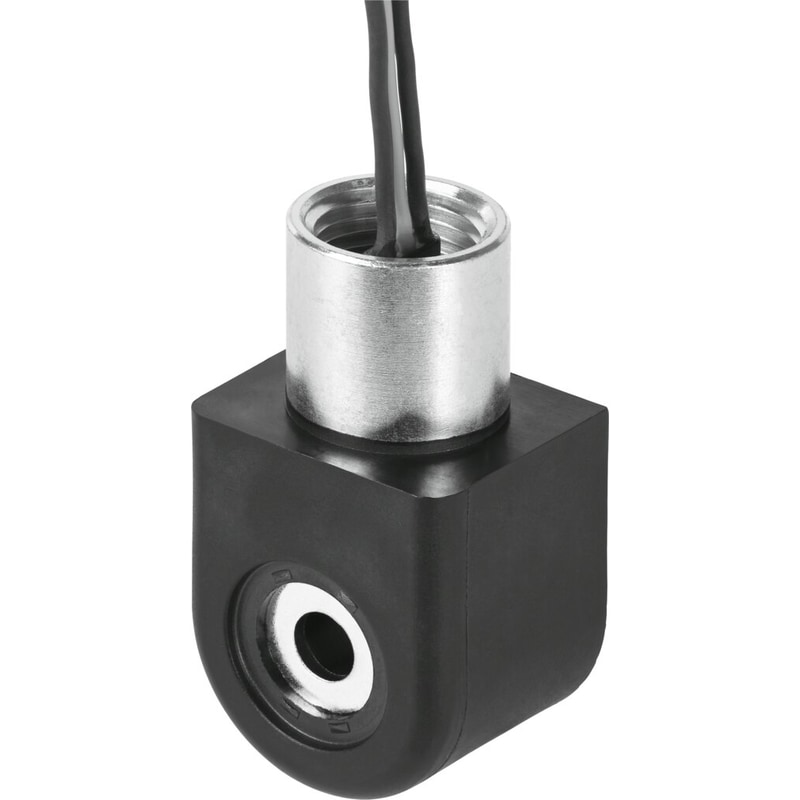

solenoid coil VACN-N-K11-16B-0.5-U4-M Type of actuation=electrical, Assembly position=Any, Duty cycle=100%, Insulation class=H, Enamelled wire insulation class=H
| Type of actuation | electrical |
|---|---|
| Assembly position | Any |
| Duty cycle | 1 |
| Insulation class | H |
| Enamelled wire insulation class | H |
| Characteristic coil data | 120V AC: 60 Hz, pick-up power 10.0 VA, holding power 6.8 VA |
| Permissible voltage fluctuation | ‘+/- 10 % |
| Explosion ignition protection type Gas | AEx m II T4Ex m II T4 |
| Explosion protection certification outside the EUÂ | Class I, Div. 1 (CA)Class I, Div. 1 (US)Class I, Div. 2 (CA)Class II, Div. 1 (CA)Class II, Div. 1 (US)Class III, Div. 1 (CA)Class III, Div. 1 (US)EPL Gb (US) |
| Explosion-proof ambient temperature | ‘-20°C <= Ta <= +60°C |
| Certificate issuing department | CSA 265489DNVGL-TAA000011JFM 3053936 |
| CE mark (see declaration of conformity)Â | to EU directive low-voltage devices |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
