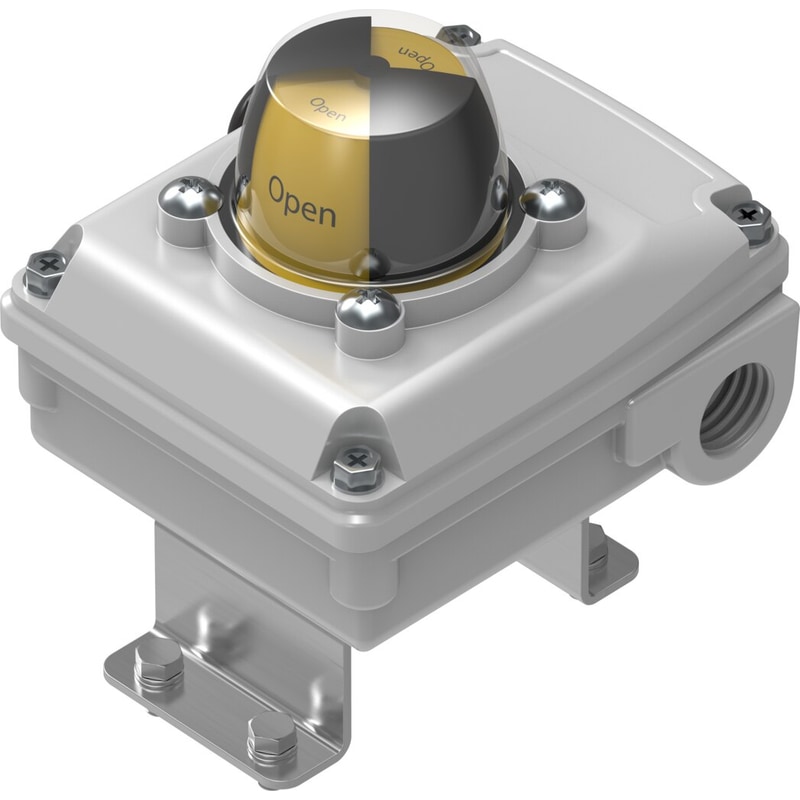

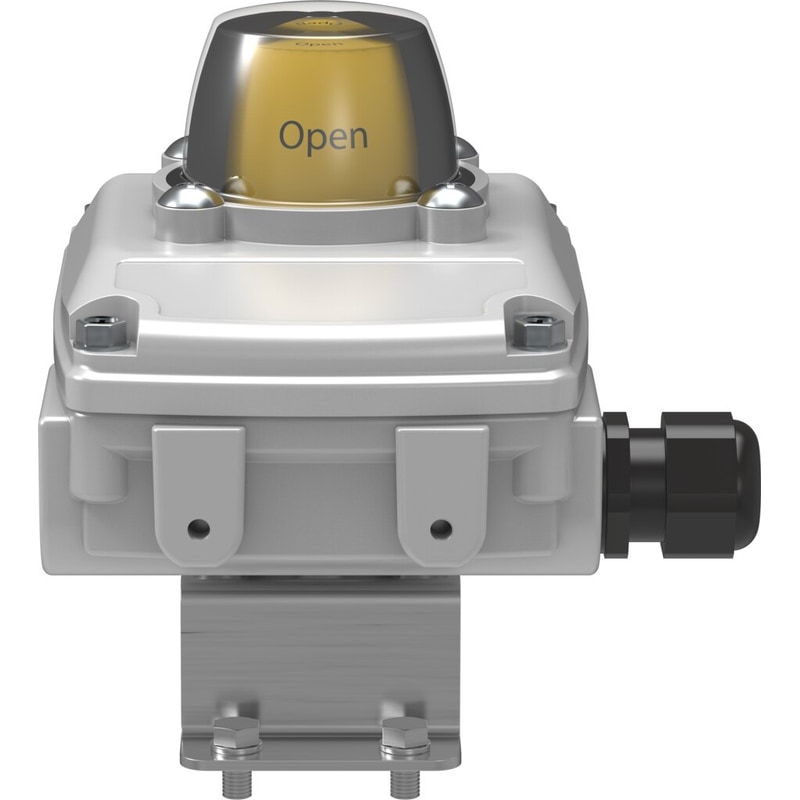

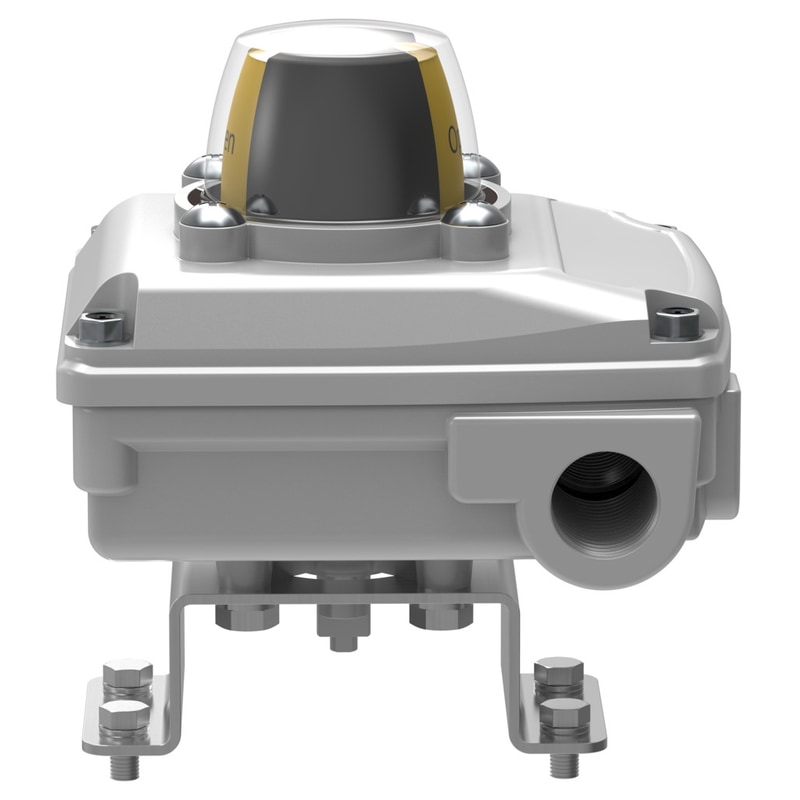

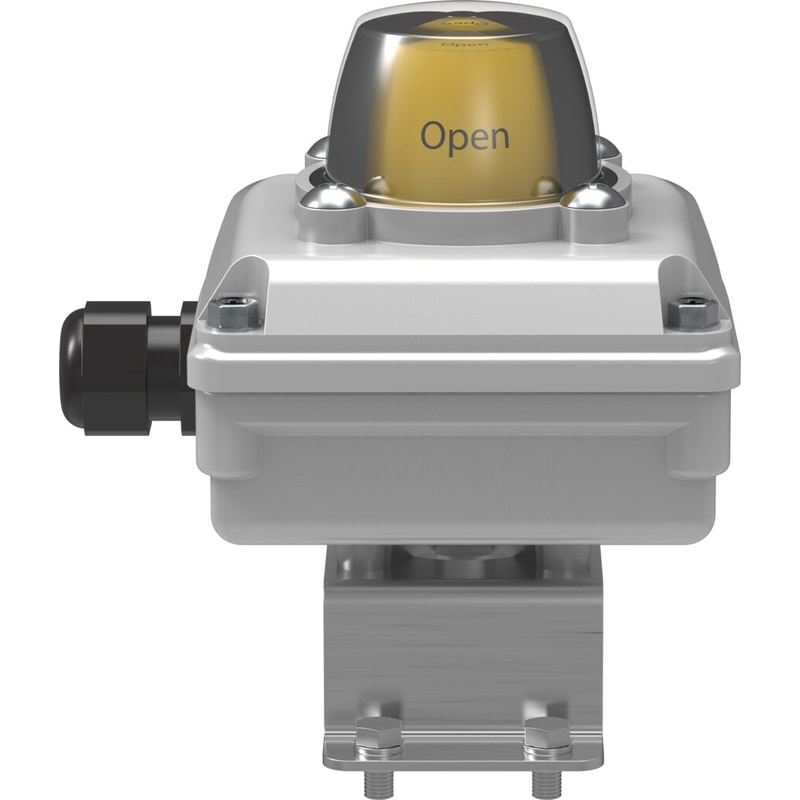

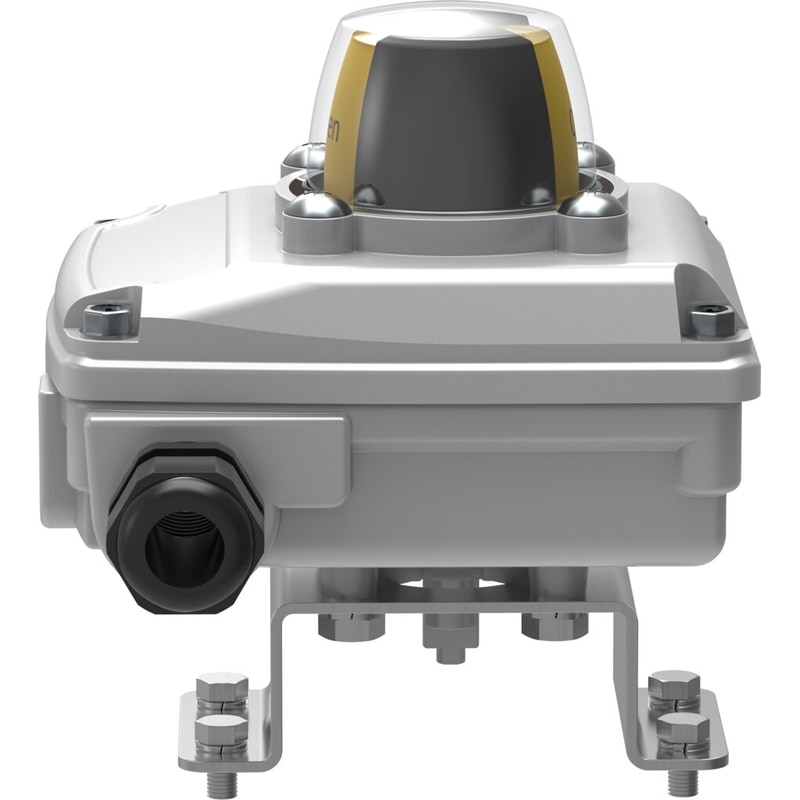

sensor box SRBC-CA3-YR90-MW-22A-1W-C2P20 for electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators. Design=Angular, Based on the standard=(* EN 60947-5-1, * ISO 5211, * VDI/VDE 3845), Authorisation=c CSA us (OL), CE mark (see declaration of conformity)=to EU directive low-voltage devices, Materials note=(* Contains PWIS substances, * Conforms to RoHS)
| Authorisation | c CSA us (OL) |
|---|---|
| CE mark (see declaration of conformity)Â | to EU directive low-voltage devicesin accordance with EU RoHS directive |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Safety Integrity Level (SIL)Â | SIL 2 |
| Ambient temperature | ‘-20 … 80 °C |
| Switch output | Contact-type |
| Switching element function | Toggle switch, single pole |
| Max. output current ACÂ | 0.125 |
| Max. output current DCÂ | 0.125 |
| Operating voltage range ACÂ | 0 … 250 V |
| Operating voltage range DCÂ | 0 … 30 V |
| Electrical connection | Screwed terminal10-pin |
| Connectable nominal conductor cross section | 0.25 … 2.5 mm2 |
