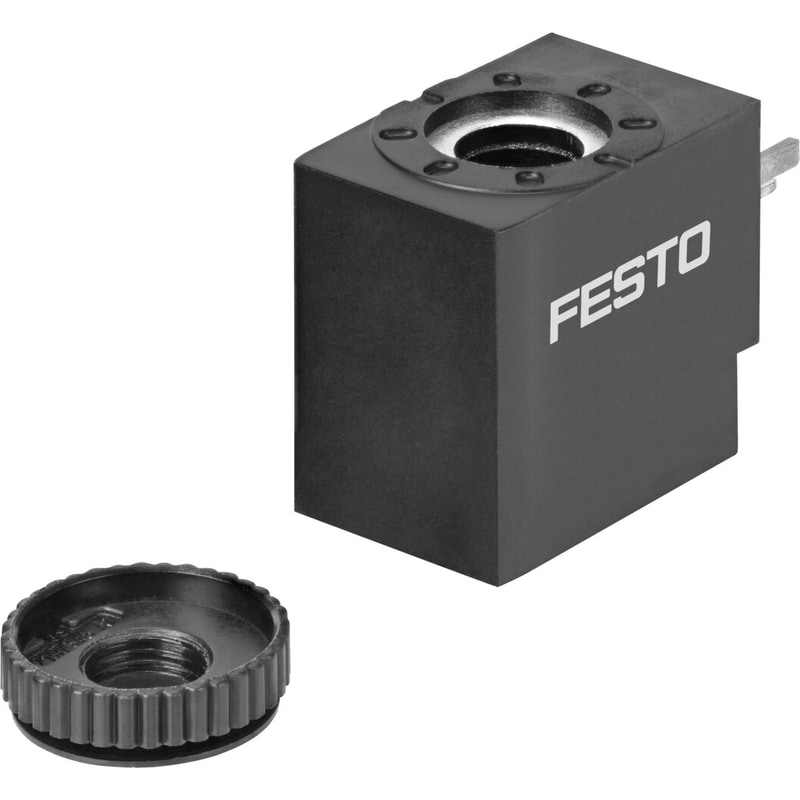

solenoid coil VACF-B-B2-16B Type B connection pattern, industry standard, 120Â VÂ AC/60Â Hz and 110Â VÂ AC/50-60Â Hz Assembly position=Any, Duty cycle=100%, Insulation class=H, Characteristic coil data=110/120 V AC: 50/60 Hz, pick-up power 4.4 VA, holding power 3.3 VA, Surge strength=2,5 kV
| Assembly position | Any |
|---|---|
| Duty cycle | 1 |
| Insulation class | H |
| Characteristic coil data | 110/120 V AC: 50/60 Hz, pick-up power 4.4 VA, holding power 3.3 VA |
| Surge strength | 2.5 kV |
| Degree of contamination | 3 |
| Permissible voltage fluctuation | ‘+/- 10 % |
| Certificate issuing department | DNVGL-TAA000011J |
| CE mark (see declaration of conformity)Â | to EU directive low-voltage devices |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Medium temperature | ‘-20 … 50 °C |
| Protection class | IP65 |
| Ambient temperature | ‘-20 … 50 °C |
