The shaft turns in one direction in fixed steps to a hard stop.

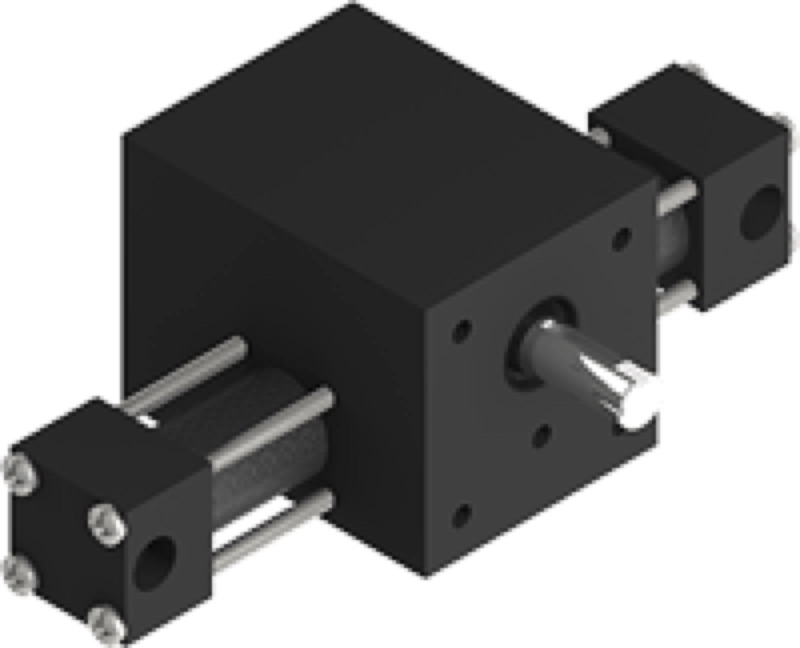

X1

X1 Indexing Actuator

12 in-lb at 80 psi

Open configurator

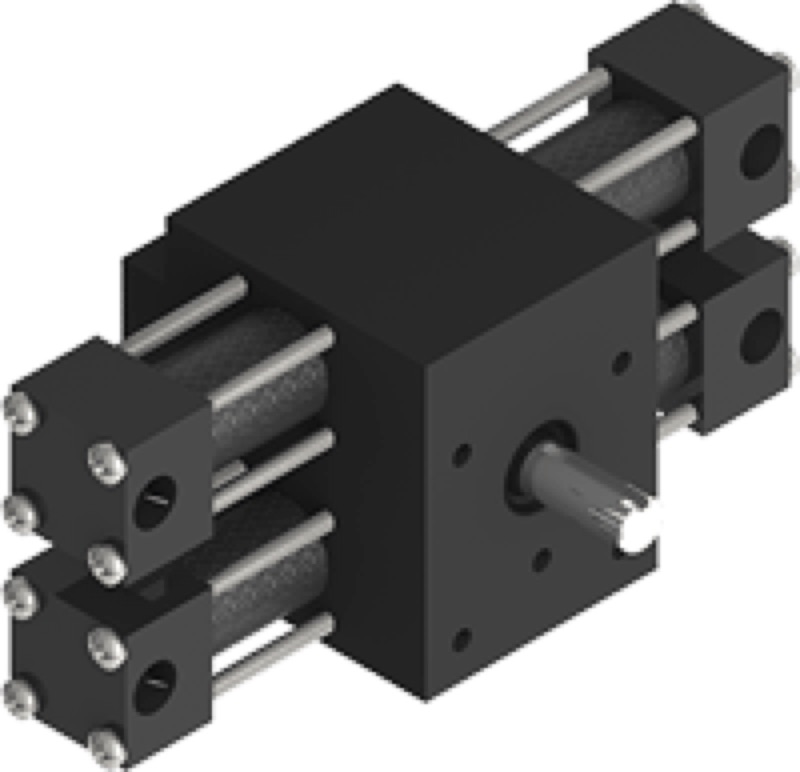

X12

X12 Dual-Rack Indexing Actuator

24 in-lb at 80 psi

Open configurator

X2

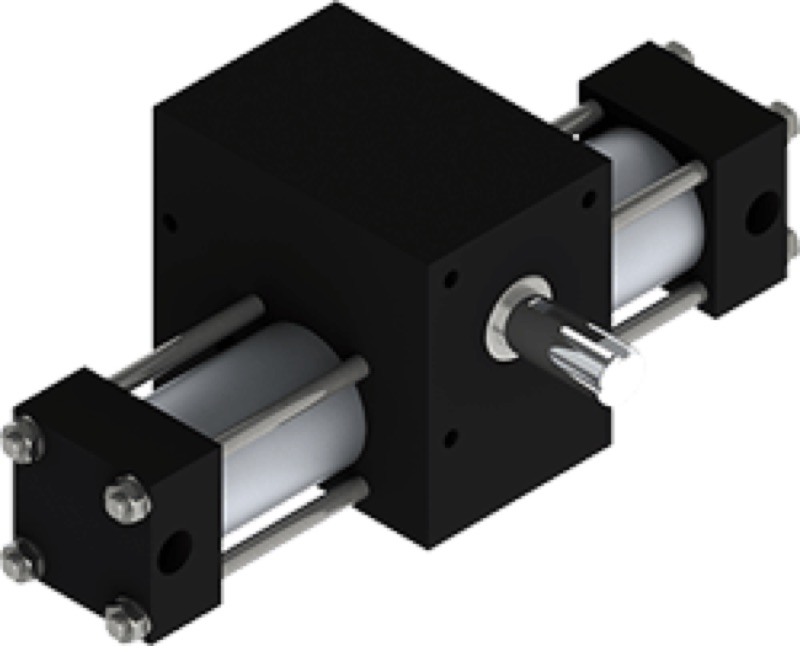

X2 Indexing Actuator

39 in-lb at 80 psi

Open configurator

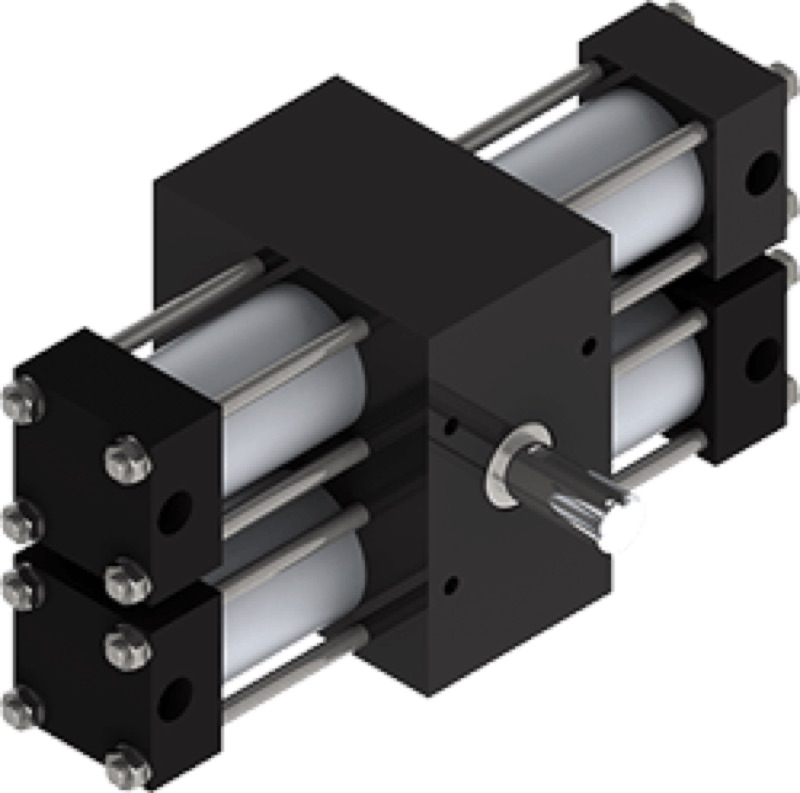

X22

X22 Dual-Rack Indexing Actuator

73 in-lb · 75 psi max

Open configurator

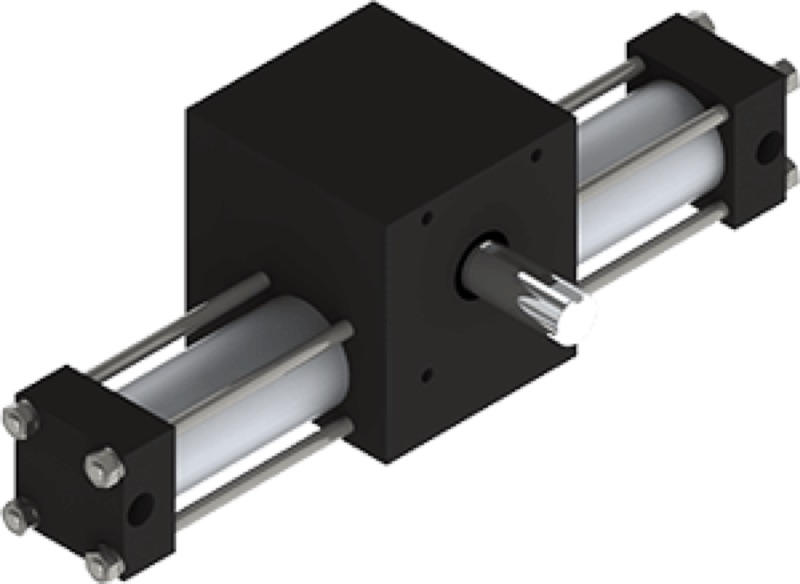

X3

X3 Indexing Actuator

119 in-lb at 80 psi

Open configurator

X32

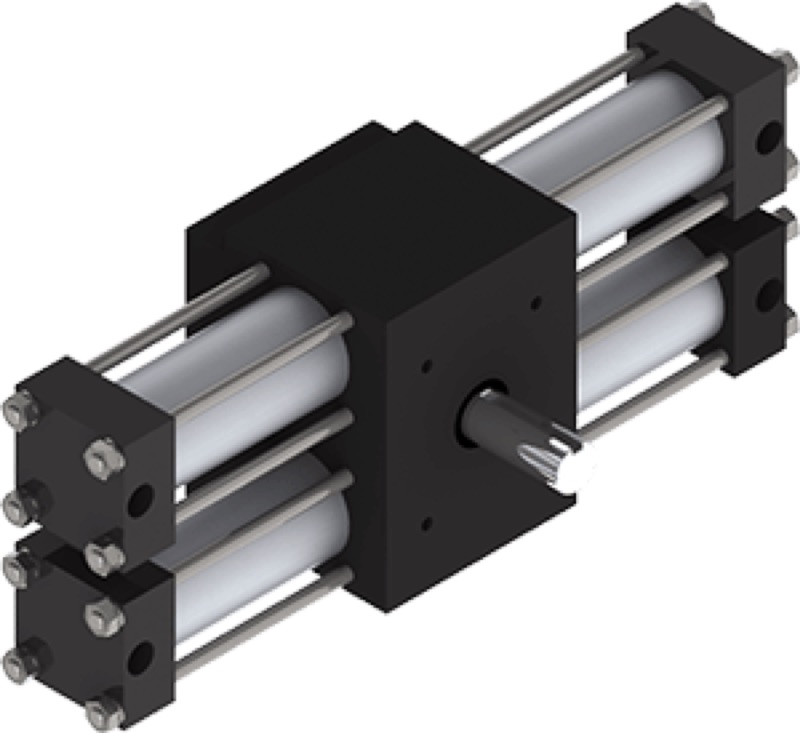

X32 Dual-Rack Indexing Actuator

179 in-lb · 60 psi max

Open configurator

X4

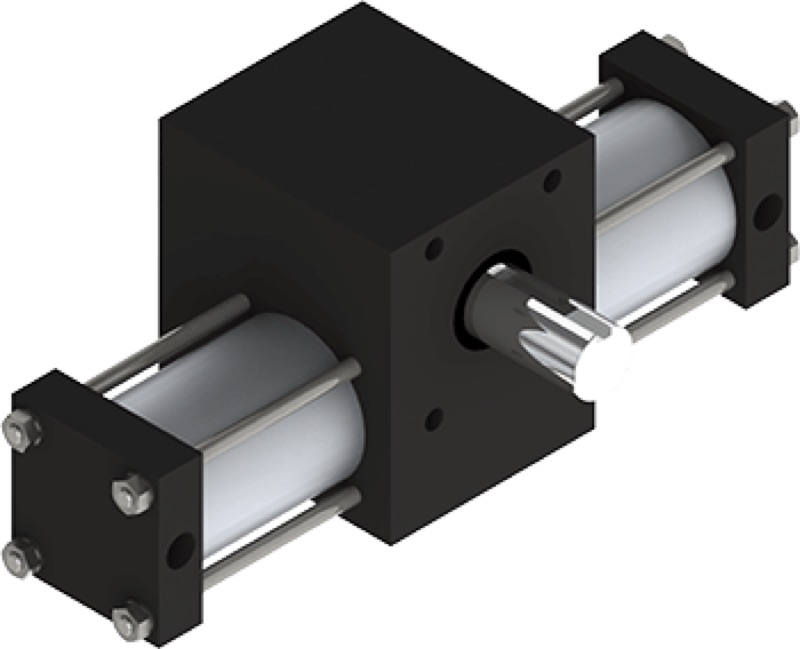

X4 Indexing Actuator

238 in-lb at 60 psi

Open configurator

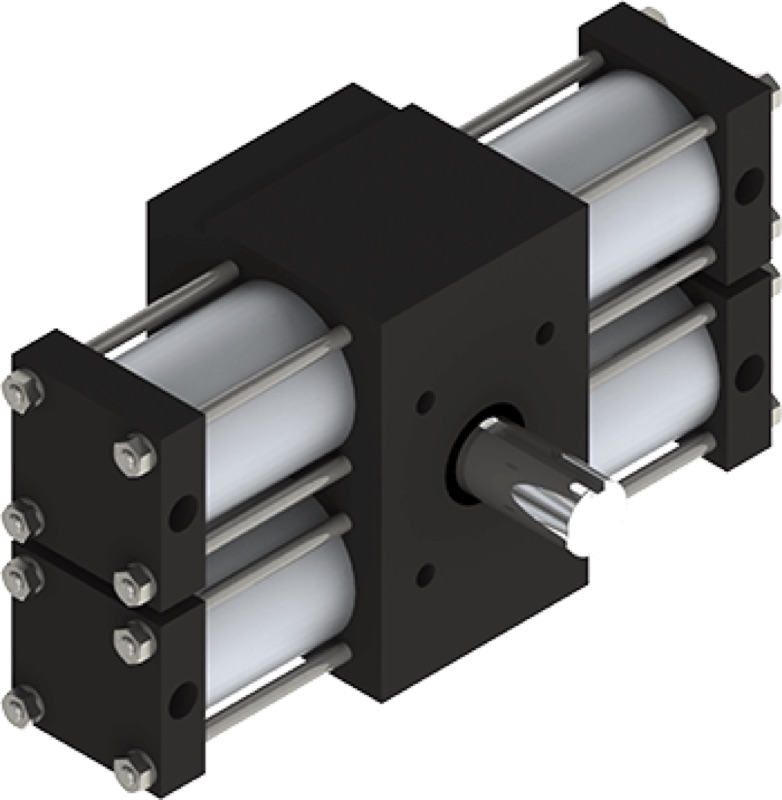

X42

X42 Dual-Rack Indexing Actuator

415 in-lb · 60 psi max

Open configurator

Compact units. The shaft turns back and forth between two positions.

A032

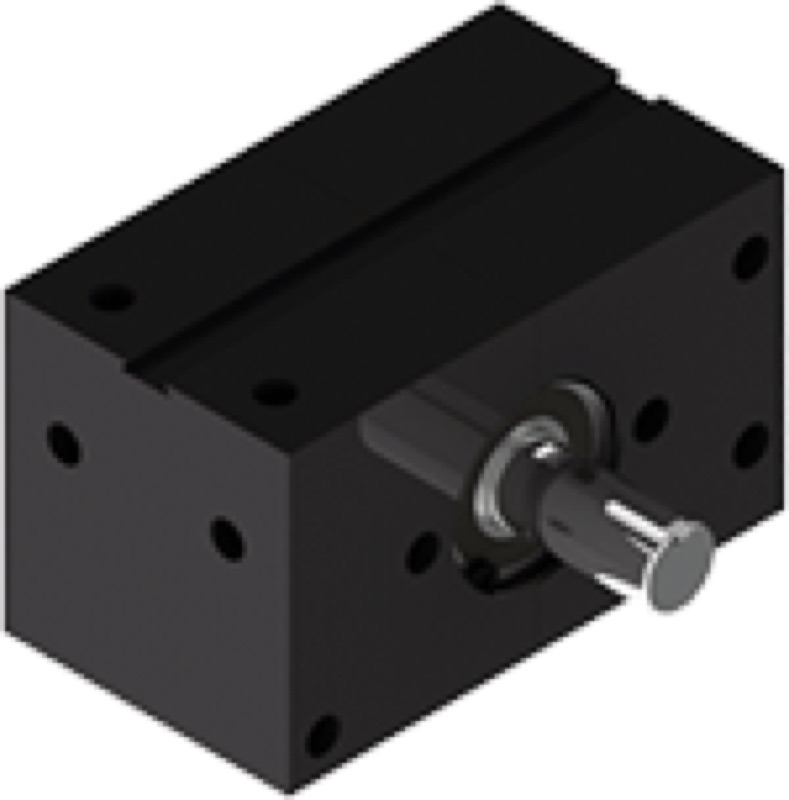

A032 Compact Rotary Actuator

9 in-lb at 80 psi

Open configurator

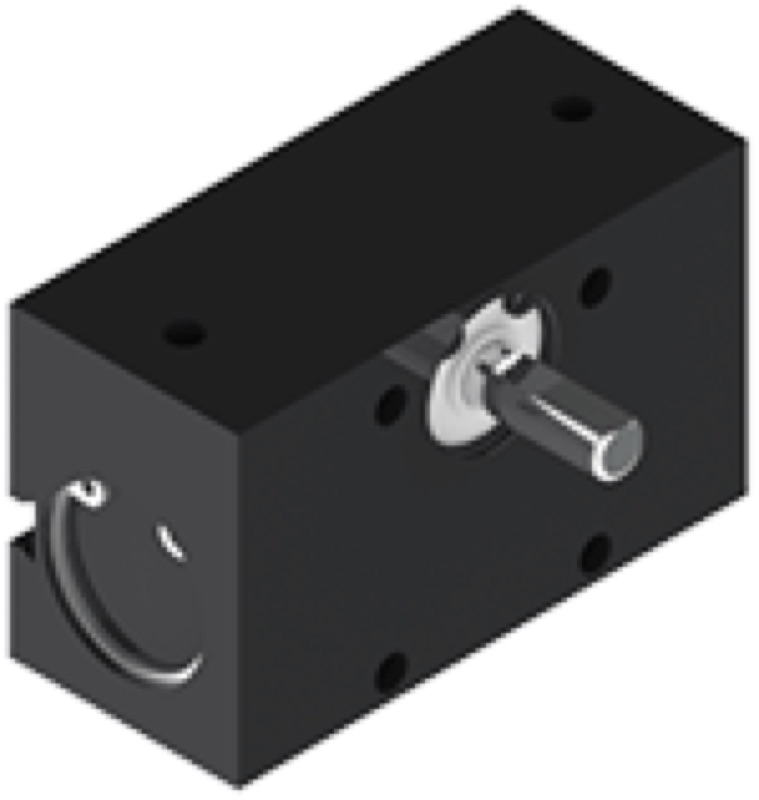

AL75

AL75 Compact Rotary Actuator

7 to 14 in-lb at 80 psi

Open configurator

A752

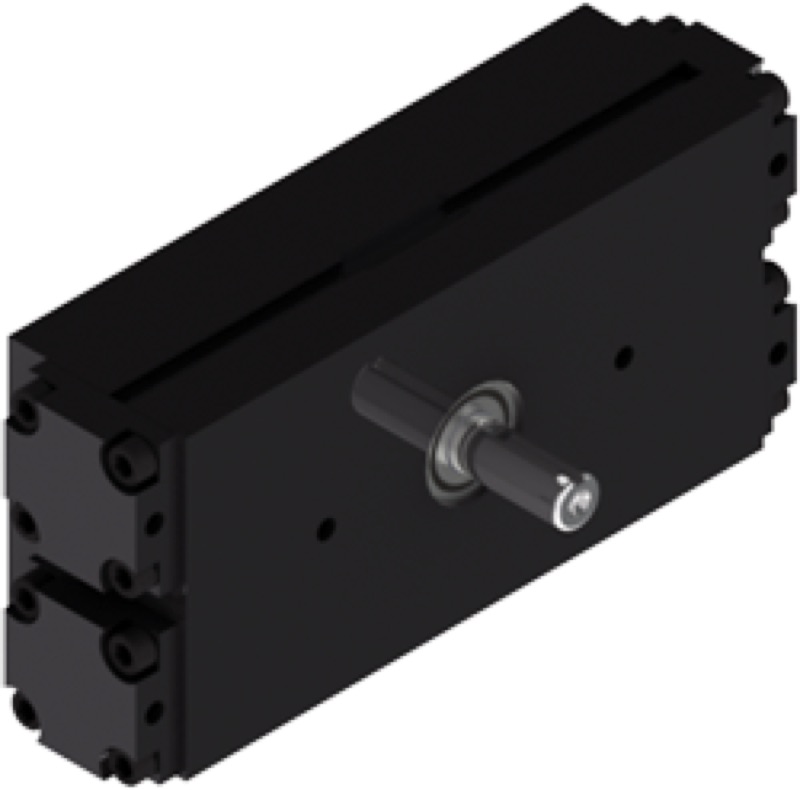

A752 Compact Rotary Actuator

35 in-lb at 80 psi

Open configurator

Tie-rod rotary actuators. The shaft turns back and forth between two positions.

A01

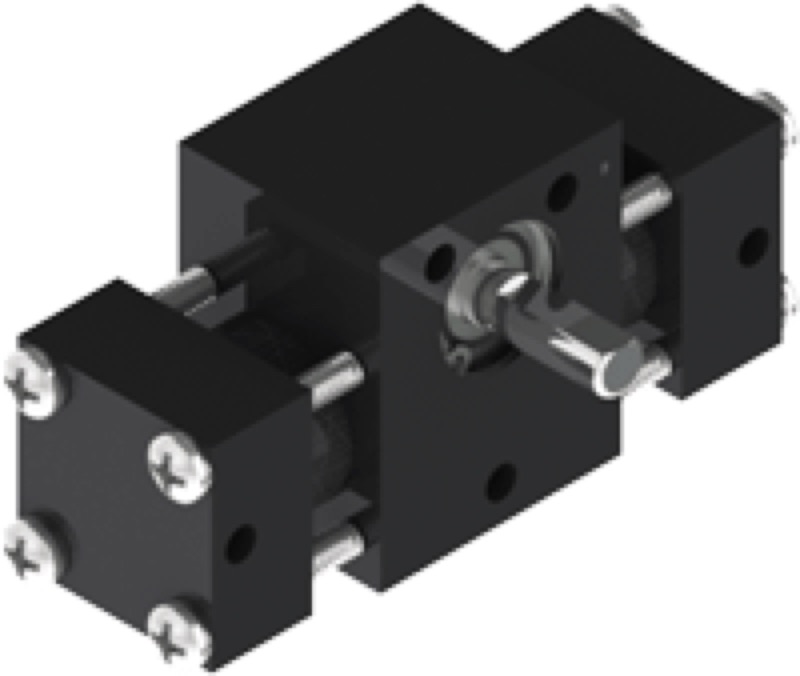

A01 Rotary Actuator

6 in-lb at 80 psi

Open configurator

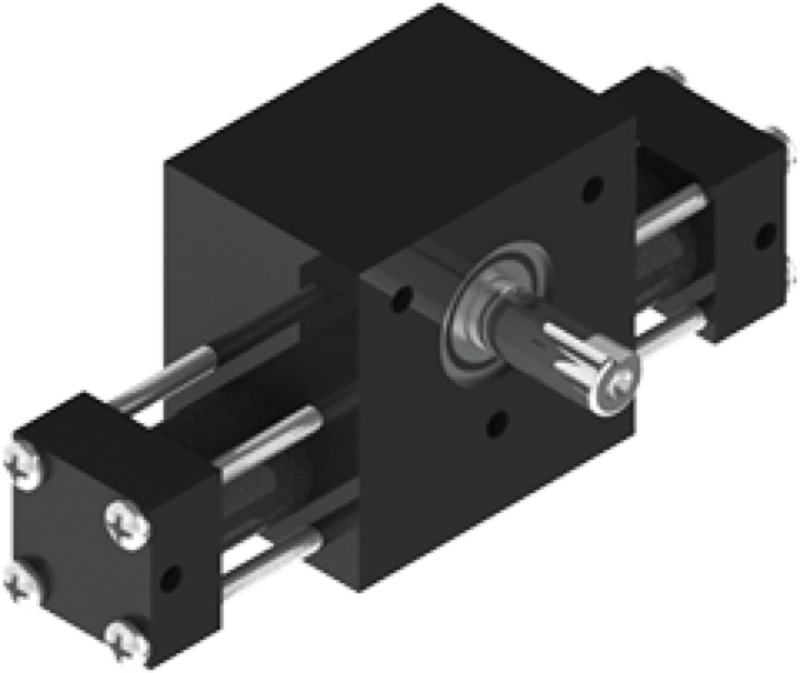

A1

A1 Rotary Actuator

12 in-lb at 80 psi

Open configurator

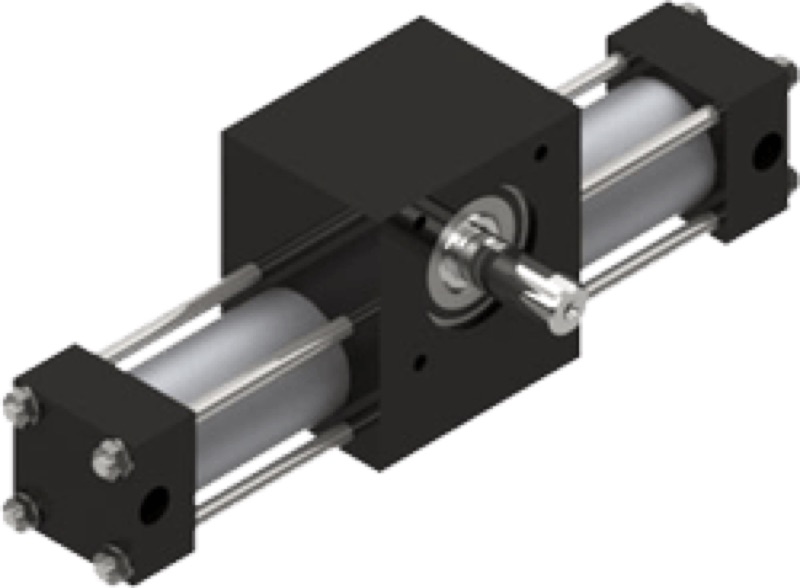

A2

A2 Rotary Actuator

39 in-lb at 80 psi

Open configurator

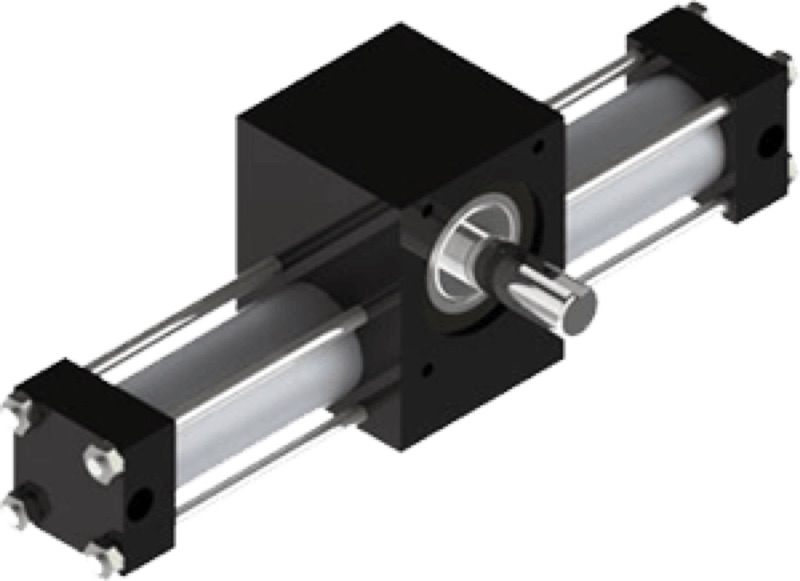

A3

A3 Rotary Actuator

119 in-lb at 80 psi

Open configurator

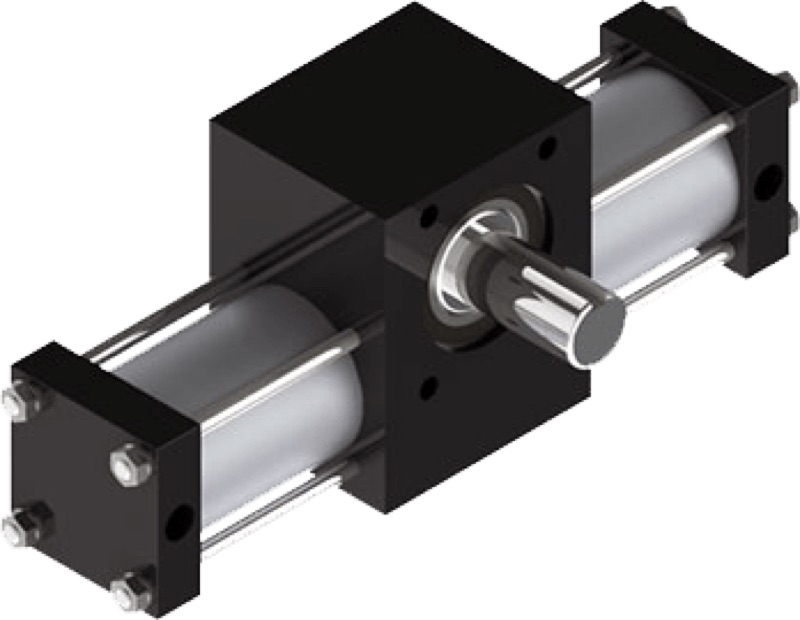

A4

A4 Rotary Actuator

277 in-lb at 80 psi

Open configurator

Dual racks give more torque than a single-rack unit in the same size class.

A12

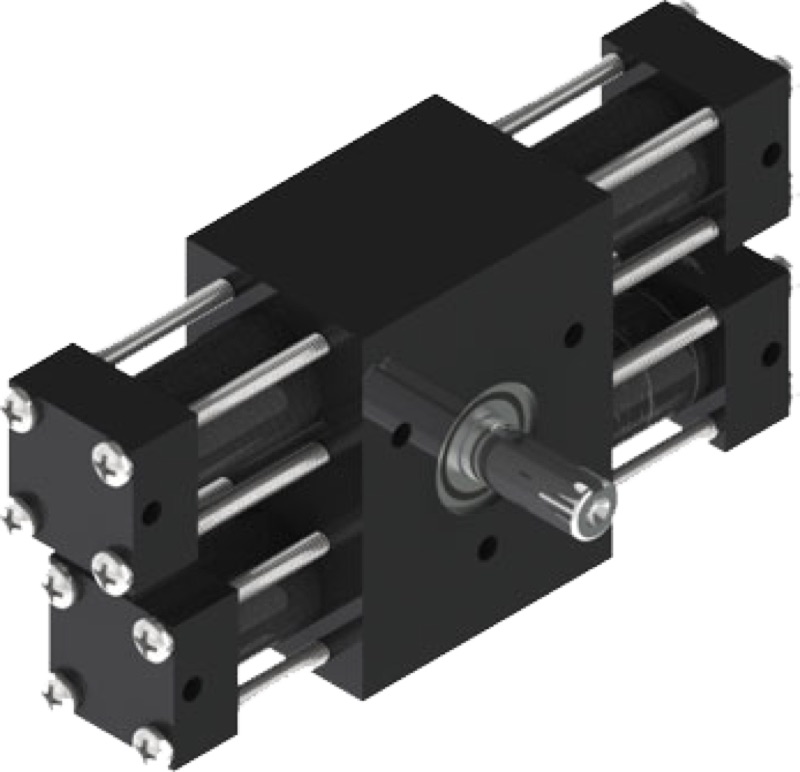

A12 Dual-Rack Rotary Actuator

24 in-lb at 80 psi

Open configurator

A22

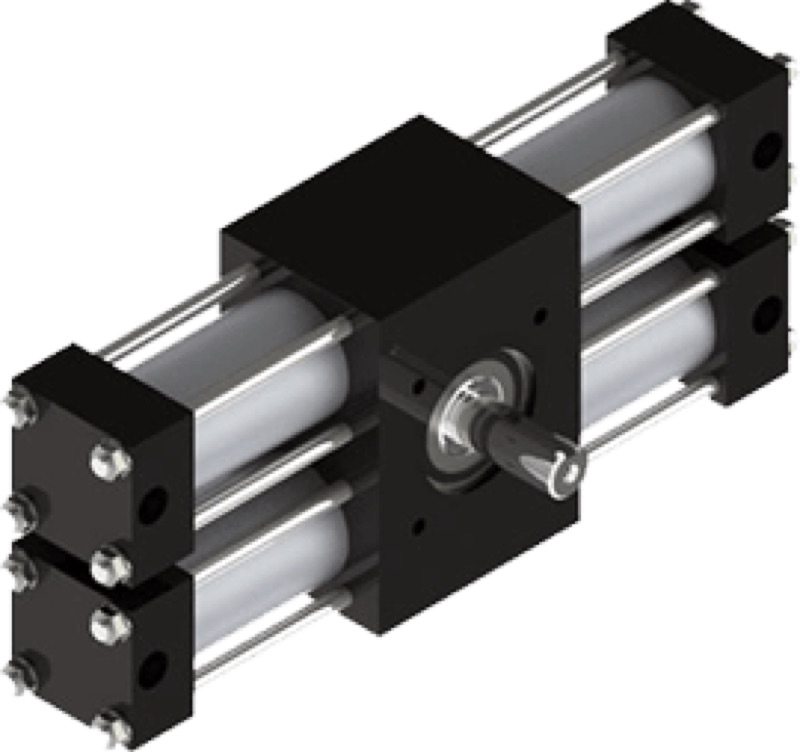

A22 Dual-Rack Rotary Actuator

78 in-lb at 80 psi

Open configurator

A32

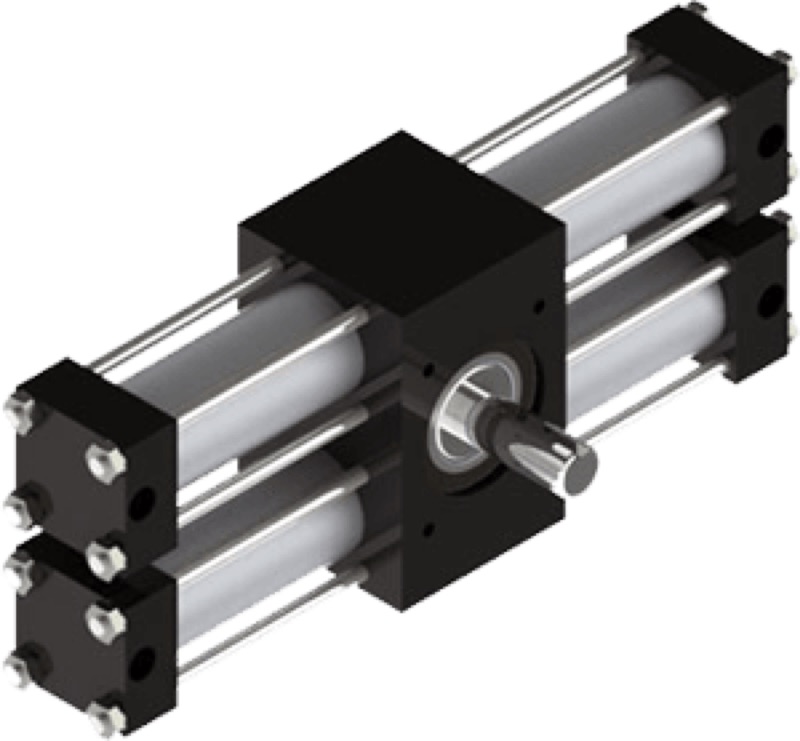

A32 Dual-Rack Rotary Actuator

238 in-lb at 80 psi

Open configurator

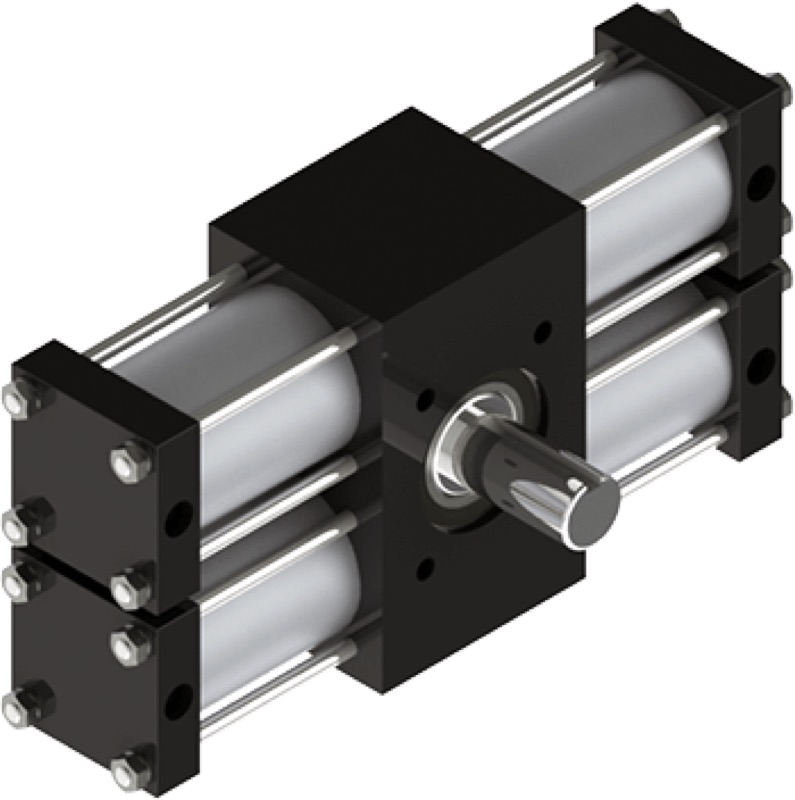

A42

A42 Dual-Rack Rotary Actuator

545 in-lb at 80 psi

Open configurator

The shaft stops at three fixed angles.

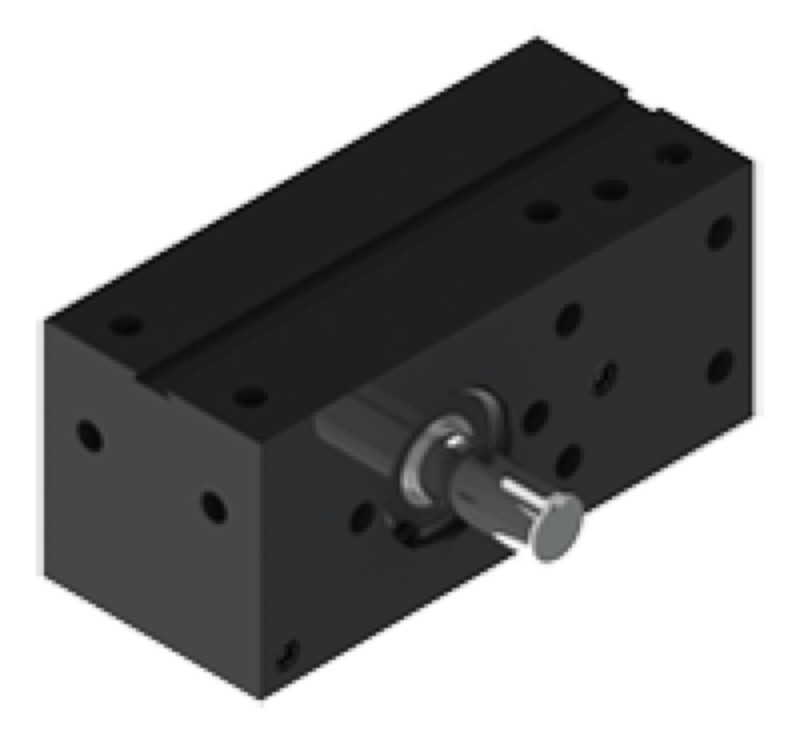

A032-3P

A032 Three-Position Rotary Actuator

6 in-lb at 80 psi

Open configurator

A12-3P

A12 Three-Position Rotary Actuator

12 in-lb at 80 psi

Open configurator

A22-3P

A22 Three-Position Rotary Actuator

39 in-lb at 80 psi

Open configurator

A32-3P

A32 Three-Position Rotary Actuator

119 in-lb at 80 psi

Open configurator

A42-3P

A42 Three-Position Rotary Actuator

277 in-lb at 80 psi

Open configurator

The shaft turns in one direction in set steps. This unit does not use a hard stop.

S1

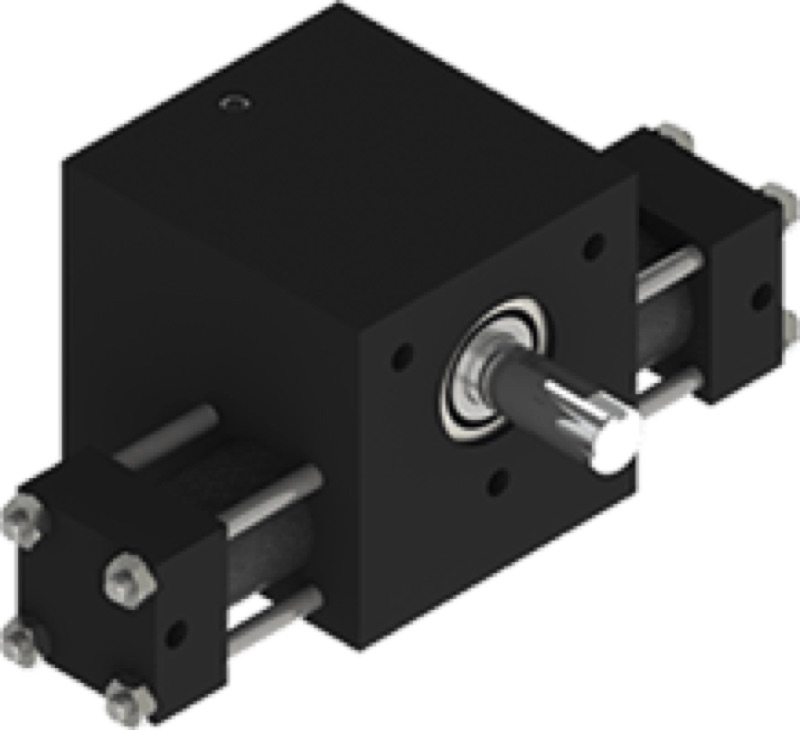

S1 Stepping Actuator

12 in-lb at 80 psi

Open configurator

S2

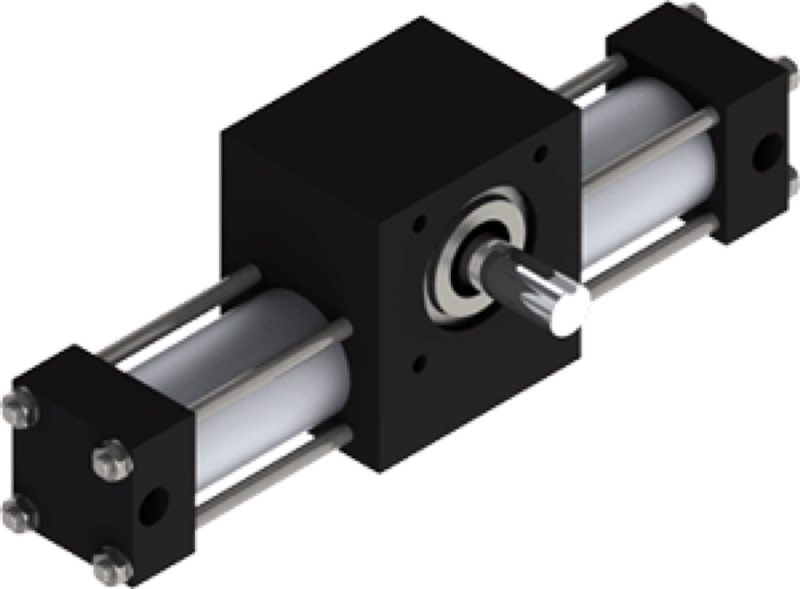

S2 Stepping Actuator

39 in-lb at 80 psi

Open configurator

S3

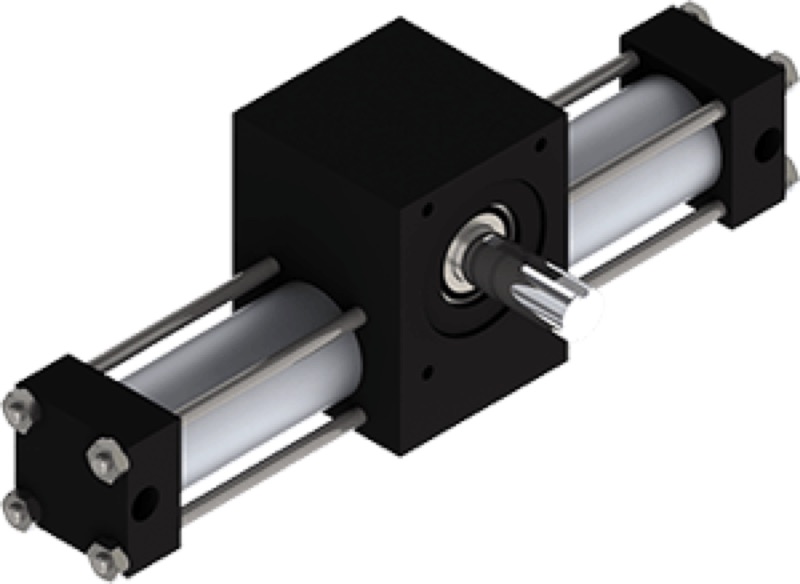

S3 Stepping Actuator

119 in-lb at 80 psi

Open configurator

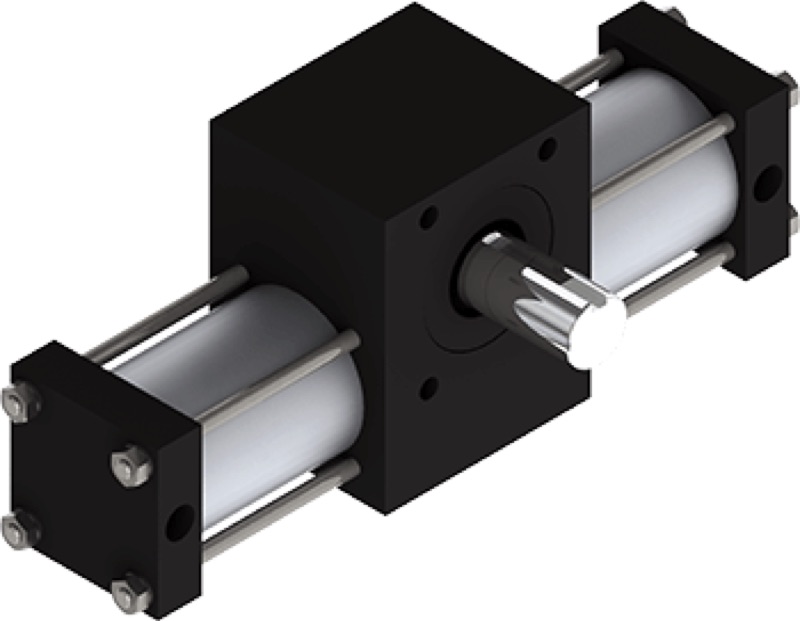

S4

S4 Stepping Actuator

277 in-lb at 80 psi

Open configurator

One unit gives linear motion and rotary motion. Also called pick-and-place.

PA01

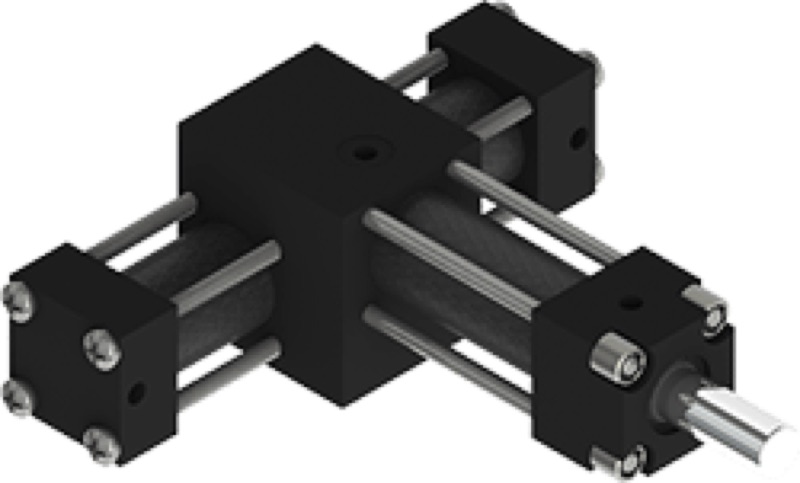

PA01 Multi-Motion Actuator

6 in-lb at 80 psi

Open configurator

PA2

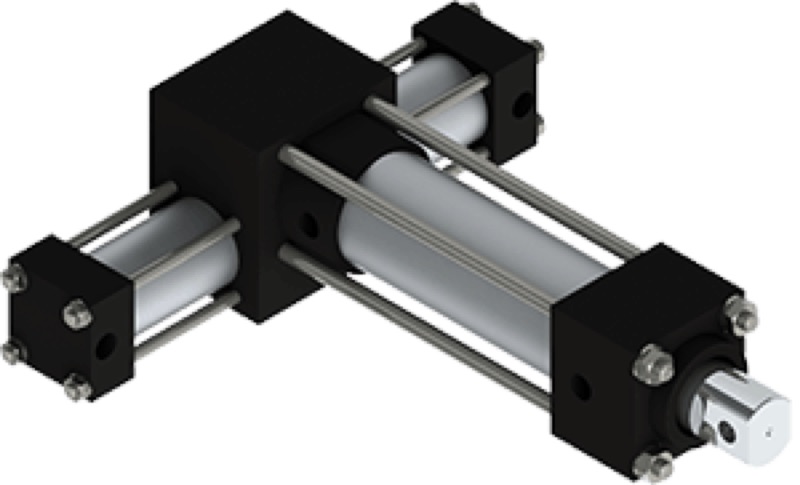

PA2 Multi-Motion Actuator

34 in-lb at 80 psi

Open configurator

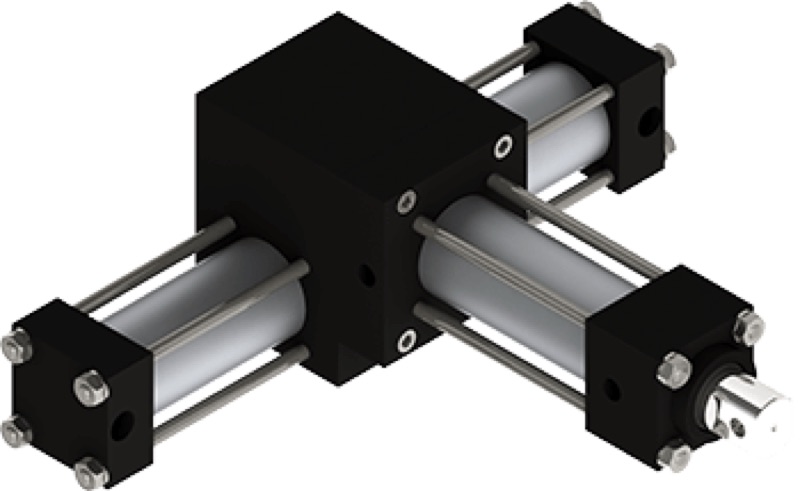

PA3

PA3 Multi-Motion Actuator

113 in-lb at 80 psi

Open configurator

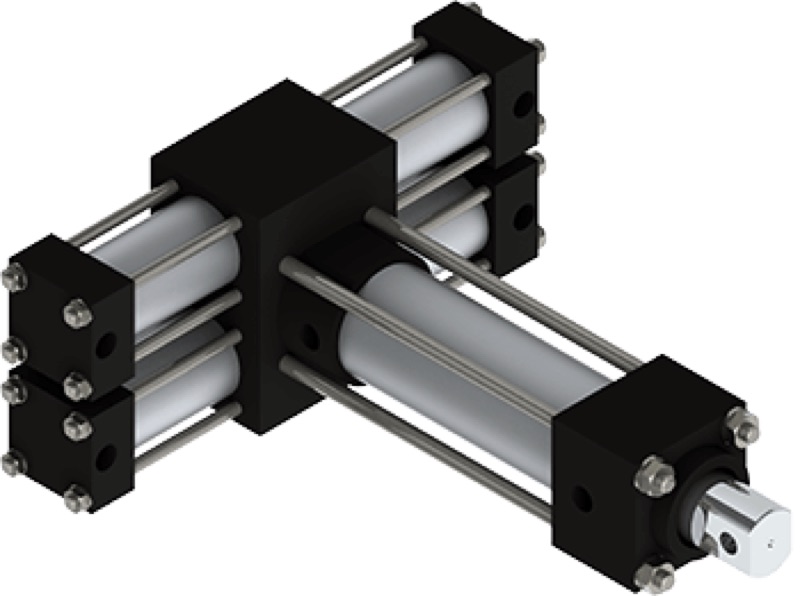

PA22

PA22 Dual-Rack Multi-Motion Actuator

73 in-lb at 80 psi

Open configurator

PA32

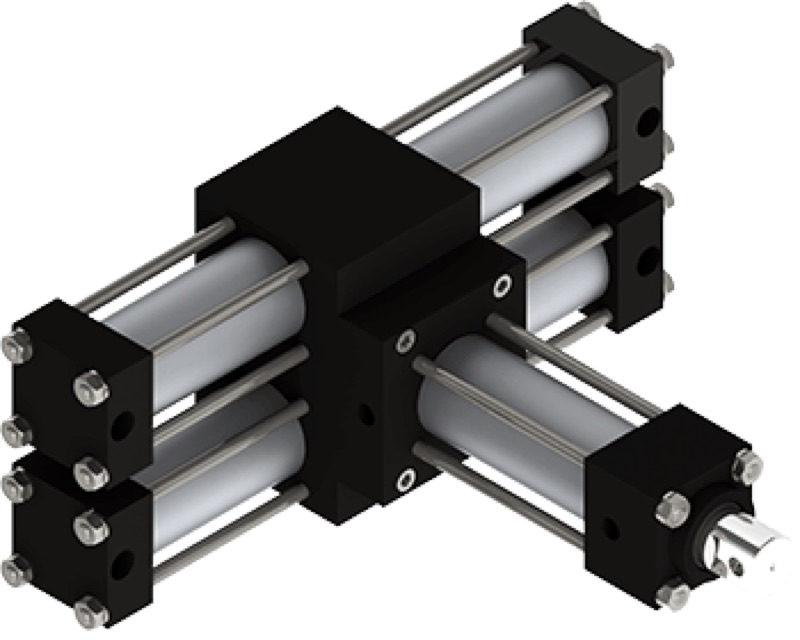

PA32 Dual-Rack Multi-Motion Actuator

223 in-lb at 80 psi

Open configurator

One unit gives linear motion and indexing rotary motion.

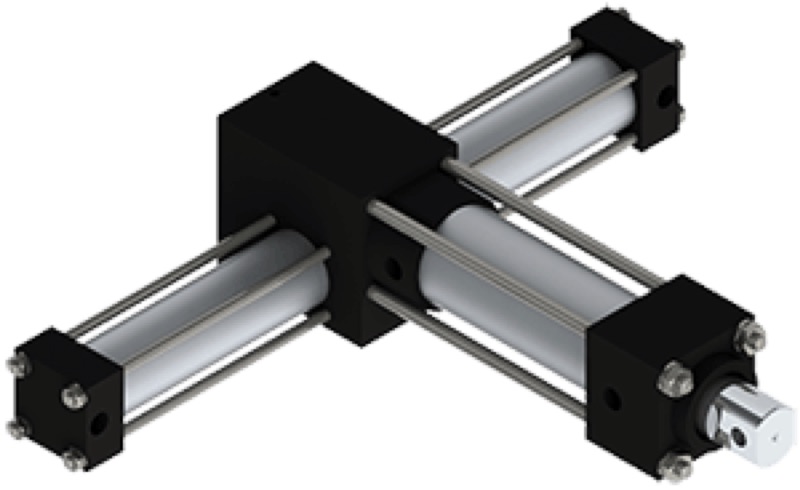

PX2

PX2 Nitpicker Actuator

39 in-lb at 80 psi

Open configurator

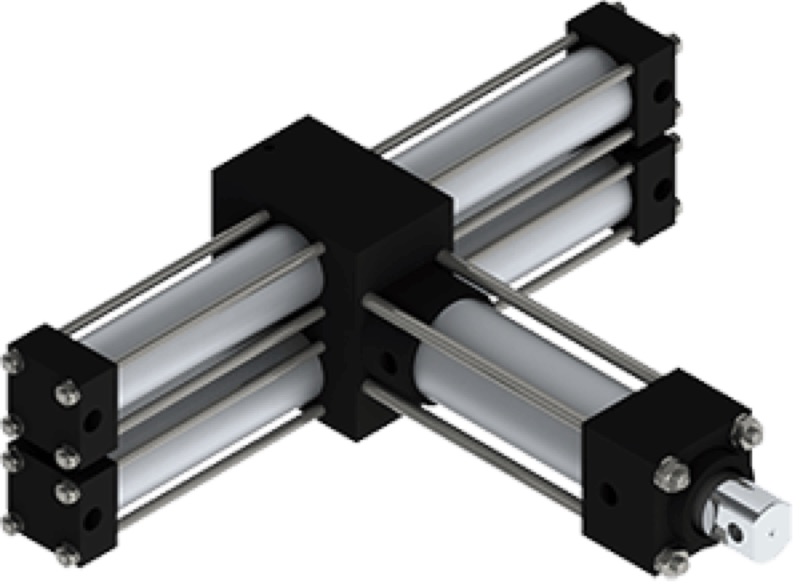

PX22

PX22 Dual-Rack Nitpicker Actuator

68 in-lb · 75 psi max

Open configurator

Use the SMA to attach tooling, fixtures, or machine parts to an actuator shaft.

SMA

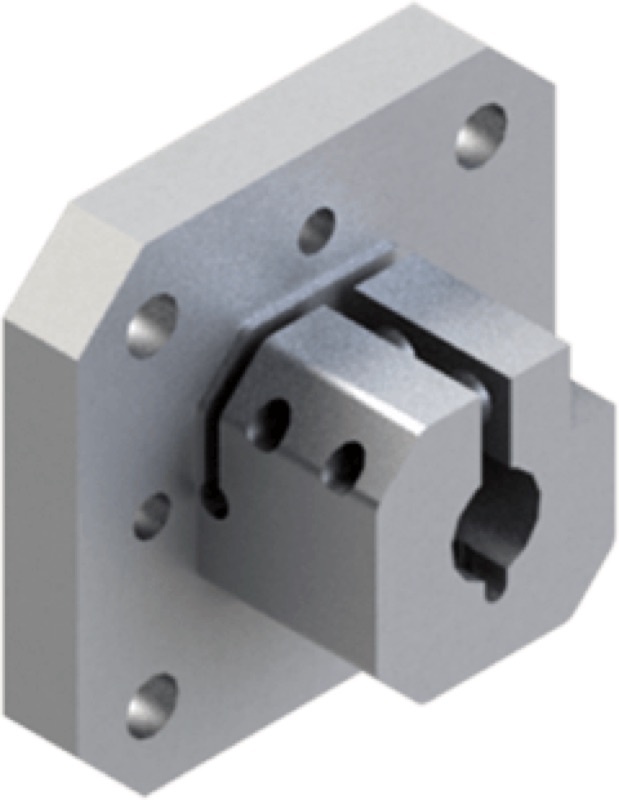

SMA Shaft Mounting Adapter

Clear anodized aluminum

Open configurator
