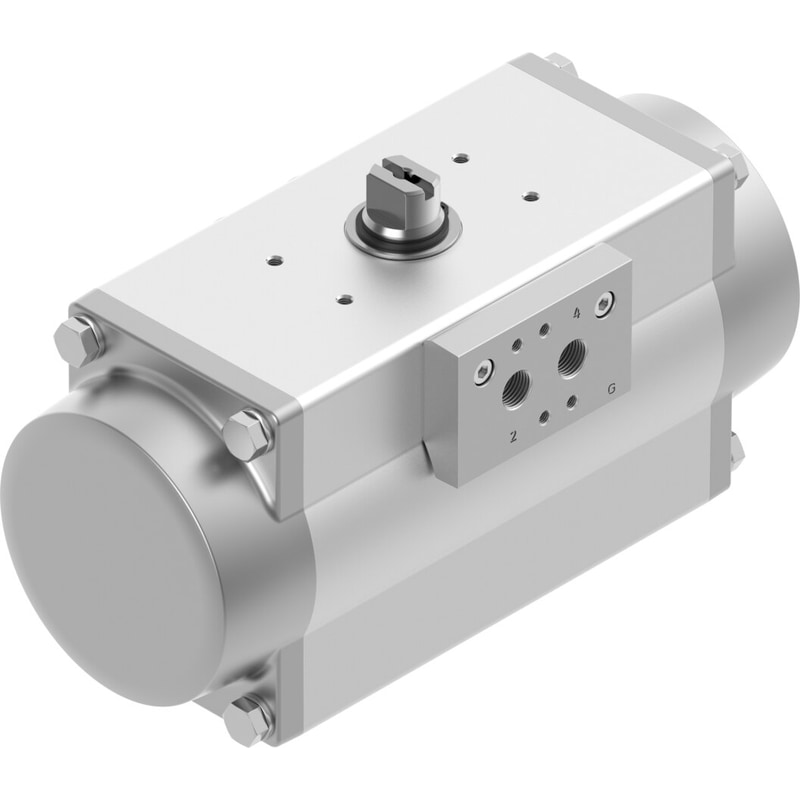

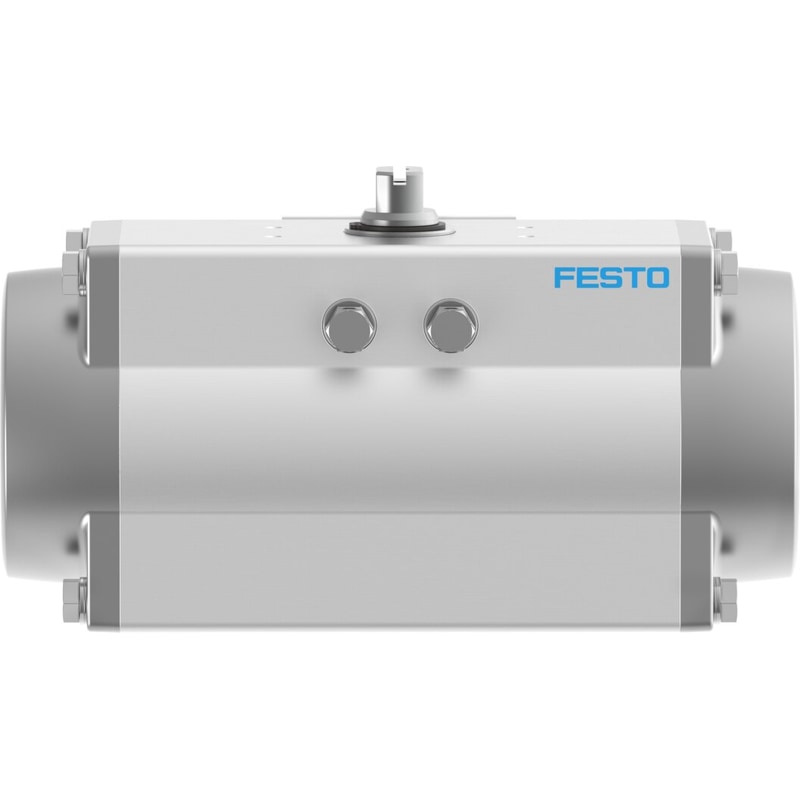

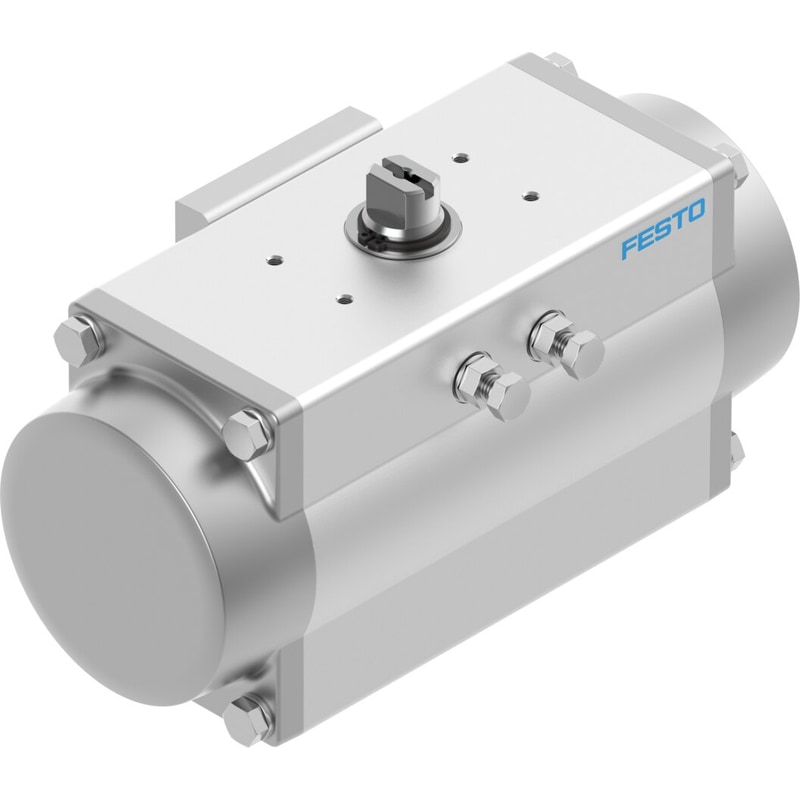

Name: Quarter turn actuator DFPD-120-RP-90-RS60-F0507
Brand: Festo
SKU: 8048134
Availability: InStock

Quarter turn actuator DFPD-120-RP-90-RS60-F0507

$403.46

SKU: 8048134
UNSPSC: 31251504
GTIN: 4052568288006

semi-rotary drive DFPD-120-RP-90-RS60-F0507 Size of actuator=120, Flange hole pattern=F0507, Swivel angle=90 deg, End-position adjustment range at 0°=-5 – 5 deg, End-position adjustment range at 90°=-5 – 5 deg

Size of actuator	120
Flange hole pattern	F0507
Swivel angle	90 deg
End-position adjustment range at 0°	‘-5 … 5 deg
End-position adjustment range at 90°	‘-5 … 5 deg
Shaft connection depth	19.3 mm
Fitting connection conforms to standard	ISO 5211
Cushioning	No cushioning
Assembly position	Any
Mode of operation	single-acting
Design structure	Rack and pinion
Position detection	Optical
Closing direction	right-closing

Weight	13.073412 lbs
Dimensions	10.23622 × 6.102362 × 5.11811 in
Size of valve actuator	120
Flange hole pattern	F0507
Swivel angle	90 deg
End-position adjusting range at 0°	-5 deg … 5 deg
End-position adjusting range at nominal swivel angle	-5 deg … 5 deg
Depth shaft connection	19 mm
Standard connection for valve	ISO 5211
Mounting position	Any
Mode of operation	Single-acting
Structural design	Gear rack/pinion
Closing direction	Clockwise closing
Symbol	00991266
Valve connection conforms to standard	VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to standard	VDI/VDE 3845 size AA 1
Devices type according to VDMA 66413	Safety device
Safety function	The safety function consists of the actuator switching to the defined safety switching position when the compressed air is switched off and the spring chamber is exhausted. This switching movement is achieved through the spring force of the spring assembl
Safety integrity level (SIL)	Up to SIL 2 low demand mode, up to SIL 3 in a redundant architecture, up to SIL 1 high demand mode
Certified for safety function to ISO 13849 and IEC 61508 (SIL)	Product can be used in safety-related parts of control systems up to SIL 2, low demand, Product can be used in safety-related parts of control systems up to SIL 1, high demand, up to SIL 3 in a redundant architecture
Burst pressure	24 bar
Operating pressure	29 psi … 116 psi
Nominal operating pressure	87 psi
Maritime classification	See certificate
CE marking (see declaration of conformity)	as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity)	acc. to UK EX instructions
Explosion protection certification outside the EU	EPL Db (GB), EPL Gb (GB)
Explosion prevention and protection	Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
Certificate issuing authority	DNV TAP00001CE, TÜV Rheinland 968/V 1106.01/2023
ATEX category gas	II 2G
ATEX category for dust	II 2D
Type of ignition protection for gas	Ex h IIC T4 Gb X
Type of (ignition) protection for dust	Ex h IIIC T105°C Db X
Explosive ambient temperature	-20°C <= Ta <= +80°C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Dew point min. 10 °C below the ambient temperature and temperature of medium, Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-20 °C … 60 °C
Ambient temperature	-20 °C … 80 °C
Torque at nominal operating pressure and 0° swivel angle	86 Nm
Torque at nominal operating pressure and 90° swivel angle	44.8 Nm
Note about the torque	The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
Spring return torque at 0° swivel angle	42.1 Nm
Spring return torque with 90° swivel angle	83.3 Nm
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°	4.3 l
Product weight	5736 g
Shaft connection	T17
Pneumatic connection	G1/4
Note on materials	RoHS-compliant
Material of sub-base	Wrought aluminum alloy, anodized
Cover material	Die-cast aluminum, coated
Seals material	NBR
Material of spring	Spring steel
Housing material	Aluminum, anodized
Material of piston	Die-cast aluminum
Material of bearing	POM
Cam material	High-alloy stainless steel
Material of screws	High-alloy stainless steel
Shaft material	Steel, nickel-plated
