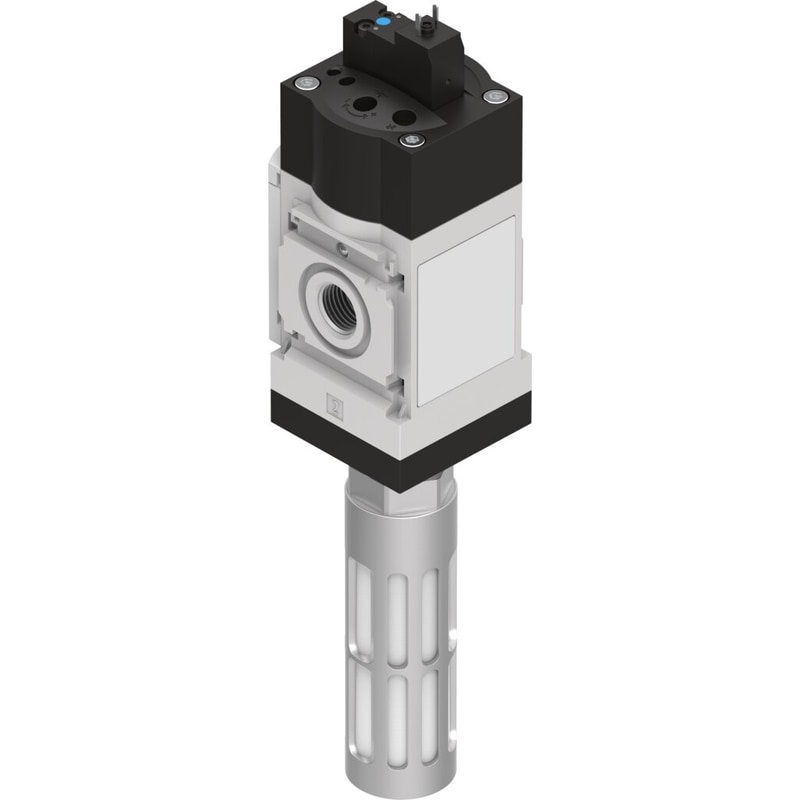

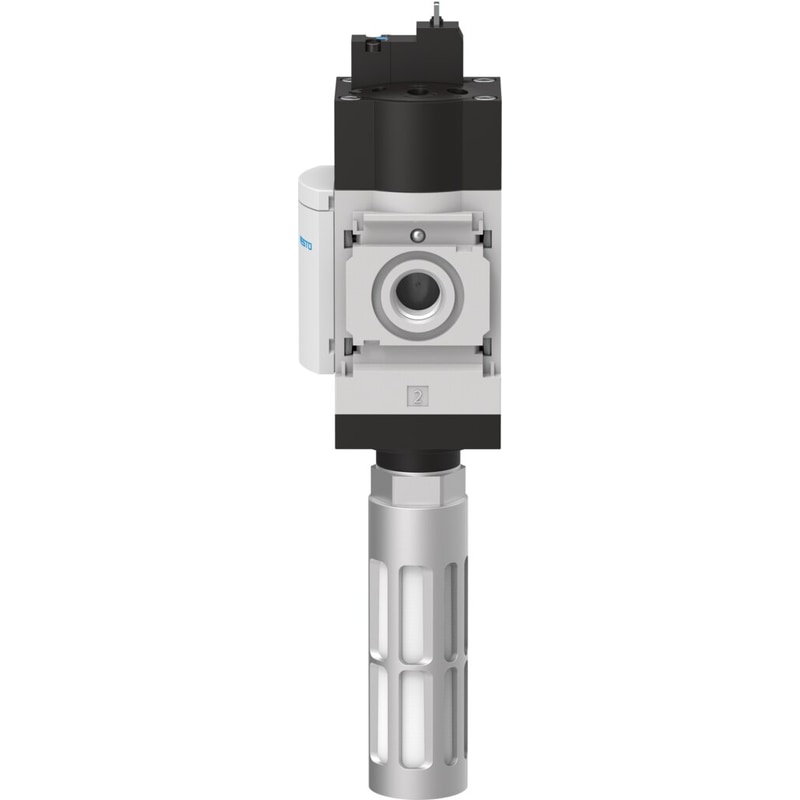

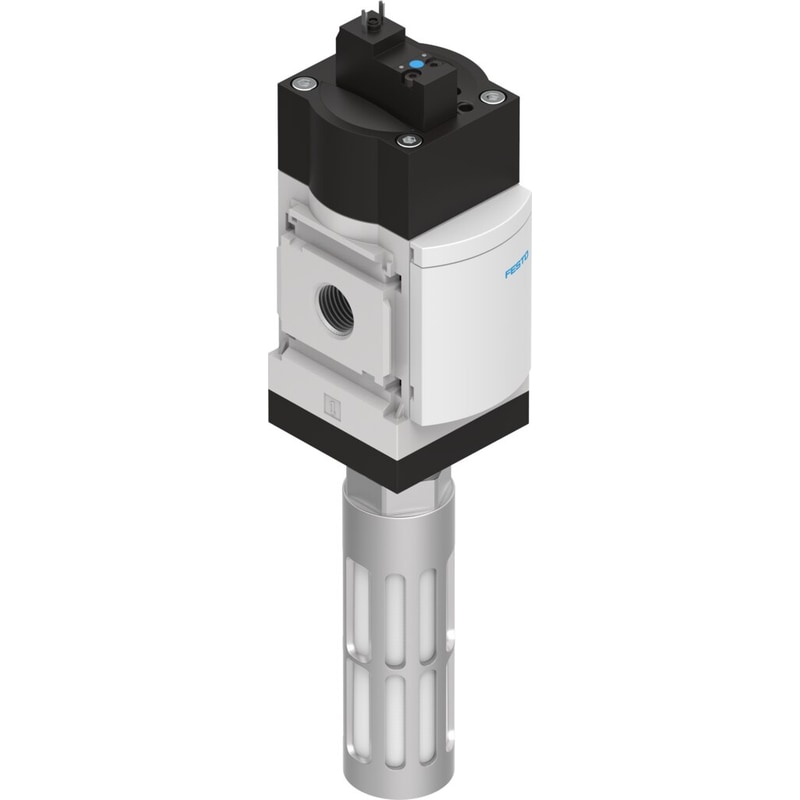

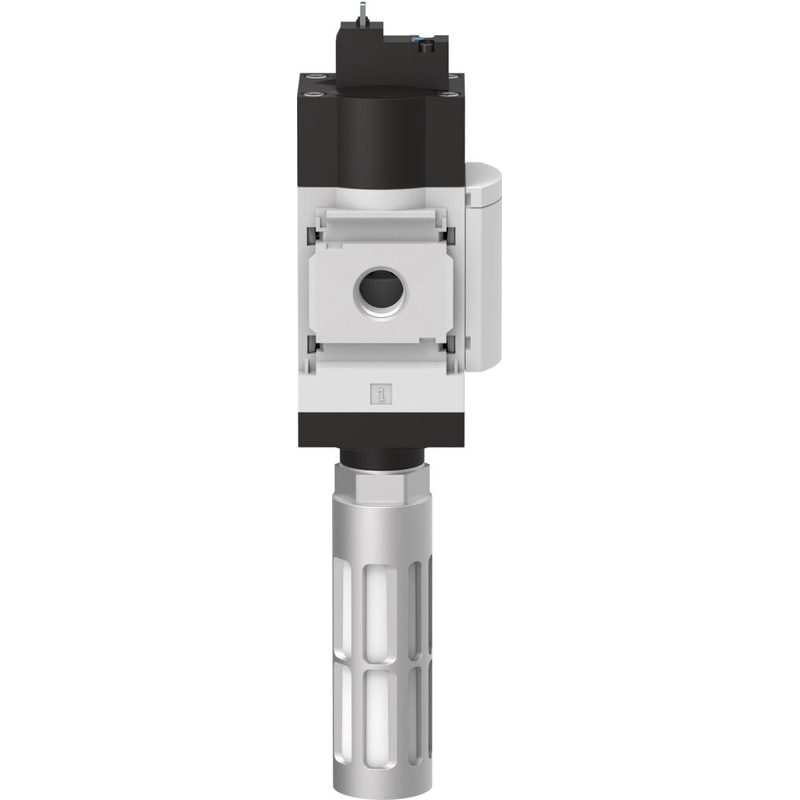

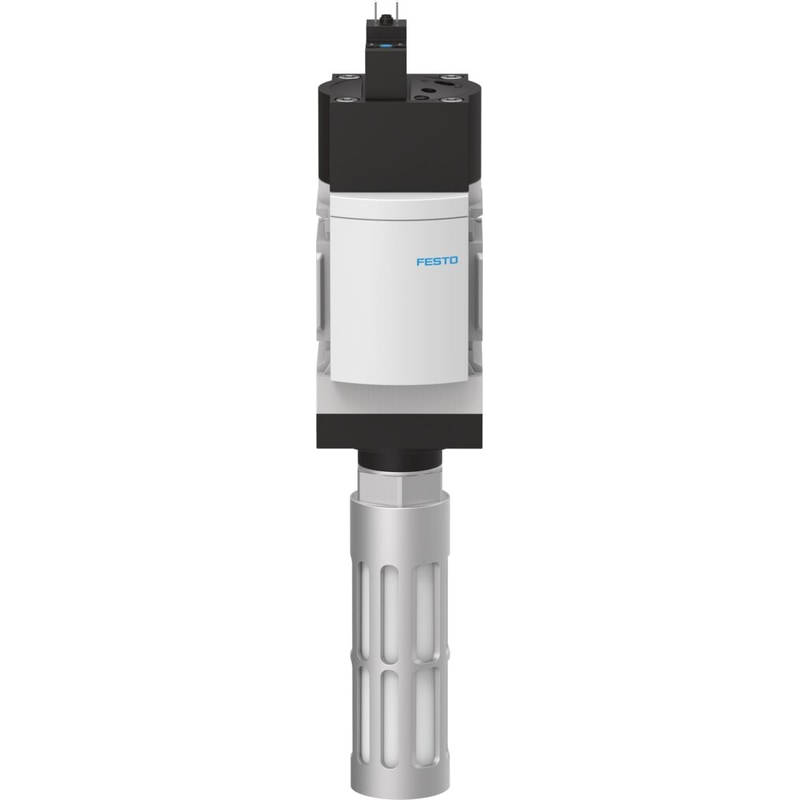

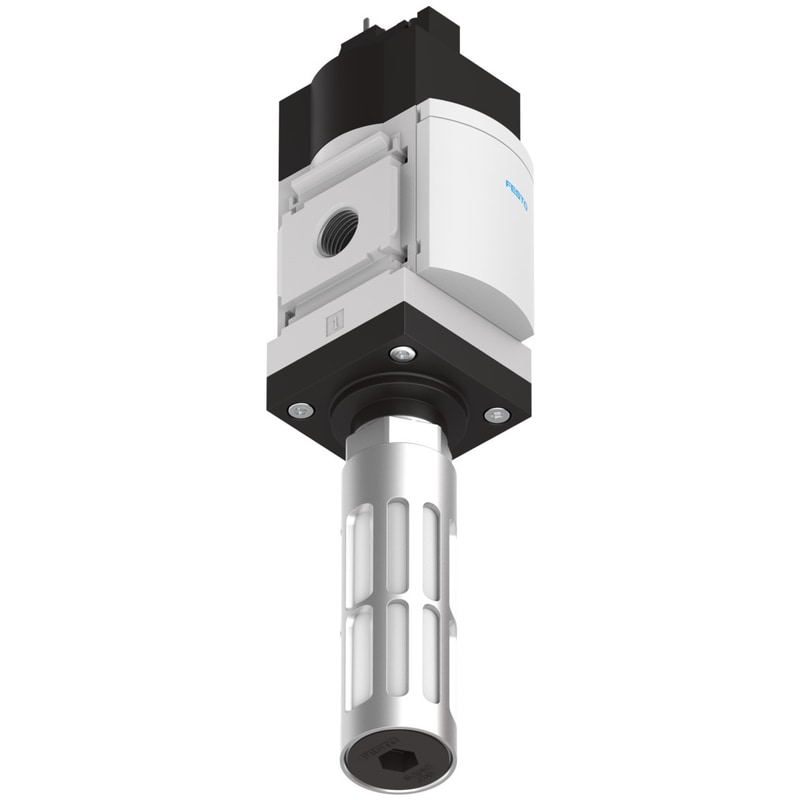

Soft start/quick exhaust valve MS6-SV-1/2-C-10V24-S

Name: Soft start/quick exhaust valve MS6-SV-1/2-C-10V24-S
Brand: Festo
SKU: 8001469
Availability: InStock

$313.48

SKU: 8001469
UNSPSC: 40141603
GTIN: 4052568256296

SKU: 8001469 Category: MS6-SV Tag: Festo-Fast

MS-SV_ENUS.PDF

Brand: Festo

soft-start/quick exhaust valve MS6-SV-1/2-C-10V24-S For the soft-start and quick exhaust of system components. Series=MS, Size=6, Grid dimension=62 mm, Safety function=Exhausting, Performance level (PL)=Exhausting / up to Category 1, Performance Level c

Series	MS
Size	6
Grid dimension	62 mm
Safety function	ExhaustingPrevention of unexpected start-up (pressurisation)
Performance level (PL)	Exhausting/category 1, Performance Level cPrevention of unexpected start-up (pressurisation)/category 1, Performance Level e
Note on forced dynamisation	Switching frequency min. 1/month
Design structure	Piston slide
Freedom from overlap	Yes
Type of actuation	electrical
Pilot air supply	Internal
Sealing principle	soft
Exhaust-air function	not throttleable
Manual override	On pilot-solenoid valves: non-detenting with pressure build-up and exhaust valve: detenting, self-resetting

Weight	2.586022 lbs
Dimensions	11.181102 × 7.598425 × 5.511811 in
Series	MS
Size	6
Width dimension	62 mm
Safety function	Exhausting, Prevention of unexpected start-up (pressurization)
Performance Level (PL)	Exhaust/category 1, performance level c, Avoidance of unexpected start-up (pressurization)/category 1, performance level c
Note on forced dynamization	Switching frequency at least once a month
Structural design	Piston gate valve
Lap	Overlap
Actuation type	Electrical
Pilot air supply port	Internal
Sealing principle	Soft
Exhaust air function	Without flow control option
Manual override	At pilot control air solenoid valve: non-detenting, at soft start/quick exhaust valve: detenting, self-resetting
Reset method	Mechanical spring
Type of control	Pilot-controlled

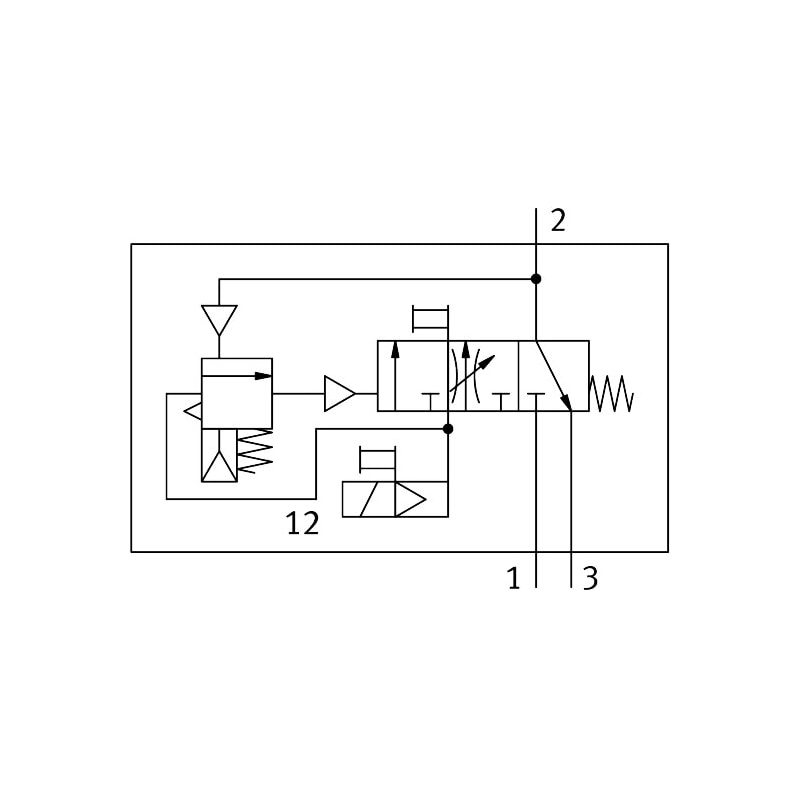

Symbol	00995813
Valve Function	3/2, closed, monostable \| Pressure build-up function
Operating pressure	3 bar … 10 bar
C value	23.2 l/sbar
b-value	0.4
Normal nominal flow rate (normalized to DIN 1343)	5700 l/min
Standard flow rate exhaust 6-> 0 bar	7600 l/min
Switching time off	65 ms
On switching time	370 ms
Duty cycle	100%
Coil characteristics	24 V DC: 1.8 W
Permissible voltage fluctuations	+/- 10 %
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
Note on materials	RoHS-compliant
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Degree of protection	IP65, With plug socket
Temperature of medium	0 °C … 60 °C
Ambient temperature	0 °C … 60 °C
Storage temperature	-10 °C … 60 °C
Shock resistance	Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Vibration resistance	Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
CE marking (see declaration of conformity)	As per EU EMC directive, as per EU machinery directive, As per EU RoHS directive
UKCA marking (see declaration of conformity)	To UK instructions for EMC, To UK instructions for machines, To UK RoHS instructions
For use in the food industry	See supplementary material information
Type of mounting	Optionally: \| Line installation \| With accessories
Mounting position	Any
Product weight	1006 g
Pneumatic connection 1	G1/2
Pneumatic connection 2	G1/2
Pneumatic connection 3	G3/4
Electrical connection	2-pin \| Form C \| Plug \| as per EN 175301-803
Housing material	Die-cast aluminum
Seals material	NBR
Piston rod material	High-alloy stainless steel
