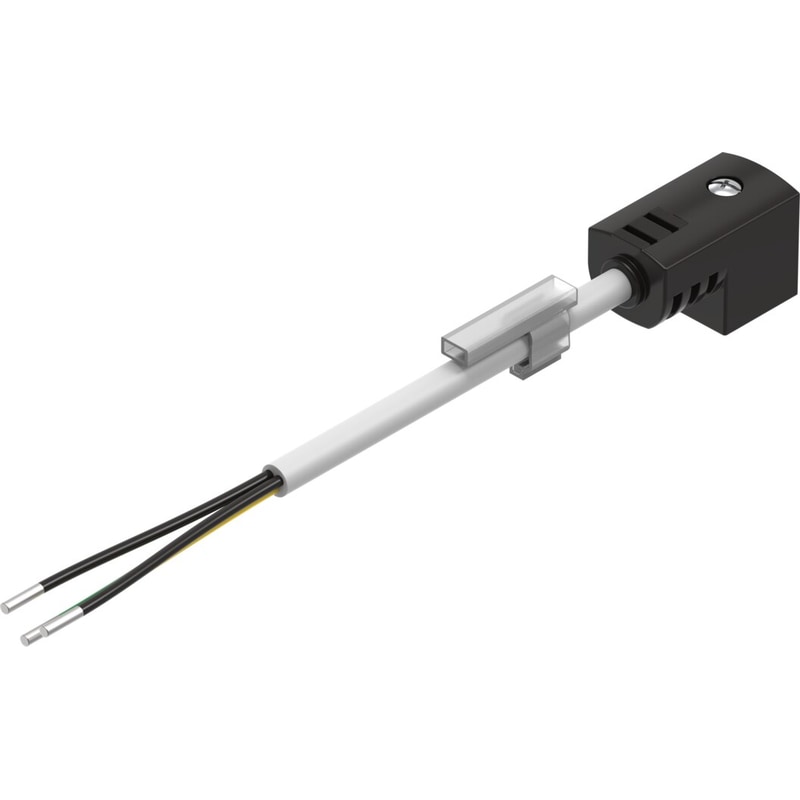

| Type code | KMEB |
|---|---|
| Switching position indication | LED |
| Type of mounting | On air solenoid valve with M2.5 central screw |
| Product weight | 125 g |
| Electrical connection | as per DIN EN 175301-803Form C3-pinSocket, angled |
| Nominal operating voltage DC | 24 V |
| Protective earth connection | Available |
| Cable length | 2.5 m |
| Cable diameter | 5.2 mm |
| Cable design | 3 x 0.5 mm² |
| Degree of protection | IP65as per IEC 60529 |
| Ambient temperature | -20 °C … 80 °C |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | PA66-GF30 |
| Material of pin contacts | Bronze |
| Mounting position | Any |
| Weight | 0.27765 lbs |
|---|---|
| Dimensions | 6.299213 × 6.299213 × 0.787402 in |
| Cable length | 2.5 m |
