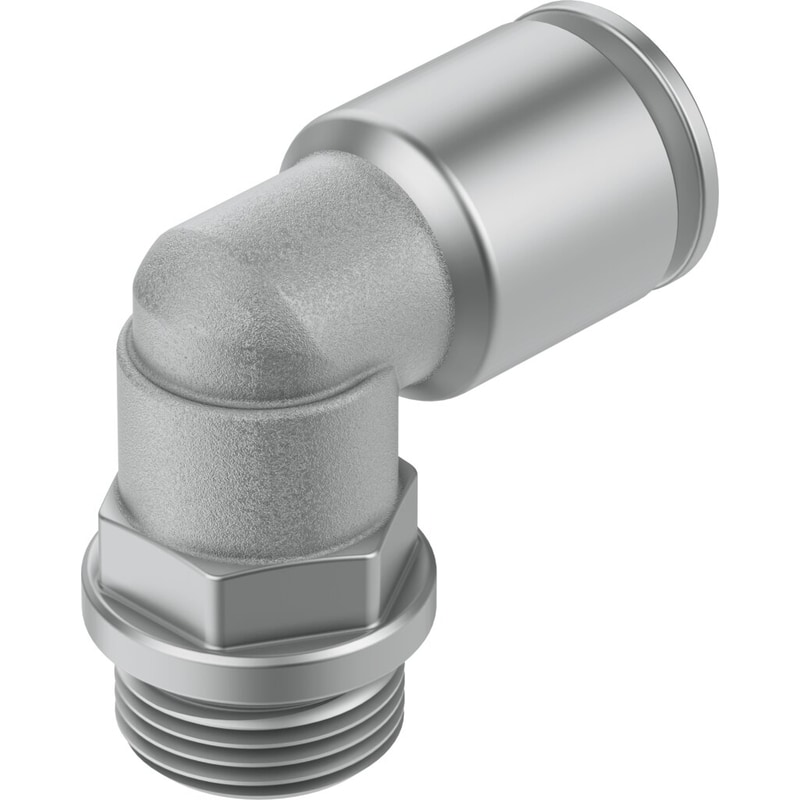

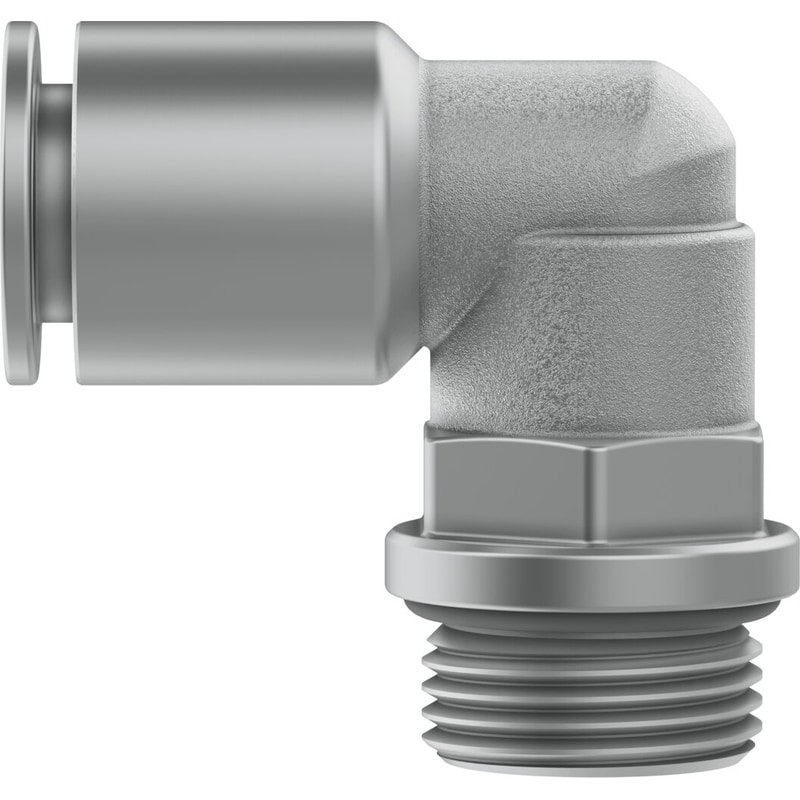

push-in L-fitting NPQH-L-G14-Q8-P10 Size=Standard, Nominal size=5,5 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=10
Fitting Type | Male Elbow |
---|---|
Size | Standard |
Nominal size | 5.5 mm |
Type of seal on screw-in stud | Sealing ring |
Assembly position | Any |
Container size | 10 |
Design structure | Push/pull principle |
Operating pressure complete temperature range | ‘-0.95 … 20 bar |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance classification CRCÂ | 3 – High corrosion stress |
Food-safe | See Supplementary material information |
Ambient temperature | 0 … 150 °C |
Max. tightening torque | 15 Nm |
Product weight | 25.8 g |
connection 1Â | Male thread G1/4 |
connection 2Â | For tubing outside diameter 8 mm |
Materials note | Conforms to RoHS |
Material housing | Nickel-plated brass |
Material of threaded seal | FPM |
