| Type code | GRLA |
|---|---|
| Valve function | Exhaust air flow control non-return function |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Adjusting element | Slotted screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 340 l/min |
| Standard nominal flow rate in non-return direction | 260 l/min … 420 l/min |
| Ambient temperature | -10 °C … 60 °C |
| Certification | Germanischer Lloyd |
| Mounting position | Any |

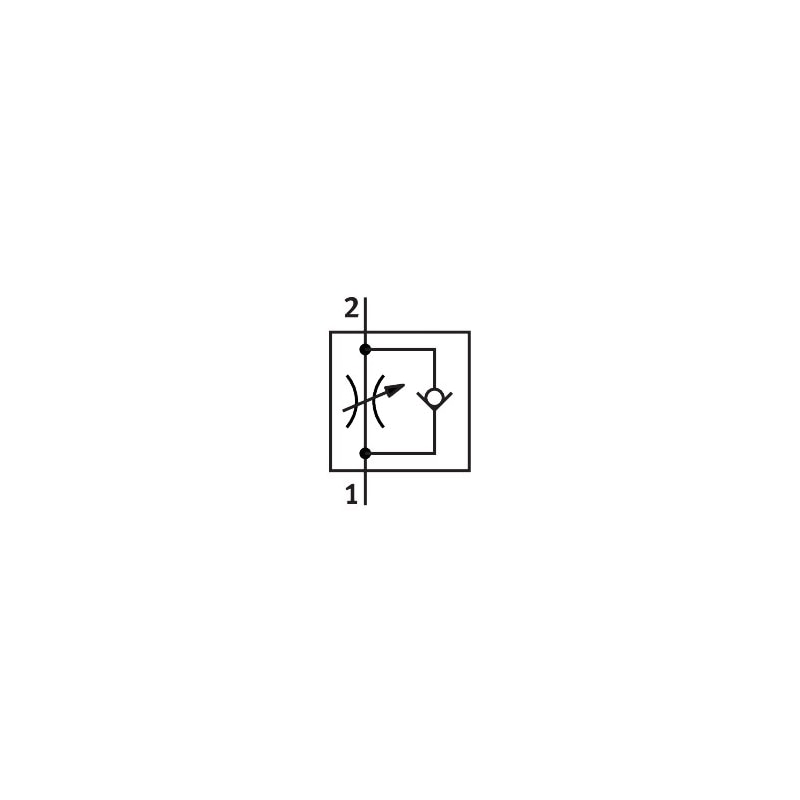

| Symbol | 991452 |
| Operating pressure for entire temperature range | 0.3 bar … 10 bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 615 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 470 l/min … 760 l/min |
| Explosion prevention and protection | Observe the information on the certificateZone 22 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX)Zone 2 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C … 60 °C |
| Max. tightening torque | 6 Nm |
| Product weight | 28 g |
| Material of screwed trunnion | Wrought aluminum alloy |
| Note on materials | RoHS-compliant |
| Material of adjusting screw | Brass |
| Swivel joint material | Die-cast zinc |
GRxA-GRxZ

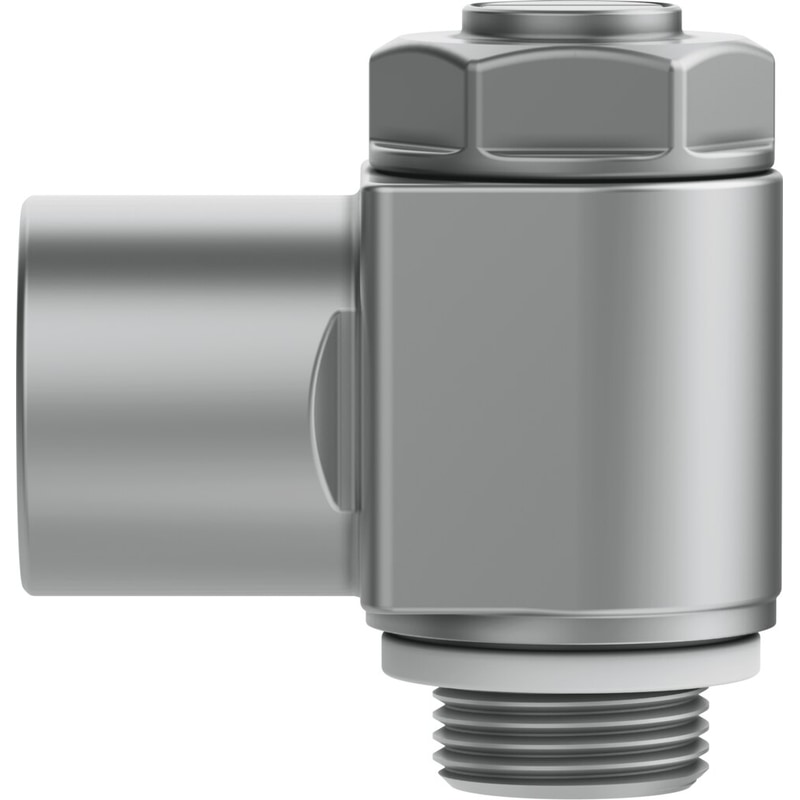

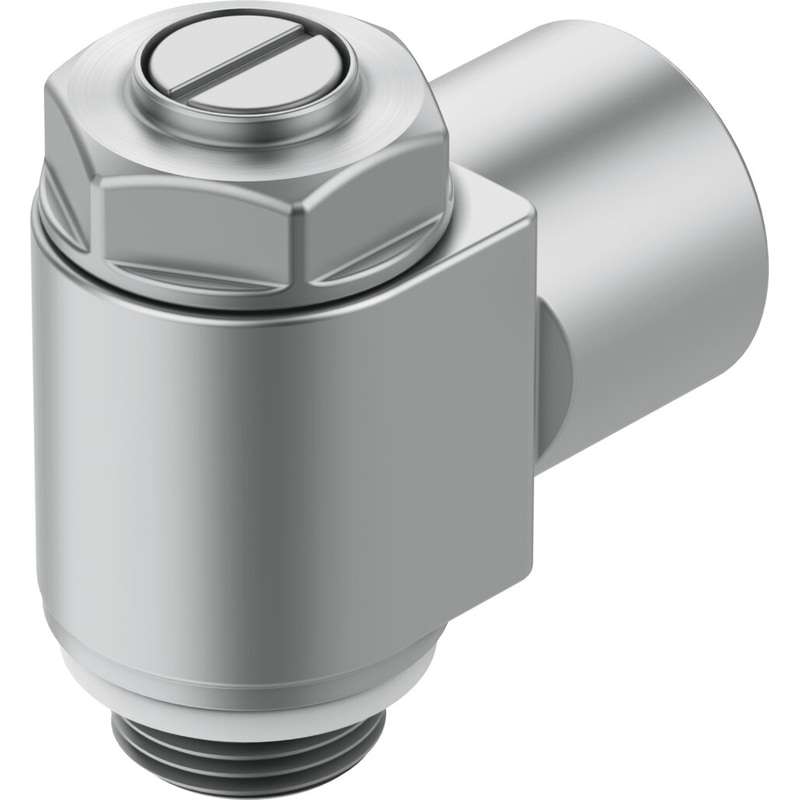

GRLA-1/8-B
$43.76
Tried-and-tested for precise setting of flow rate. Lightweight, compact and robust due to combination of plastic and metal. Available as ISO or NPT variant.
| Weight | 0.064772 lbs |
|---|---|
| Dimensions | 1.259843 × 1.259843 × 0.590551 in |
| Valve Function | Exhaust air one-way flow control function |
| Standard nominal flow rate in flow control direction | 340 l/min |
| Pneumatic connection, port 1 | G1/8 |
| Adjustment component | Slotted head screw |
