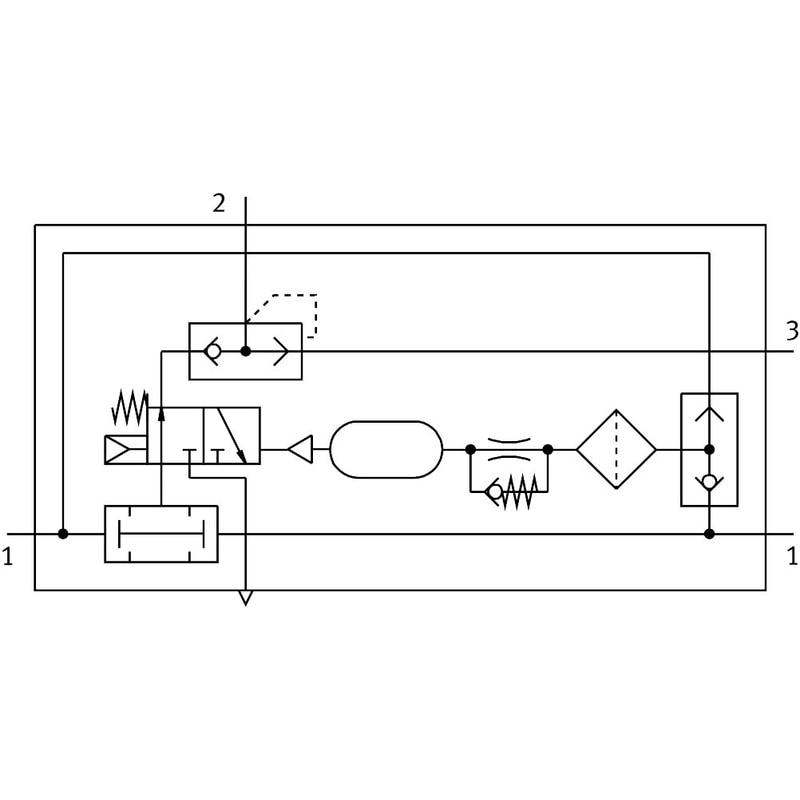

control block for two-hand start ZSB-1/8-B Nominal size=4 mm, Type of actuation=pneumatic, Assembly position=Any, Safety function=Two-hand operation, Performance level (PL)=Two-hand operation/Cat. 1, PLc
| Nominal size | 4 mm |
|---|---|
| Type of actuation | pneumatic |
| Assembly position | Any |
| Safety function | Two-hand operation |
| Performance level (PL)Â | Two-hand operation/Cat. 1, PLc |
| Operating pressure | 4 … 8 bar |
| Standard nominal flow rate | 50 l/min |
| Certificate issuing department | IFA 1201046 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| CE mark (see declaration of conformity)Â | to EU directive for machinery |
| Shock resistance | Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
