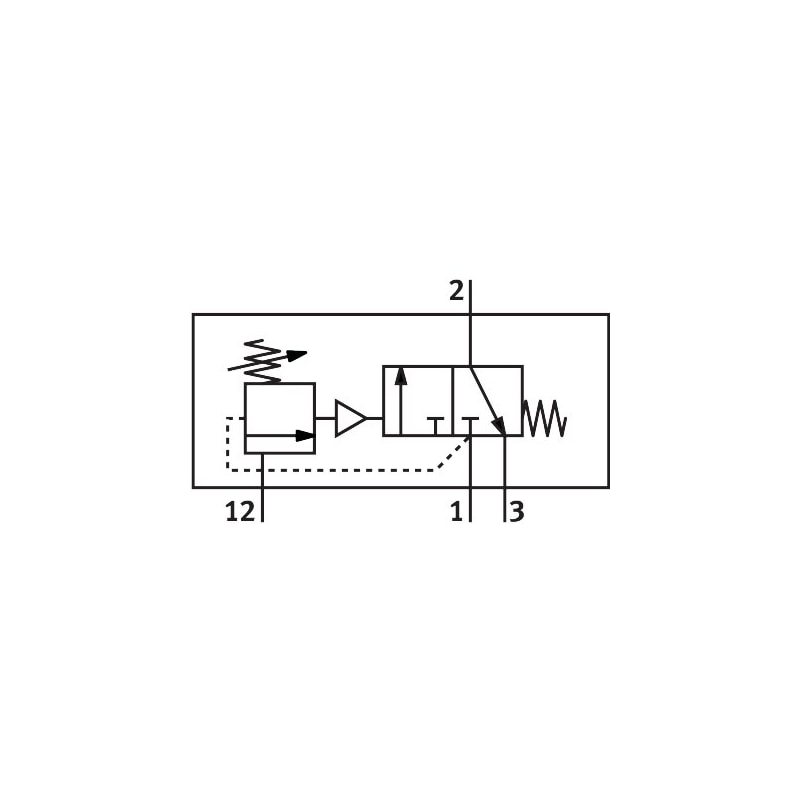

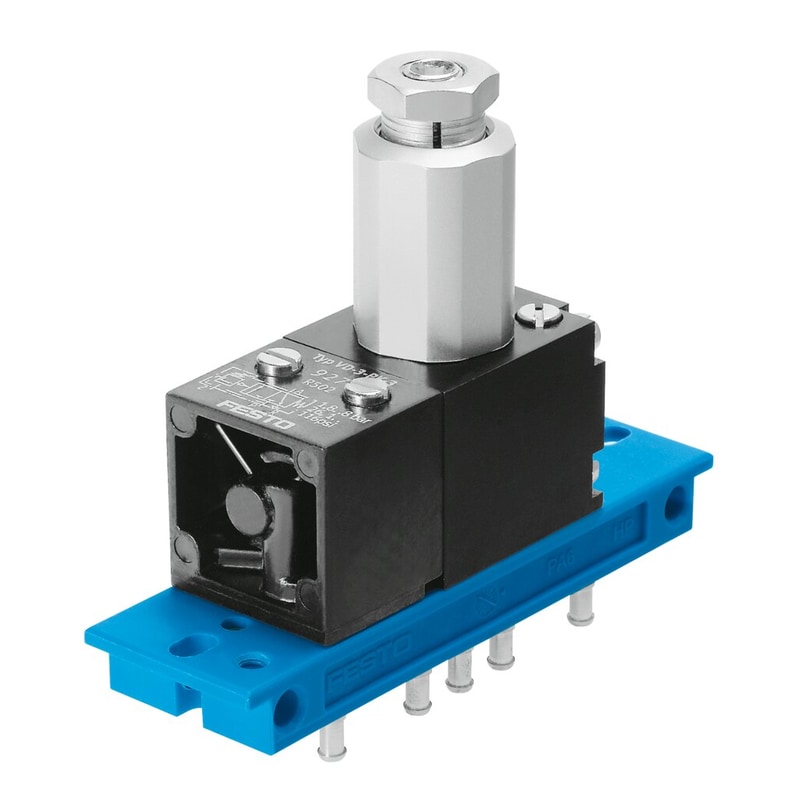

pressure sequence valve VD-3-PK-3 With sub-base 2n for tube ND 3 mm. Standard nominal flow rate=100 l/min, Operating pressure=1,8 – 8 bar, Nominal size=2,5 mm, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Standard nominal flow rate | 100 l/min |
|---|---|
| Operating pressure | 1.8 … 8 bar |
| Nominal size | 2.5 mm |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 0 – No corrosion stress |
| Medium temperature | ‘-10 … 60 °C |
| Product weight | 220 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1Â | PK-3 |
| Pneumatic connection, port 2Â | PK-3 |
| Pneumatic connection, port 3Â | PK-3 |
