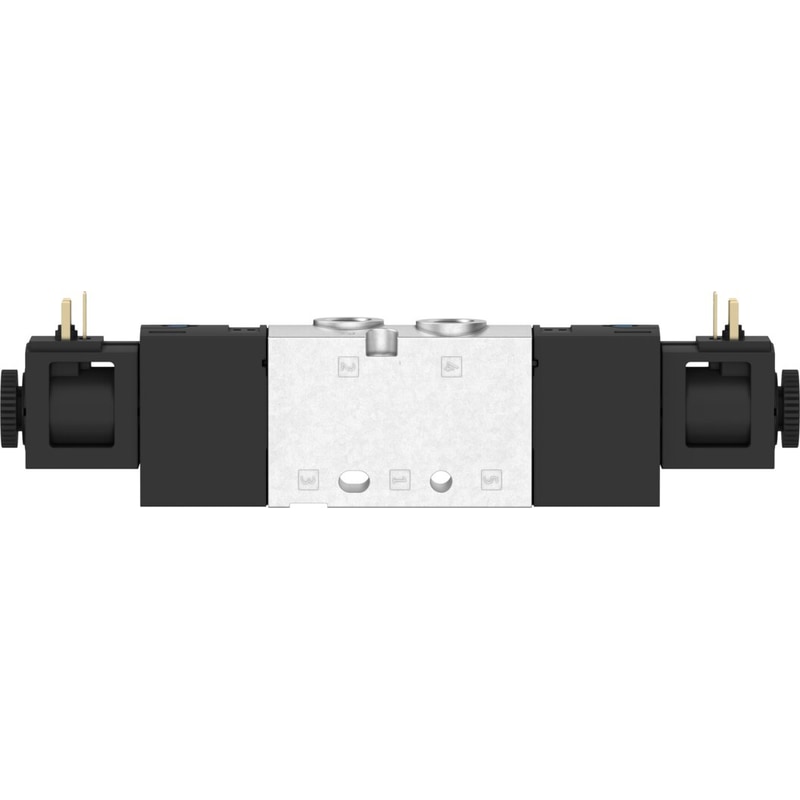

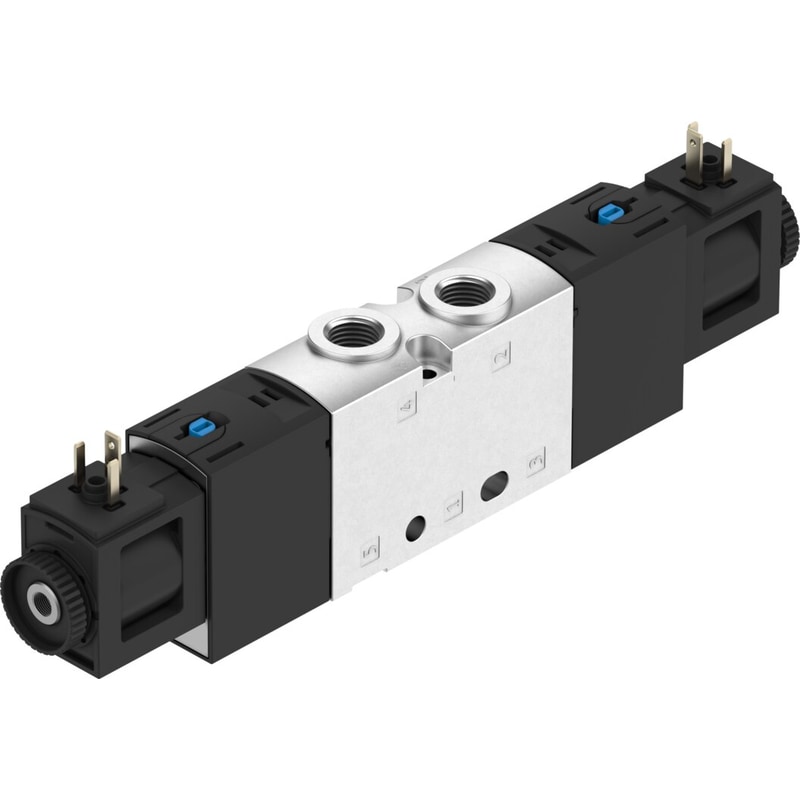

Robust solenoid valve with easy handling.
| Valve function | 5/3, exhausted |
|---|---|
| Material of screws | Steel, galvanized |
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 21 mm |
| Standard nominal flow rate | 600 l/min |
| Pneumatic working port | G1/8 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | as per IEC 60529With plug socketIP65 |
| Certification | c UL us – Recognized (OL) |
| Nominal width | 4.5 mm |
| Type code | VUVS |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Reversible |

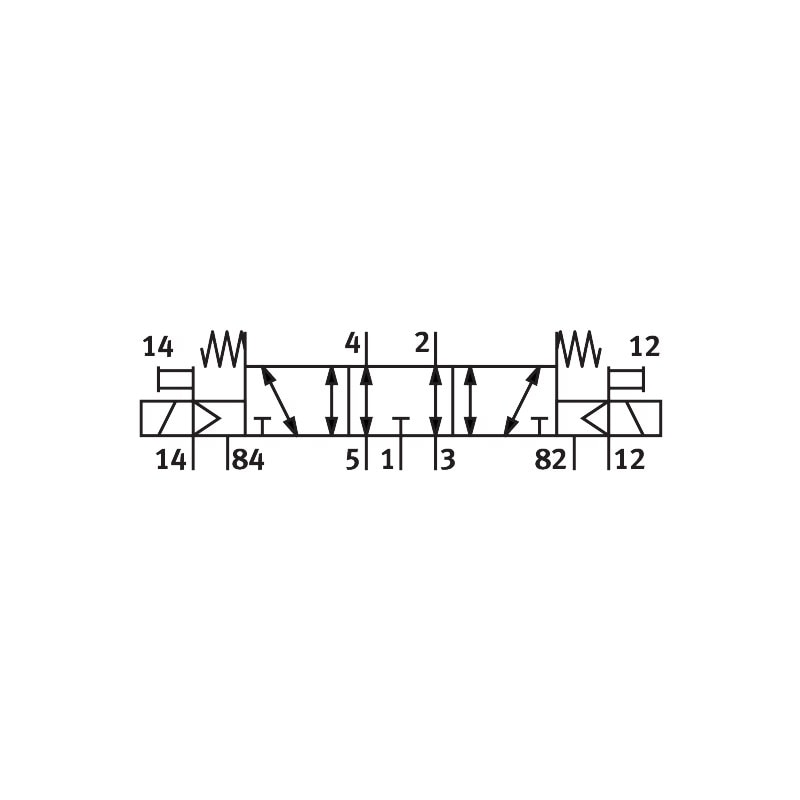

| Symbol | 00991032 |
| Pilot pressure | 2.5 bar … 10 bar |
| b-value | 0.35 |
| C value | 2.5 l/sbar |
| Switching time off | 44 ms |
| On switching time | 13 ms |
| Changeover time | 24 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1900 µs |
| Max. negative test pulse on 1 signal | 2700 µs |
| Coil characteristics | 24 V DC: 2.6 W |
