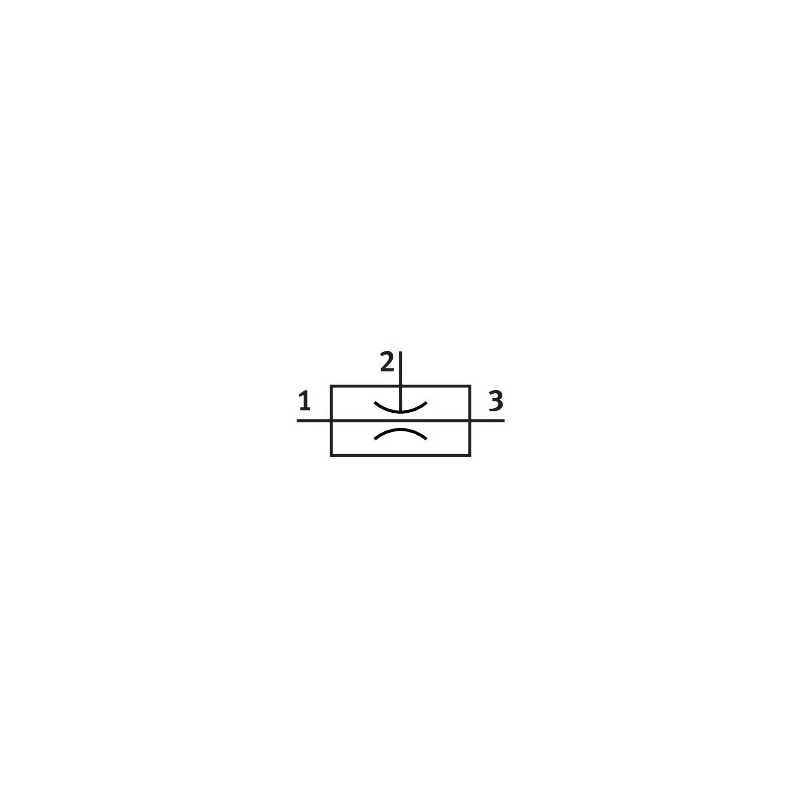

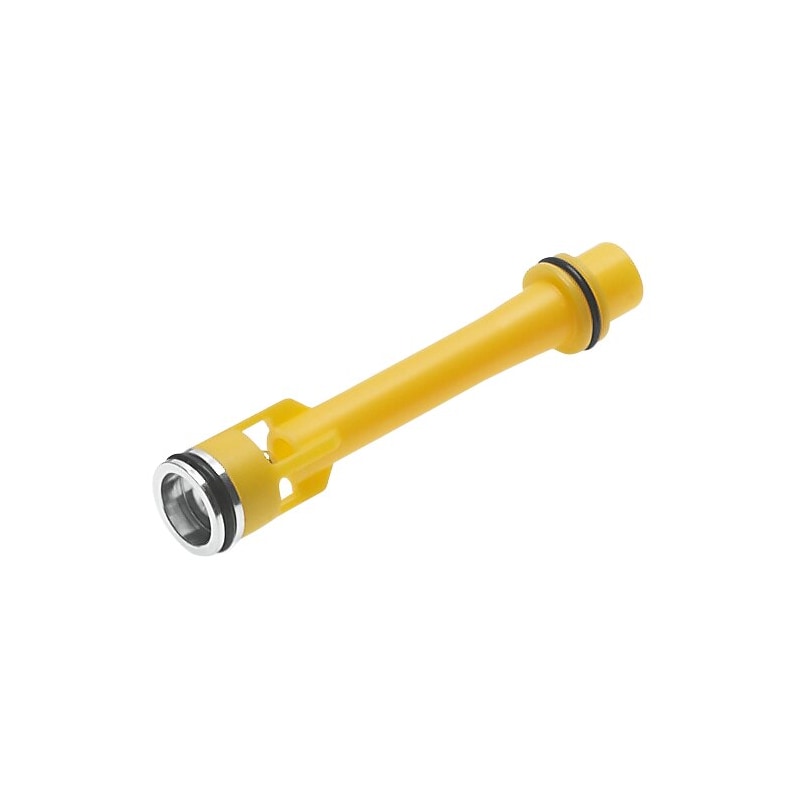

vacuum generator cartridge VN-14-H For VN vacuum generators, high vacuum. Nominal size, Laval nozzle=1,4 mm, Assembly position=Any, Ejector characteristic=(* Standard, * High vacuum), Operating pressure=1 – 8 bar, Operating pressure for max. vacuum=3,5 bar
| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | StandardHigh vacuum |
| Operating pressure | 1 … 8 bar |
| Operating pressure for max. vacuum | 3.5 bar |
| Max. vacuum | 0.92 |
| Nominal operating pressure | 6 bar |
| Max. suction rate with respect to atmosphere | 48.8 l/min |
| Air supply time at nominal operating pressure | 0.48 s |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Medium temperature | 0 … 60 °C |
