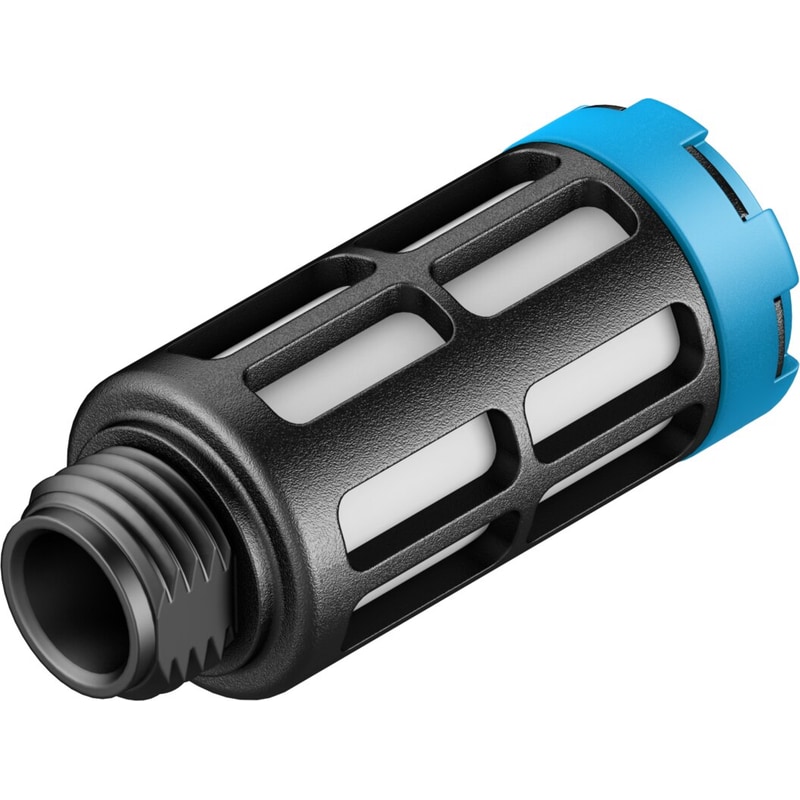

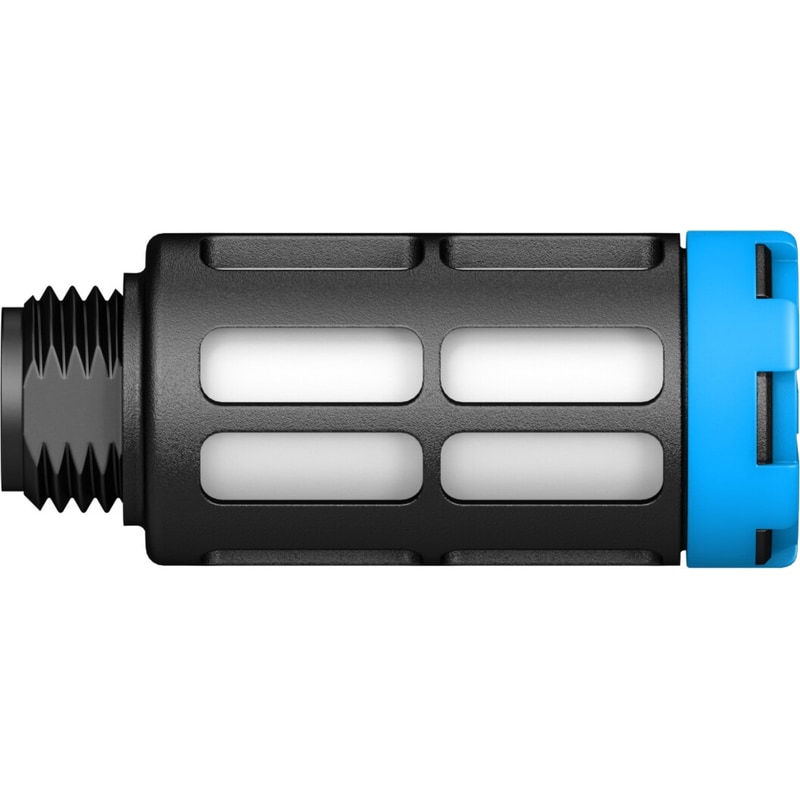

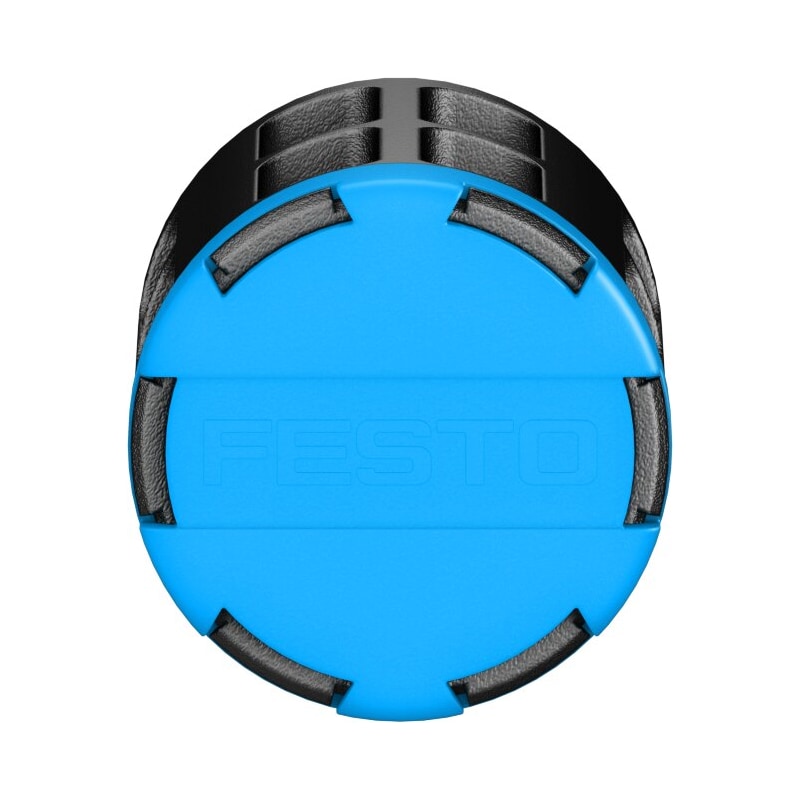

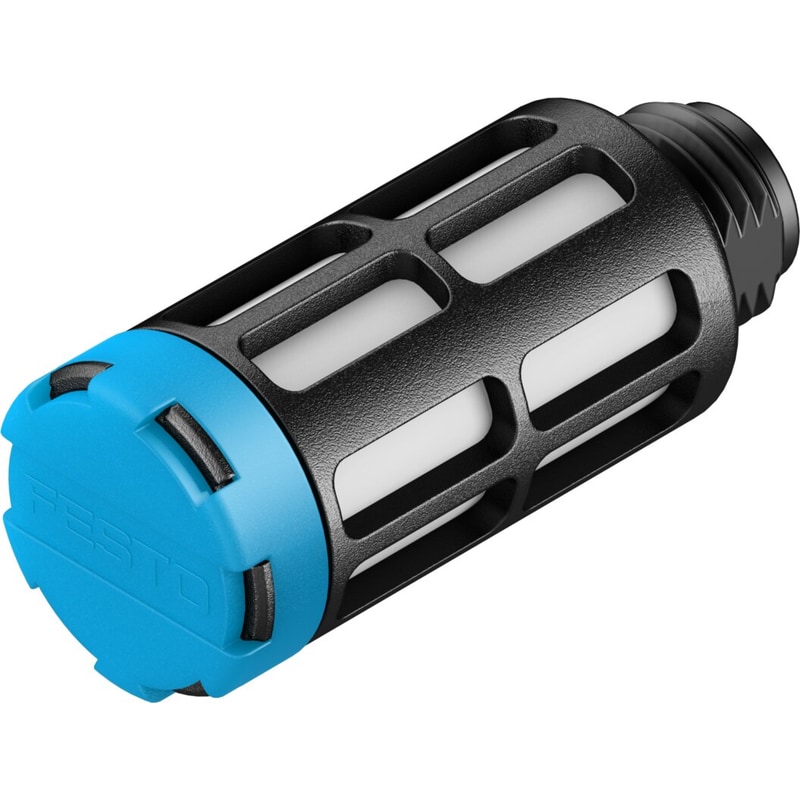

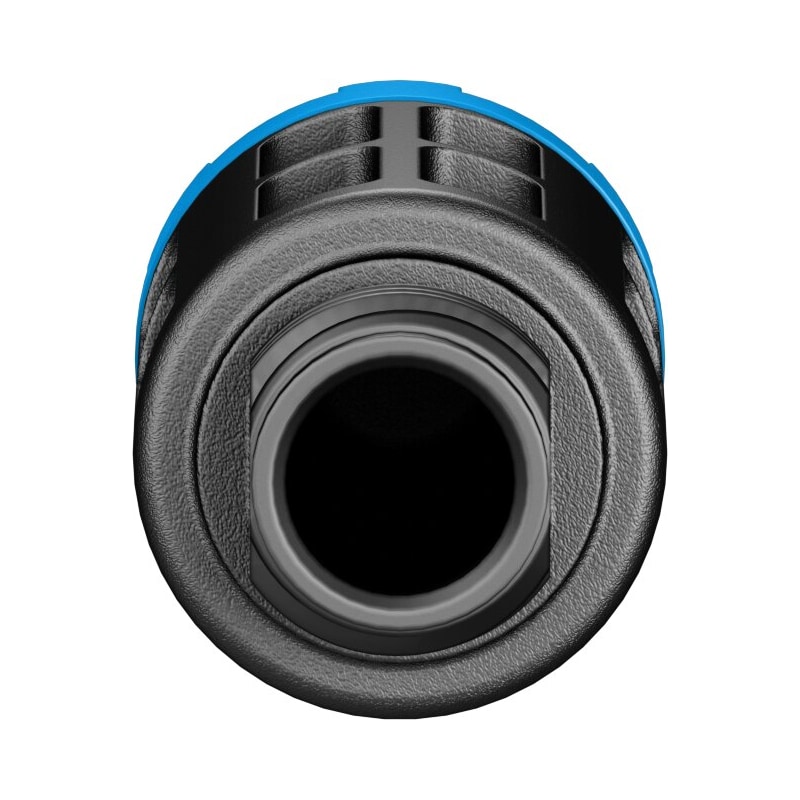

silencer U-1/8-50 For reducing noise and avoiding contamination at the exhaust ports of pneumatic components. Assembly position=Any, Container size=50, Operating pressure=0 – 10 bar, Flow rate to atmosphere=2050 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Assembly position | Any |
|---|---|
| Container size | 50 |
| Operating pressure | 0 … 10 bar |
| Flow rate to atmosphere | 2,050 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Sound pressure level | 77 dB(A) |
| Ambient temperature | ‘-10 … 70 °C |
| Pneumatic connection | G1/8 |
| Material of silencer insert | PE |
| Materials note | Free of copper and PTFEConforms to RoHS |
