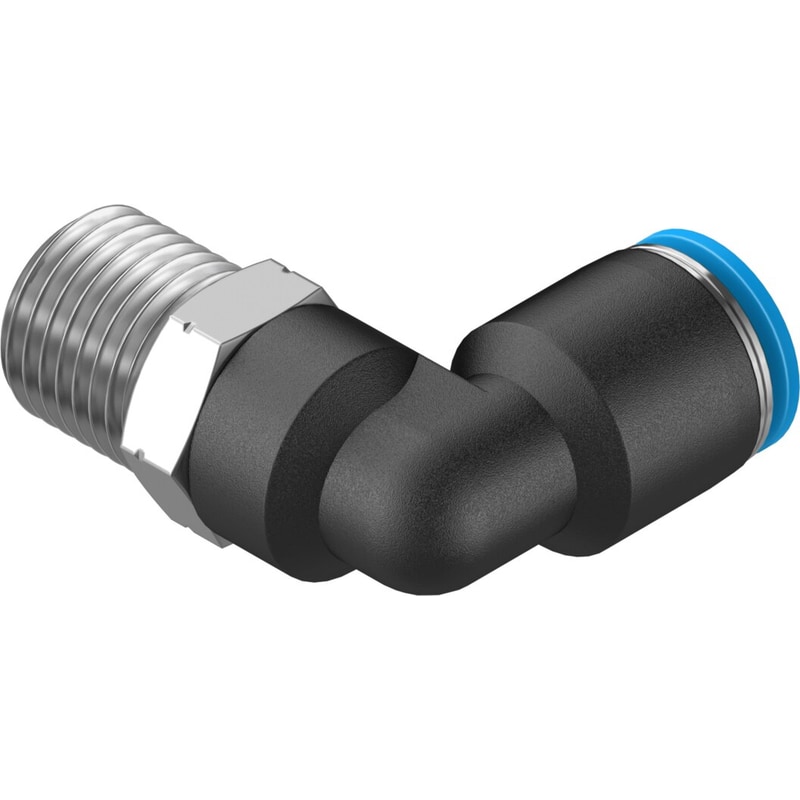

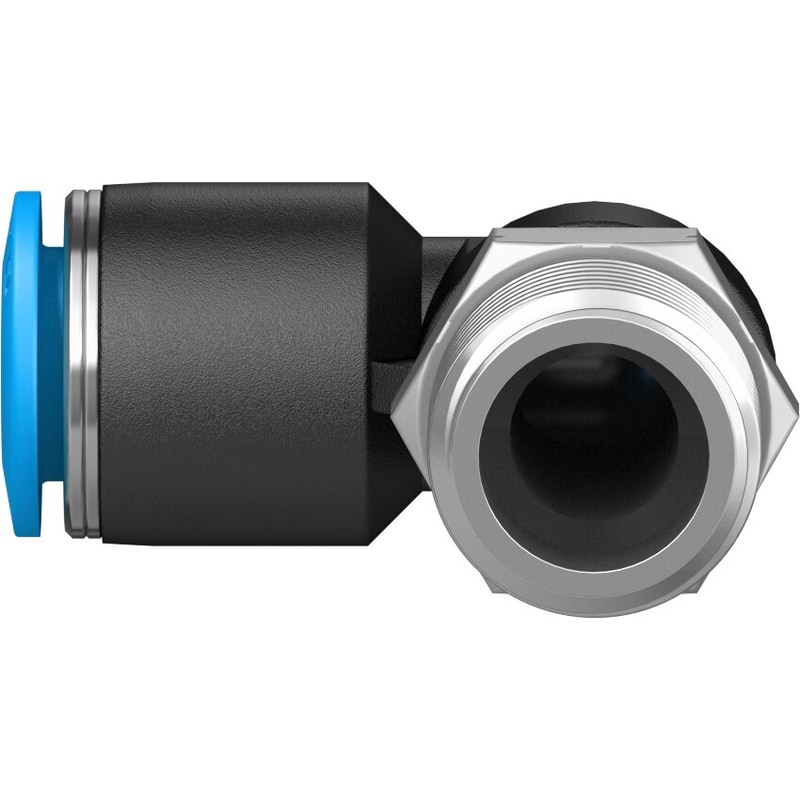

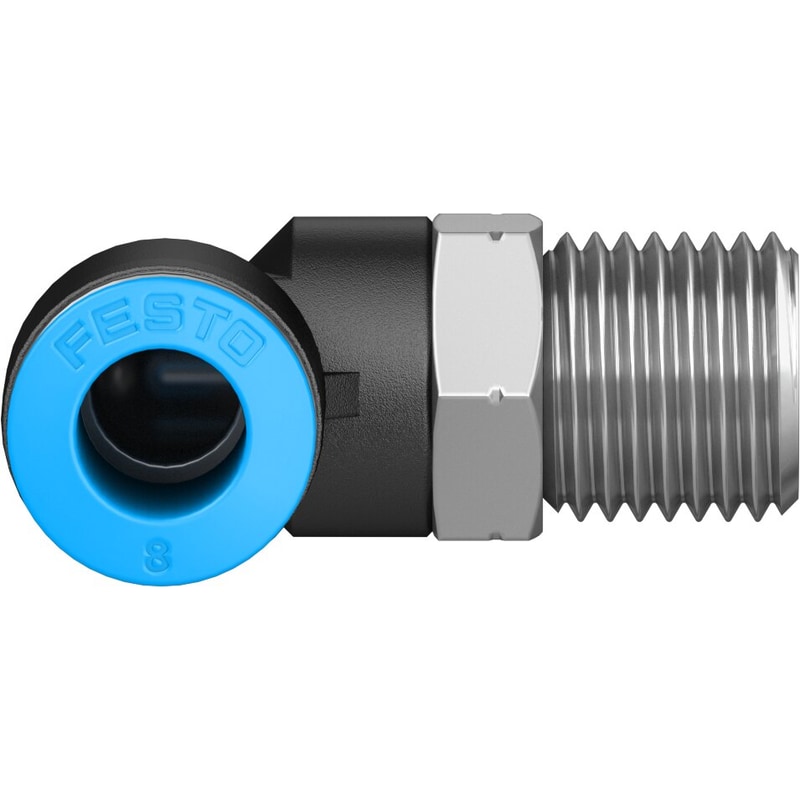

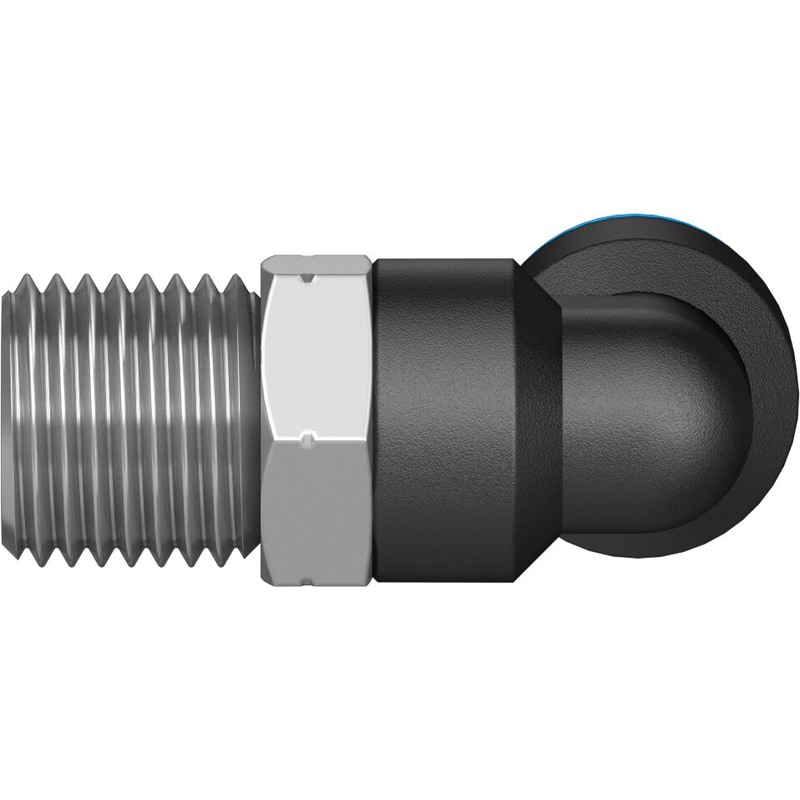

QSL-1/4-8-50 Push-in L-fitting (Pack of 50)

$179.50

SKU: 130732
UNSPSC: 27131613
GTIN: 4052568024536
Sold in Pack of 50

SKU: 130732 Category: Tags: ,
Festo

push-in L-fitting QSL-1/4-8-50 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=6,7 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=50

Fitting Type Male Elbow
Size  Standard
Nominal size  6.7 mm
Type of seal on screw-in stud  coating
Assembly position  Any
Container size  50
Design structure  Push/pull principle
Operating pressure complete temperature range  ‘-0.95 … 6 bar
Temperature dependent operating pressure  ‘-0.95 … 14 bar
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com
Note on operating and pilot medium  Lubricated operation possible
Corrosion resistance classification CRC  1 – Low corrosion stress
Ambient temperature  ‘-10 … 80 °C
Maritime classification  see certificate
Product weight  20 g
connection 1  Male thread R1/4
connection 2  For tubing outside diameter 8 mm
Colour of release ring  blue
Materials note  Conforms to RoHS
Material housing  PBT
Fitting Type

Male Elbow

Size

Standard

Nominal size

6.7 mm

Type of seal on screw-in stud

coating

Assembly position

Any

Container size

50

Design structure

Push/pull principle

Operating pressure complete temperature range

-0.95 … 6 bar

Temperature dependent operating pressure

-0.95 … 14 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at http://www.festo.com

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-10 … 80 °C

Maritime classification

see certificate

Product weight

20 g

connection 1

Male thread R1/4

connection 2

For tubing outside diameter 8 mm

Colour of release ring

blue

Materials note

Conforms to RoHS

Material housing

PBT
