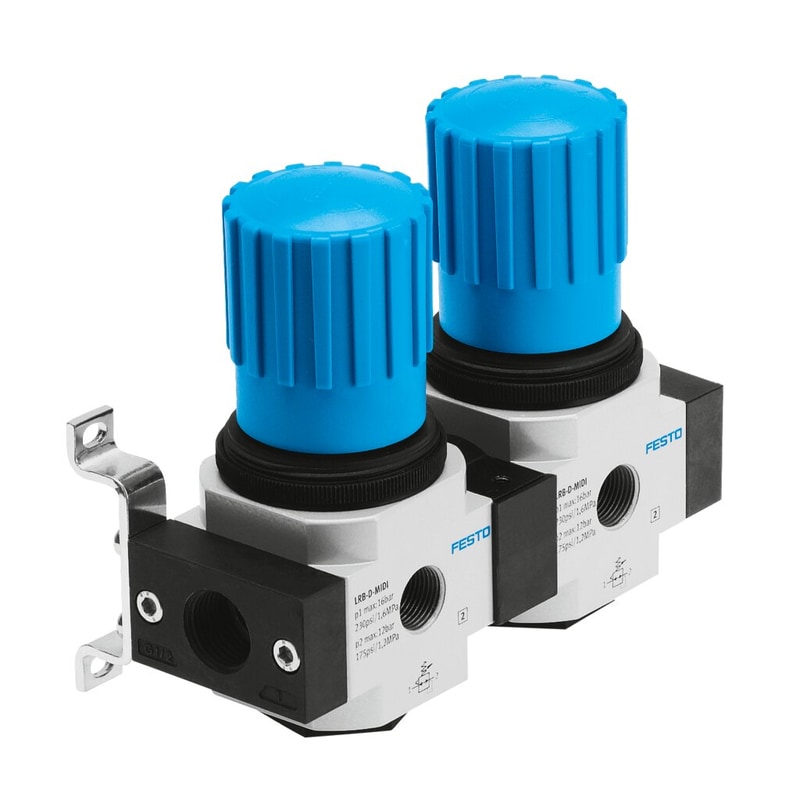

| Size | Mini |
|---|---|
| Type code | LRB |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | Directly controlled diaphragm regulatorwith continuous compressed air supply |
| Controller function | With primary pressure compensationWith secondary exhaustingOutlet pressure constant |

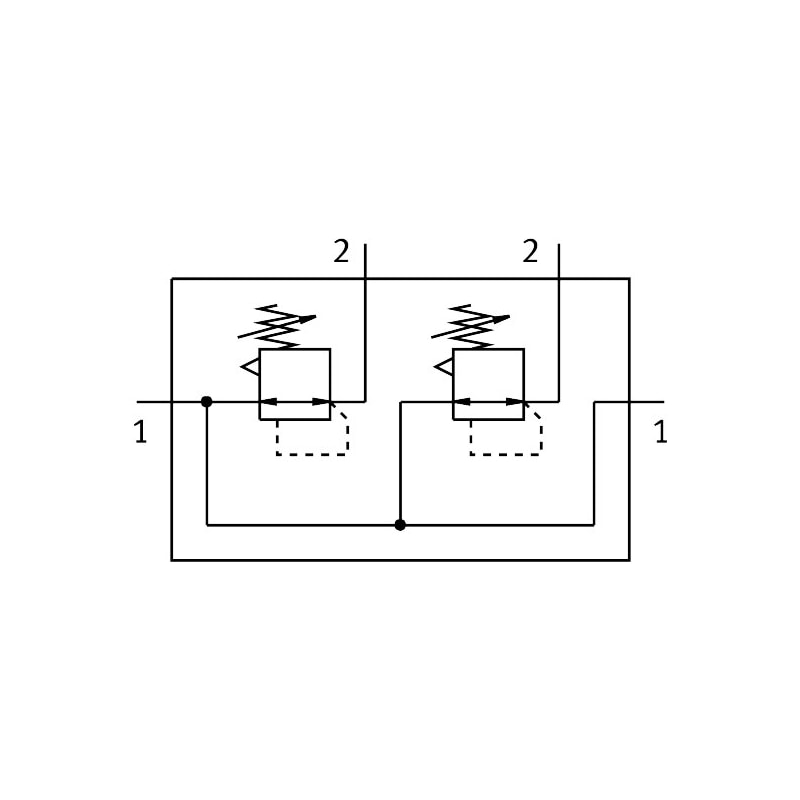

| Symbol | 995331 |
| Pressure gauge | G1/8 prepared |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range | 0.5 bar … 7 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 1800 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 760 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Material of sub-base | Die-cast zinc |
| Material of operator panel | PA |
| Housing material | Die-cast zinc |
| Weight | 1.752675 lbs |
|---|---|
| Dimensions | 6.102362 × 5.708661 × 4.133858 in |
| Size | Mini |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Structural design | with continuous compressed air supply |
| Controller function | Outlet pressure constant, With primary pressure compensation, With secondary exhausting |
| Symbol | 00995331 |
| Pressure gauge | G1/8 prepared |
| Operating pressure | 1 bar … 16 bar |
| Pressure regulation range MPa | 0.05 MPa … 0.7 MPa |
| Pressure regulation range | 0.5 bar … 7 bar |
| Pressure regulation range psi | 7.25 psi … 101.5 psi |
| Max. pressure hysteresis | 2.9 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 1800 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 760 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Material of sub-base | Die-cast zinc |
| Material of operator panel | PA |
| Seals material | NBR |
| Housing material | Die-cast zinc |
