Stop valve with manual override option.
| Type code | HGL |
|---|---|
| Maritime classification | See certificate |
| Valve function | Unlockable non-return function |
| Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | G3/8 |
| Pilot air port 21 | G1/4 |
| Actuation type | Pneumatic |
| Type of mounting | With external threadScrew-in |
| Operating pressure | 0.5 bar … 10 bar |
| Pilot pressure | 1 bar … 10 bar |
| Ambient temperature | -10 °C … 60 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Mounting position | Any |

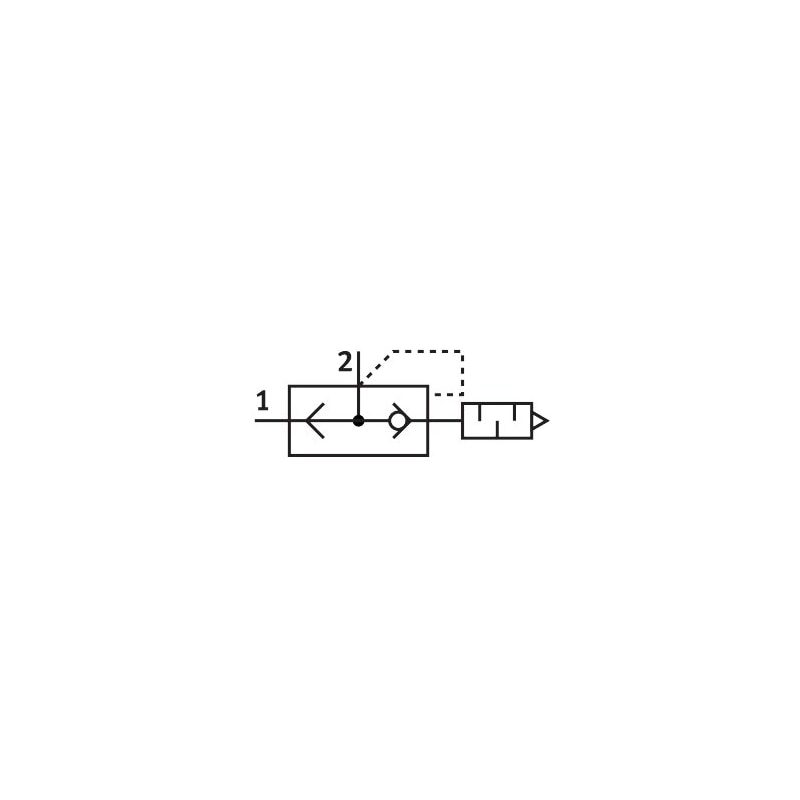

| Symbol | 00991456 |
| Standard flow rate 1->2 (6-0) | 1200 l/min |
| Standard nominal flow rate 1->2 (6-5) | 830 l/min |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Storage temperature | -10 °C … 60 °C |
| Temperature of medium | -10 °C … 60 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Nominal tightening torque | 12.5 Nm |
| Tolerance for nominal tightening torque | ± 10% |
| Product weight | 54.7 g |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Seals material | NBR |
| Hollow bolt material | AnodizedWrought aluminum alloy |
| Releasing ring material | POM |
| Non-return collar material | NBR |
| Swivel joint material | Die-cast zinc |
