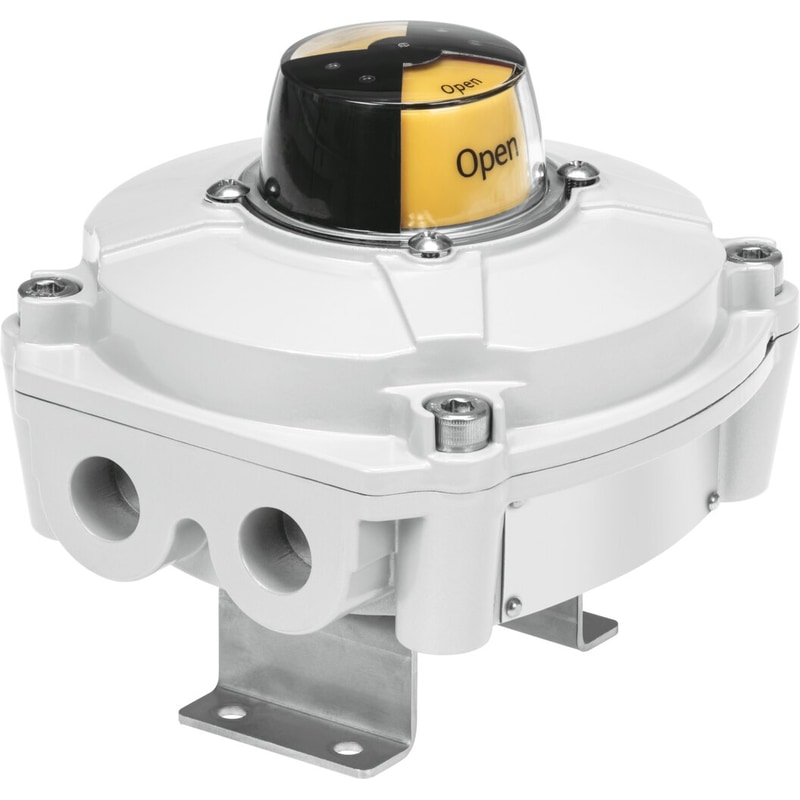

sensor box SRBE-CA3-YR90-MW-22A-1W-C2N12-EX For electrical feedback and position monitoring of process valves which are actuated with pneumatic quarter turn actuators, electromechanical measuring principle. Design=Angular, Based on the standard=(* ISO 5211, * VDI/VDE 3845), CE mark (see declaration of conformity)=(* to EU directive explosion protection (ATEX), * to EU directive low-voltage devices), ATEX category Gas=II 2G, Explosion ignition protection type Gas=Ex d IIC T6 Gb
| Design | Angular |
|---|---|
| Based on the standard | ISO 5211VDI/VDE 3845 |
| CE mark (see declaration of conformity)Â | to EU directive explosion protection (ATEX)to EU directive low-voltage devices |
| ATEX category Gas | II 2G |
| Explosion ignition protection type Gas | Ex db IIC T6 Gb |
| ATEX category Dust | II 2D |
| Explosion ignition protection type Dust | Ex tb IIIC T75°C Db |
| Explosion protection certification outside the EUÂ | EPL Db (BR)EPL Db (CN)EPL Db (IEC-EX)EPL Gb (BR)EPL Gb (CN)EPL Gb (IEC-EX) |
| Explosion-proof ambient temperature | ‘-20°C <= Ta <= +60°C |
| Certificate issuing department | DNV 16.0067XFTZU 15 ATEX 0095XGYJ 16.1497XIECEx FTZU 15.0014X |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Safety Integrity Level (SIL)Â | SIL 2 |
| Measuring principle | Mechanical/electricalFor proximity sensor |
