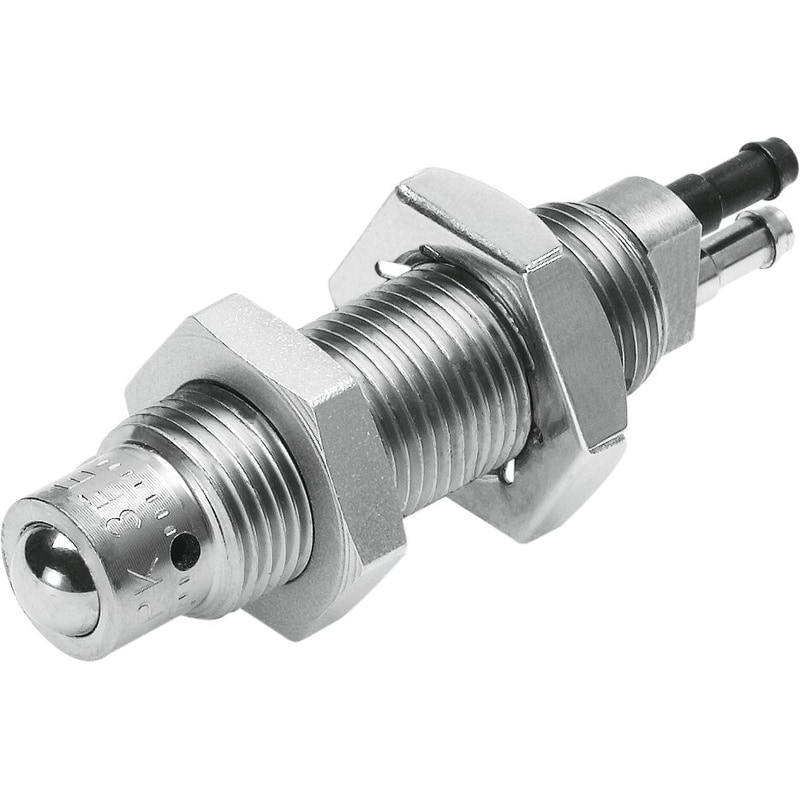

front panel valve SV/O-3-PK-3X2 Valve function=2×3/2 closed, monostable, Standard nominal flow rate=70 l/min, Operating pressure=0 – 8 bar, Type of reset=mechanical spring, Nominal size=2,5 mm

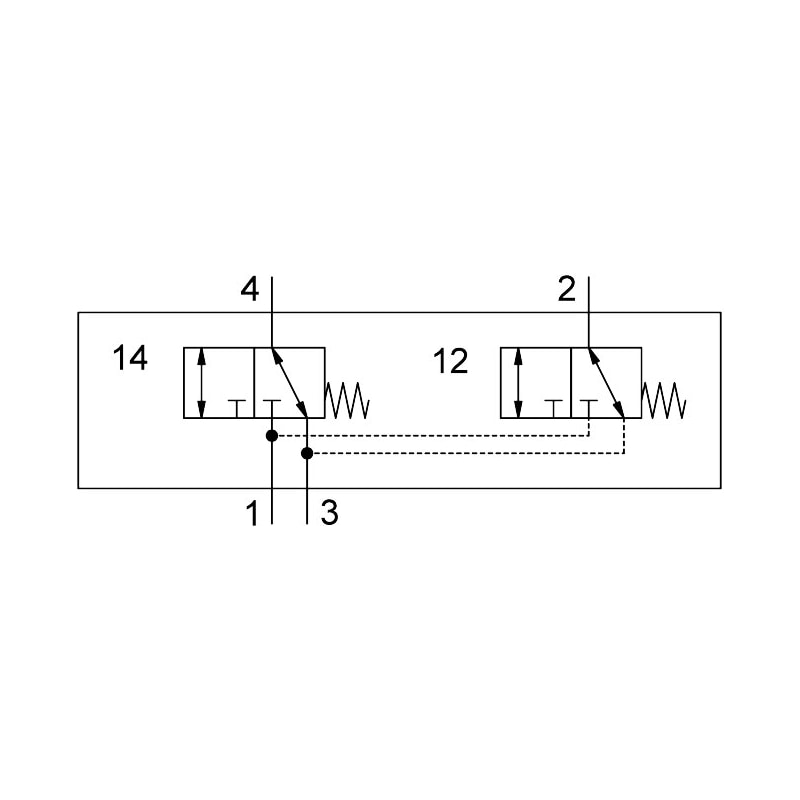

| Valve function | 2×3/2 closed, monostable |
|---|---|
| Standard nominal flow rate | 70 l/min |
| Operating pressure | 0 … 8 bar |
| Type of reset | mechanical spring |
| Nominal size | 2.5 mm |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Ambient temperature | ‘-10 … 60 °C |
| Product weight | 34 g |
| Mounting type | with through hole |
