DYSR-12-12-Y5-T

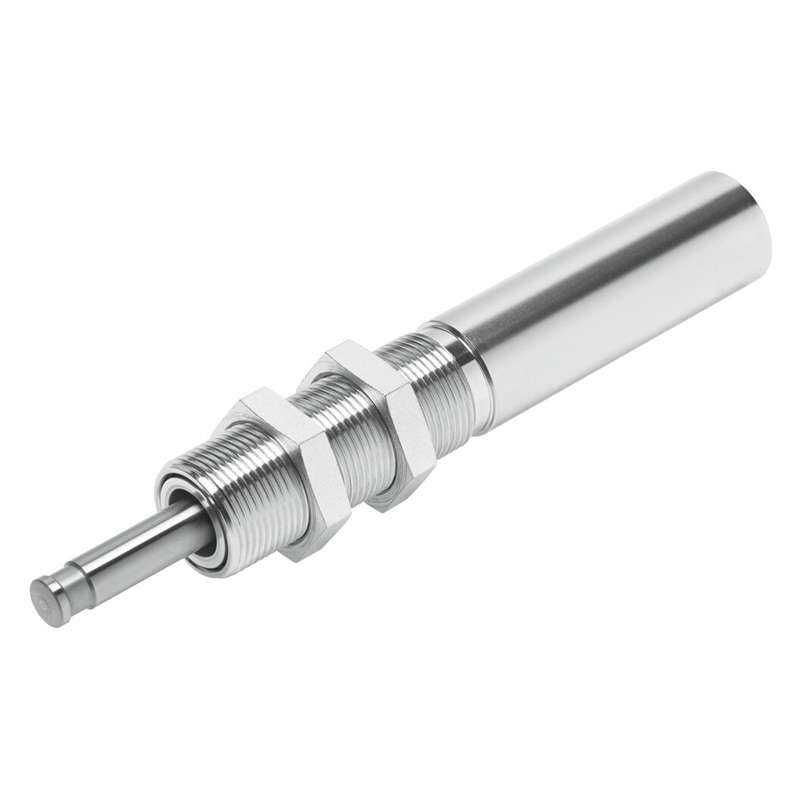

Name: DYSR-12-12-Y5-T
Brand: Festo
SKU: 1138643
Availability: InStock

$299.38

SKU: 1138643
UNSPSC: 25172011
GTIN: 4052568227333

SKU: 1138643 Category: DYSR

Brand: Festo

shock absorber DYSR-12-12-Y5-T Size=12, Stroke=12 mm, Cushioning=adjustable, Assembly position=Any, Position detection=No

Size	12
Stroke	12 mm
Cushioning	adjustable
Assembly position	Any
Position detection	No
Max. impact speed	3 m/s
Reset time short	0.2 s
Reset time long	1 s
Mode of operation	single-actingpushing action
Corrosion resistance classification CRC	1 – Low corrosion stress
Ambient temperature	‘-10 … 80 °C
Cushioning length	12 mm
Max. stop force	900 N

Weight	0.260145 lbs
Dimensions	4.724409 × 5.11811 × 0.787402 in
Stroke	12 mm
Max. energy consumption per stroke	10.8 J
Cushioning	Adjustable
