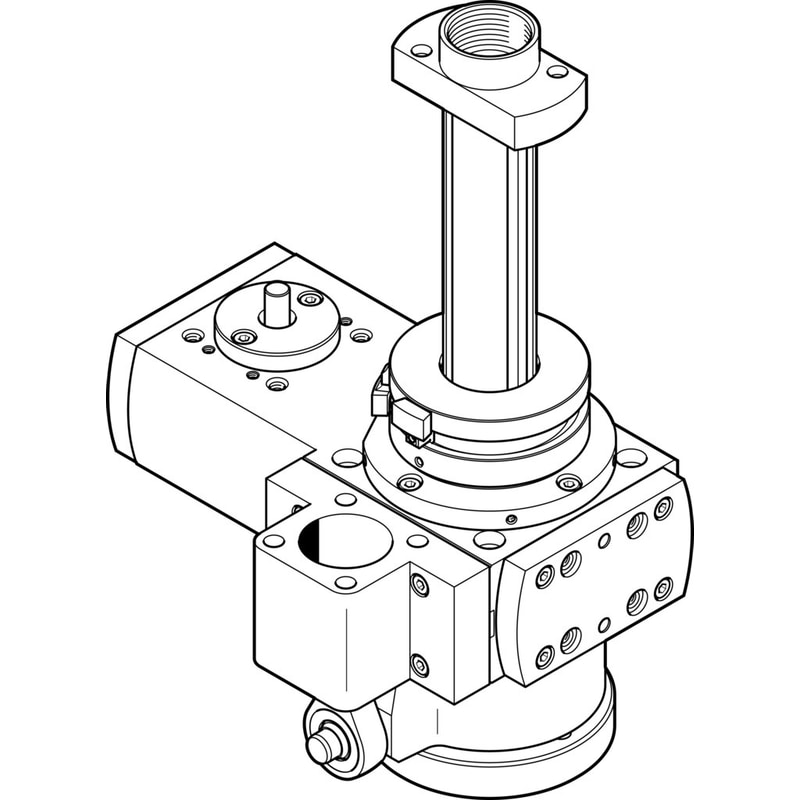

rotary/lifting module EHMB-25-100 Drive pinion diameter=8 mm, Working stroke=0 – 100 mm, Size=25, Rotation angle=Endless, Toothed-belt pitch=3 mm
| Drive pinion diameter | 8 mm |
|---|---|
| Working stroke | 0 … 100 mm |
| Size | 25 |
| Rotation angle | Endless |
| Toothed-belt pitch | 3 mm |
| Assembly position | Any |
| Type of gear unit | Toothed belt drive |
| Design structure | Electromechanical rotary stroke moduleWith toothed belt |
| Gear unit ratio | 0.167361111111111 |
| Max. output speed | 300 1/min |
| Max. input speed | 1,200 1/min |
| Ambient temperature | ‘-10 … 60 °C |
| Max. drive torque | 2.2 Nm |
