| Gearbox flange size | 60 mm |
|---|---|
| Motor flange size | 60 mm |
| Torsional backlash | 0.17 deg |
| Type code | EMGA |
| Gearbox type | Planetary gear |
| Gear ratio | 0.125694444444444 |
| Max. actuator speed | 13000 1/min |
| Gearbox operating temperature | -25 °C … 90 °C |
| Degree of protection | IP54 |
| Continuous output torque | 28 Nm |
| Mass moment of inertia, gearbox | 0.135 kgcm² |
| Max. output torque | 45 Nm |
| Max. efficiency | 0.98 |
| Torsional rigidity | 2.3 Nm/arcmin |
| Product weight | 900 g |
| Gearbox interface, output shaft | 60H |
| Gearbox interface, actuator | 60P |
| Note on materials | RoHS-compliant |

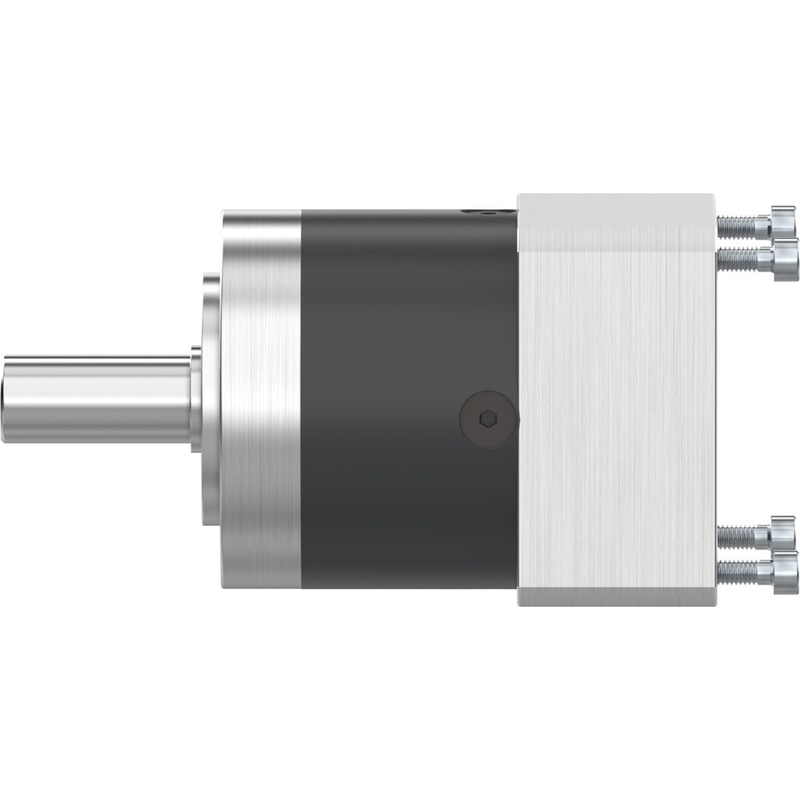

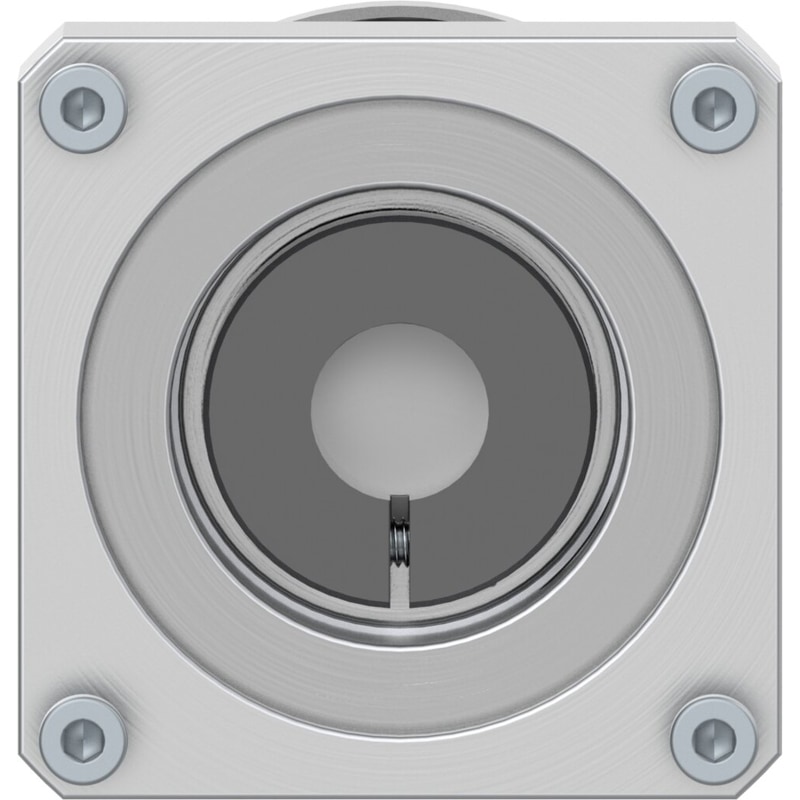

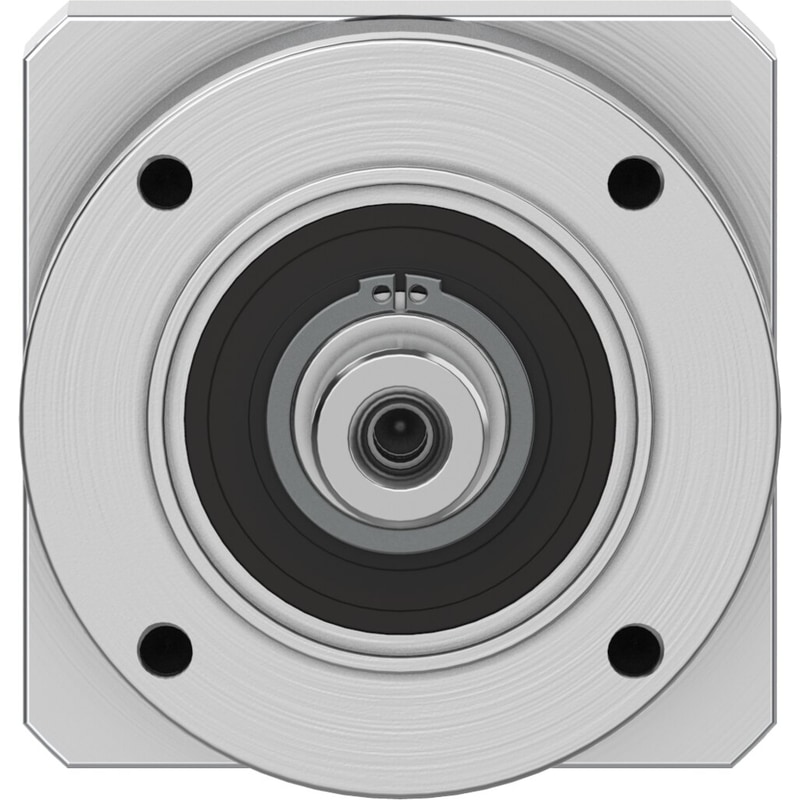

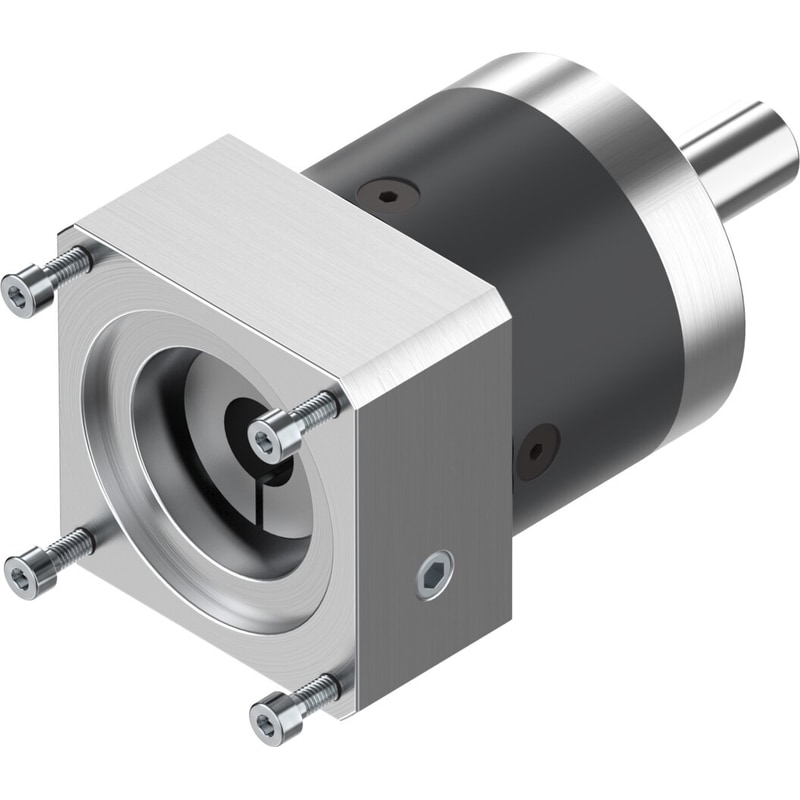

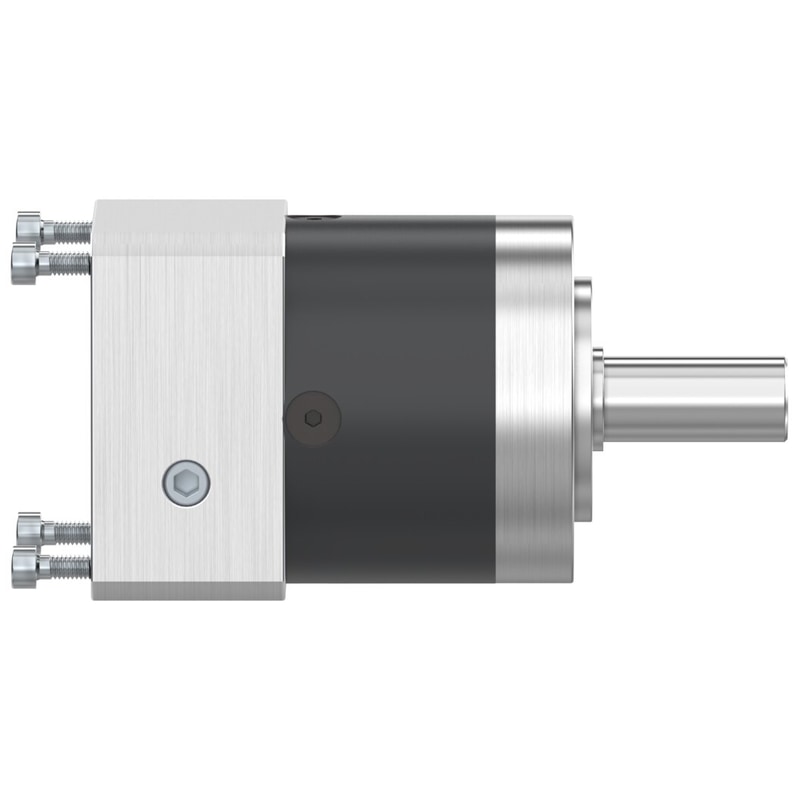

EMGA-60-P-G3-EAS-60
$692.72
Gearbox range coordinated with Festo stepper and servo motors, as straight-cut planetary gears or bevel gears.
