Brands | Air Logic |
---|---|
Model | 404 |
Cracking Pressure | Less than 0.02 bar Less than 10 in. H2O Less than 2.5 kPa Less than 0.36 psi |
Reverse Flow | Less than 0.06 SCIM |
Tubing Inside Diameter (ID) | 1/16 in |
Maximum Pressure | 75 psi5.2 bar |
Typical Tube Retention Pressure1 | 125 psi8.6 bar |
Forward Flow at 75 Pound Per Square Inch (psi) Supply Pressure | 2 scfm |
Recommended System Filtration | 5 µm |
Connection Type | Barbed |
Wetted Material(s) | Polysulfone (PSU) Silicone (Si) |
Installation Method | Push-In |
EU RoHS 2 (Directive 2011/65/EU with amendment (EU) 2015/863) | Yes |
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Compliant | Yes |
Additional Information | The Housing design enables extremely responsive movements for sensitive applications. No lubrication is used in production or required for operation. Threaded connections are a convenient way to connect in a variety of applications. This product combines well with Air Logic’s fitting product line for application specific requirements like swivel capability, and serviceable applications. |

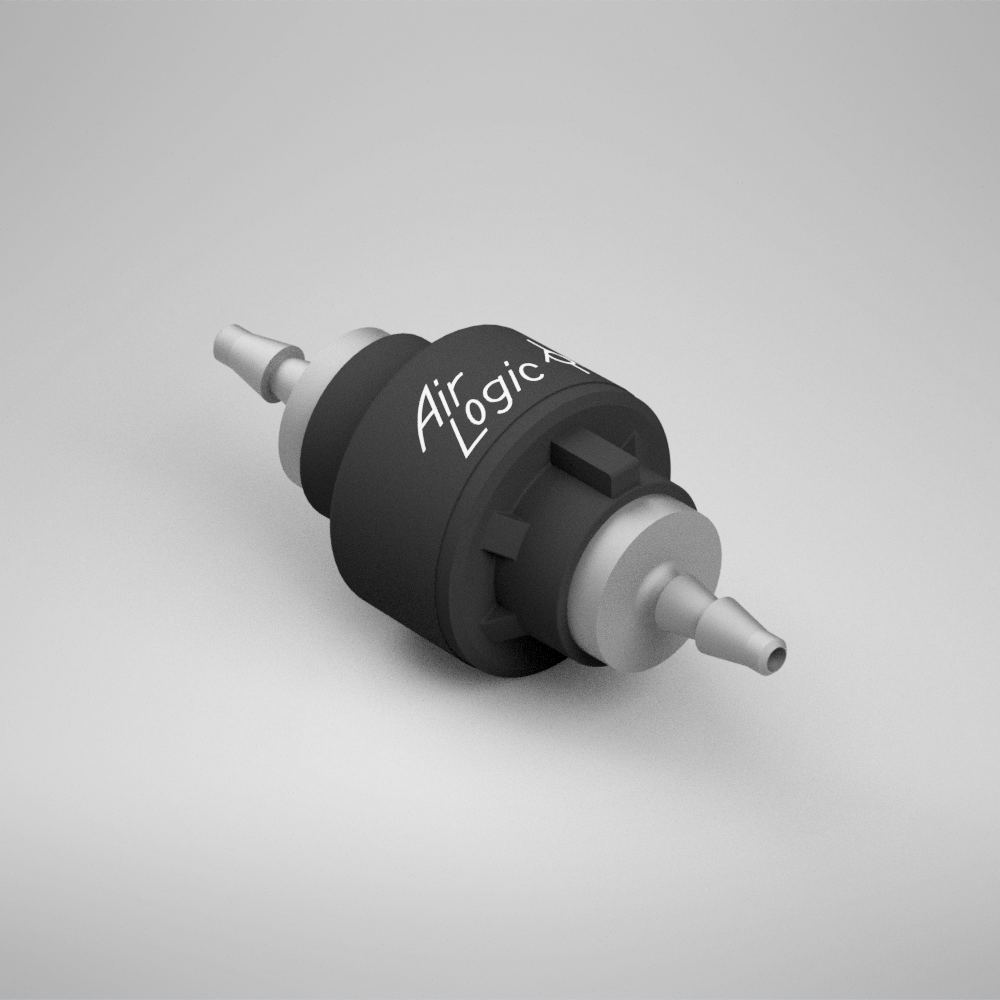

F2804404P80, Threaded Check Valve, Floating Disk, 1/16 Inch Barbs
$7.65
