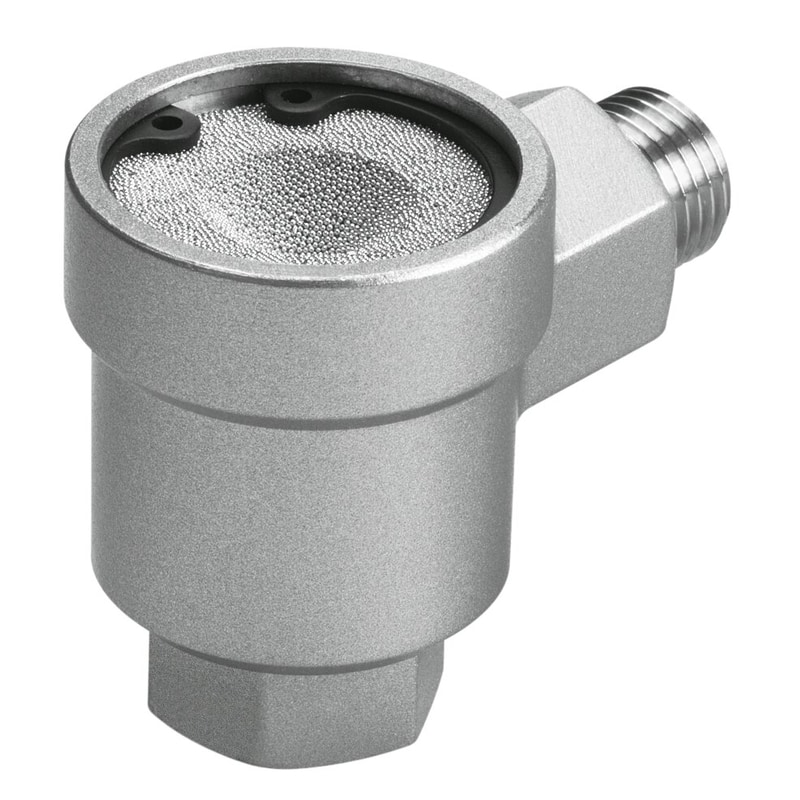

Flat, screw-in exhaust air control with calibrated noise emission.
| Type code | VBQF-U |
|---|---|
| Valve function | Quick exhaust |
| Selection of additional function | With pneumatic muffler |
| Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | G¼ |
| Type of mounting | Screw-in |
| Standard flow rate exhaust 6-> 0 bar | 2500 l/min |
| Standard nominal flow rate pressurization 6->5 bar | 800 l/min |
| Operating pressure | 0.5 bar … 10 bar |
| Ambient temperature | -10 °C … 60 °C |
| Housing material | Die-cast aluminumDie-cast zinc |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Nominal width | 7 mm |
| Mounting position | Any |

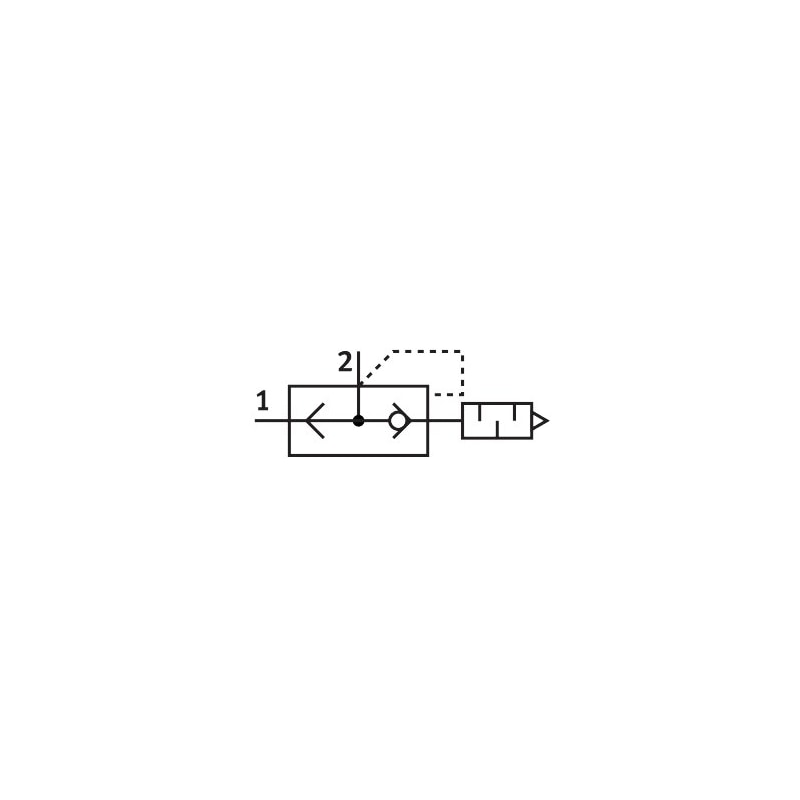

| Symbol | 00991460 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Temperature of medium | -10 °C … 60 °C |
| Noise level | 75 dB(A) |
| Product weight | 232 g |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
