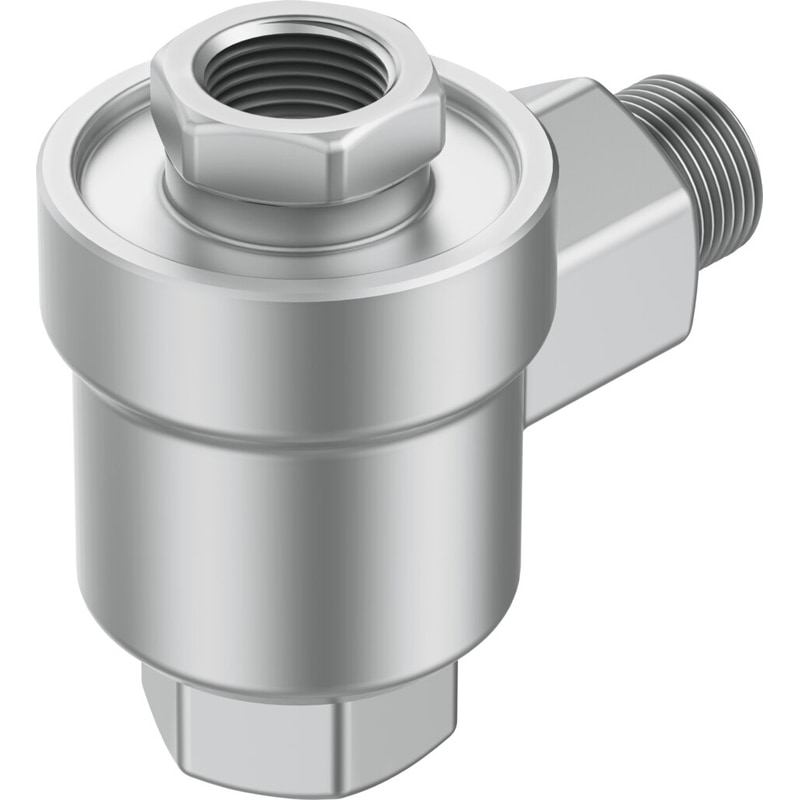

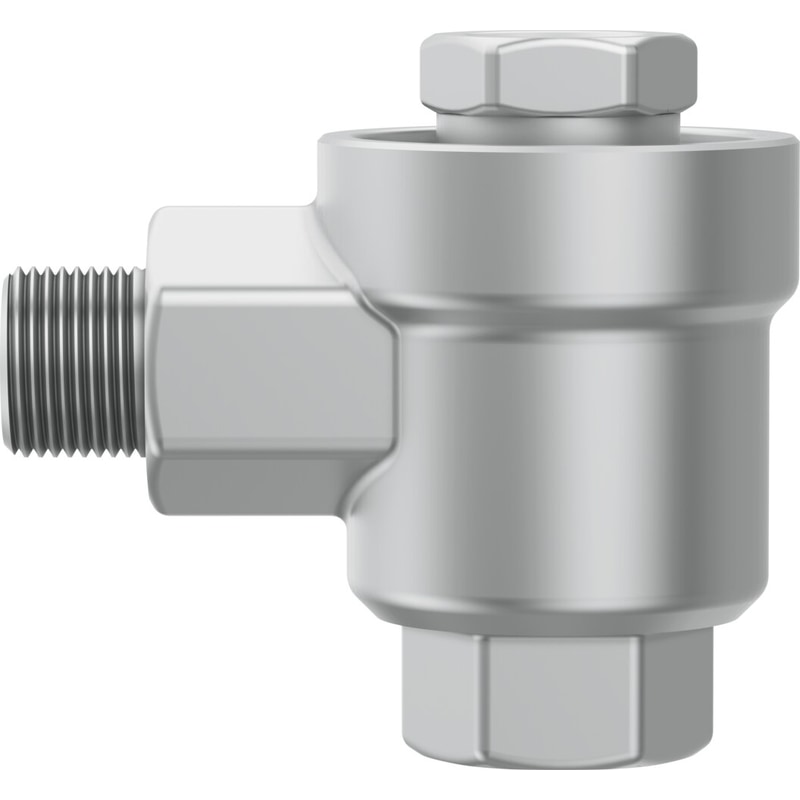

Flat, screw-in exhaust air control with calibrated noise emission.
Type code | VBQF-D |
---|---|
Valve function | Quick exhaust |
Pneumatic connection 1 | QS-6 |
Pneumatic connection 2 | G1/8 |
Type of mounting | Screw-in |
Standard nominal flow rate exhaust air 6->5 bar | 850 l/min |
Standard flow rate exhaust 6-> 0 bar | 1300 l/min |
Standard nominal flow rate pressurization 6->5 bar | 350 l/min |
Operating pressure | 0.2 bar … 10 bar |
Ambient temperature | -10 °C … 60 °C |
Housing material | Die-cast aluminumDie-cast zinc |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Nominal width | 5 mm |
Mounting position | Any |

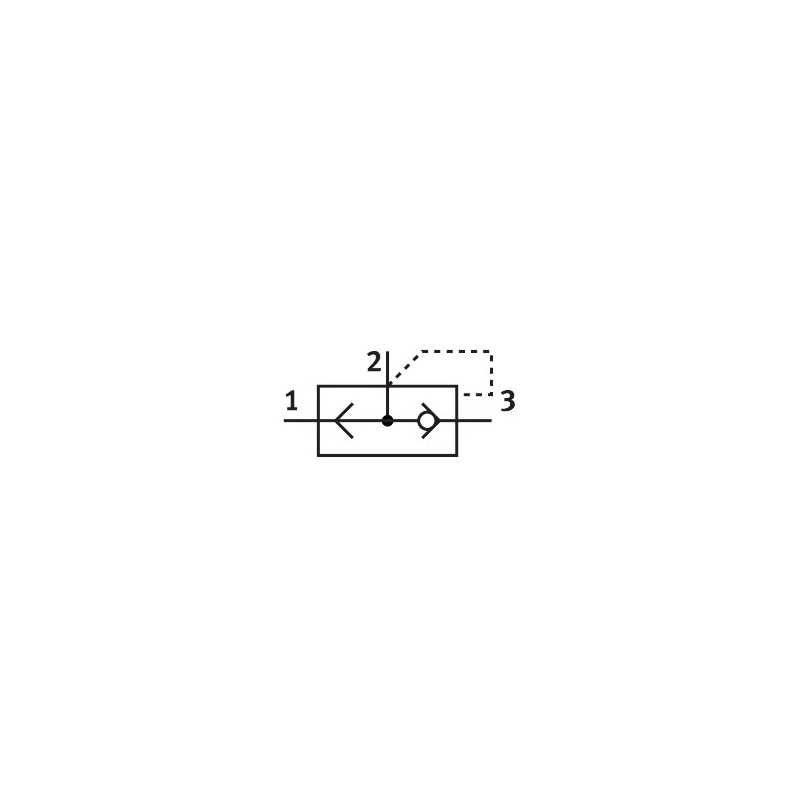

Symbol | 00991459 |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 – Low corrosion stress |
Temperature of medium | -10 °C … 60 °C |
Product weight | 105 g |
Pneumatic connection 3 | QS-8 |
Note on materials | RoHS-compliant |
Seals material | NBR |
