Flat, screw-in exhaust air control with calibrated noise emission.

Type code VBQF-U
Valve function Quick exhaust
Selection of additional function With pneumatic muffler
Pneumatic connection 1 G1/8
Pneumatic connection 2 G1/8
Type of mounting Screw-in
Standard flow rate exhaust 6-> 0 bar 1300 l/min
Standard nominal flow rate pressurization 6->5 bar 350 l/min
Operating pressure 0.5 bar … 10 bar
Ambient temperature -20 °C … 80 °C
Housing material Die-cast zincDie-cast aluminum
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Nominal width 5 mm
Mounting position Any

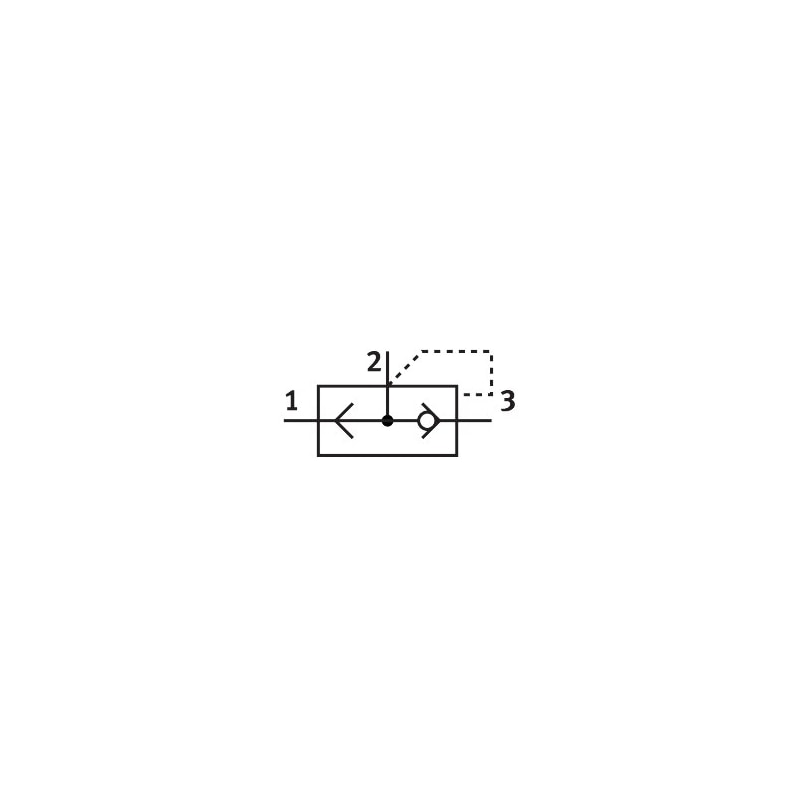

Symbol 00991460
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC) 1 – Low corrosion stress
Temperature of medium -20 °C … 80 °C
Noise level 75 dB(A)
Product weight 84.2 g
Note on materials RoHS-compliant
Seals material NBR
