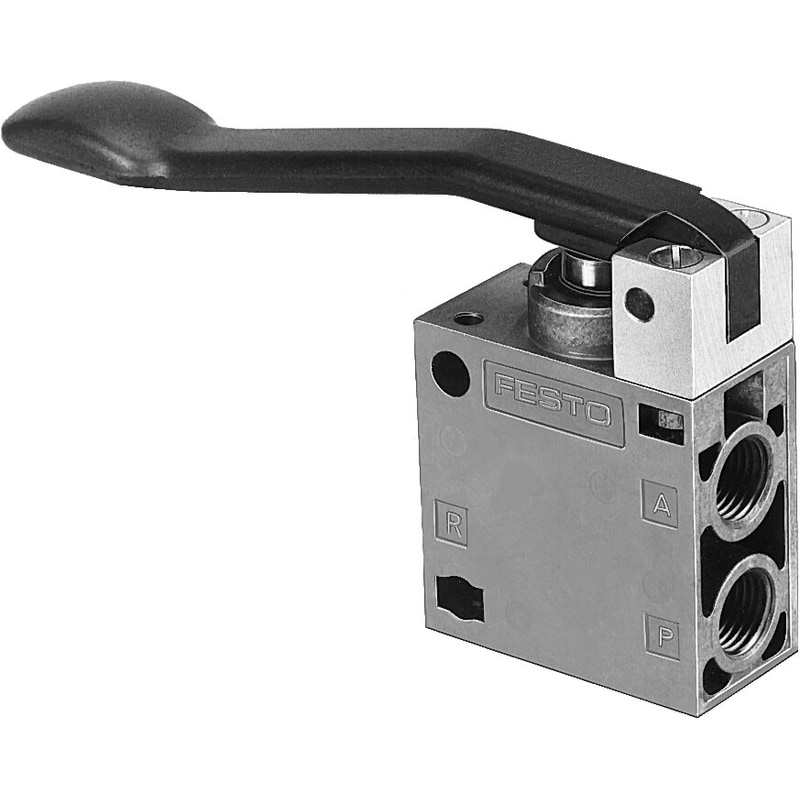

finger lever valve THO-3-1/4-B Normally open. Valve function=3/2 open, monostable, Standard nominal flow rate=600 l/min, Operating pressure=-0,95 – 10 bar, Design structure=Piston seat, Nominal size=7 mm
| Valve function | 3/2 open, monostable |
|---|---|
| Standard nominal flow rate | 600 l/min |
| Operating pressure | ‘-0.95 … 10 bar |
| Design structure | Poppet seat |
| Nominal size | 7 mm |
| Type of piloting | direct |
| Ambient temperature | ‘-10 … 60 °C |
| Actuating force | 22.5 N |
| Product weight | 210 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1Â | G1/4 |
| Pneumatic connection, port 2Â | G1/4 |
| Pneumatic connection, port 3Â | G1/4 |
