| Weight | 0.63061 lbs |
|---|---|
| Dimensions | 21.653543 × 13.976378 × 9.645669 in |
| Size | 4 |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |
| Structural design | Filter regulator without pressure gauge, Directly controlled piston regulator |
| Max. condensate volume | 16.5 ml |
| Controller function | Outlet pressure constant, With secondary exhausting, With return flow function |
| Degree of condensate separation | >75 % |

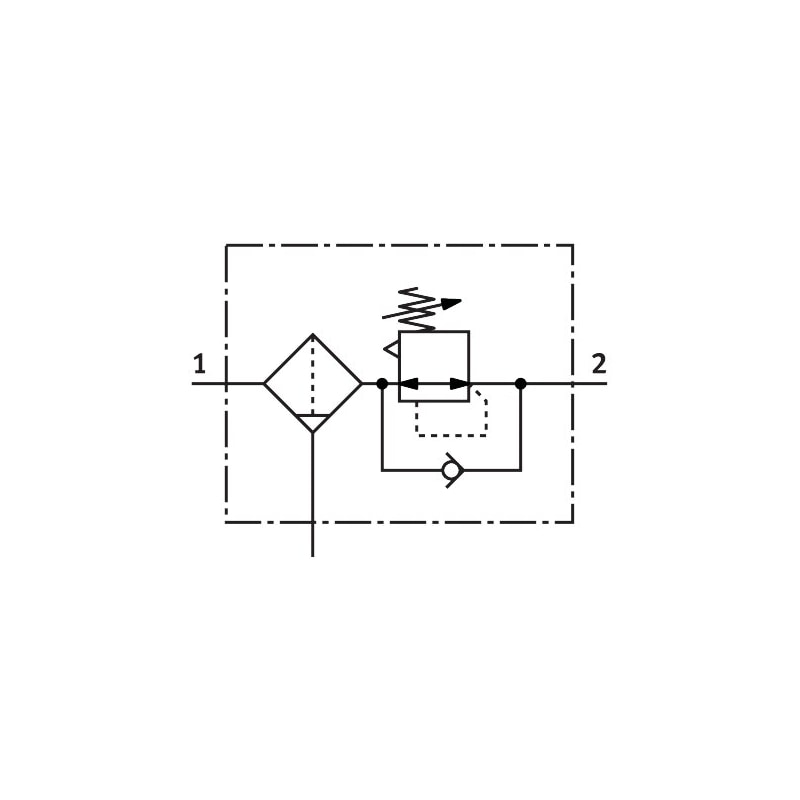

| Symbol | 00991590 |
| Pressure gauge | G1/8 prepared |
| Operating pressure | 1 bar … 10 bar |
| Pressure regulation range | 0.3 bar … 7 bar |
| Max. pressure hysteresis | 7.25 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 1500 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Storage temperature | -5 °C … 50 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | -5 °C … 50 °C |
| Ambient temperature | -5 °C … 50 °C |
| Pore size | <5 µm |
| Product weight | 204 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy stainless steel |
| Compressed air filter material | PE |
| Housing material | PA-reinforced |
| Material of bowl | PC |
| Valve tappet material | POM |
