| Width | 68 mm |
|---|---|
| Height | 130 mm |
| Length | 160 mm |
| Mounting position | Free convection |
| Primary supply | 1-phase |
| Input current | 2.4 – 5.6 A |
| Nominal output voltage DC | 48 V |
| Nominal output current | 10 A |
| Input voltage range AC | 100 V … 240 V |
| Power failure buffering | 15 ms |
| Mains frequency | 45 Hz … 65 Hz |
| Certification | c UL us – Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive |
| LABS conformity | VDMA24364 zone III |
| Storage temperature | -40 °C … 85 °C |
| Relative air humidity | 95 % |
| Degree of protection | IP20 |
| Ambient temperature | -25 °C … 70 °C |
| Product weight | 1603 g |
| Type of mounting | With H-rail |
| Note on materials | RoHS-compliant |

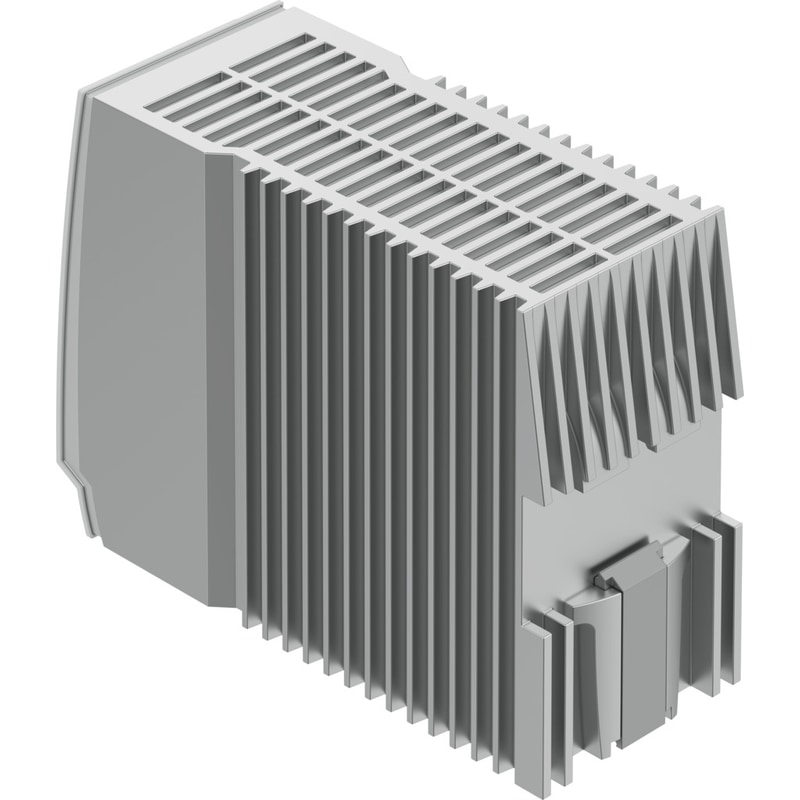

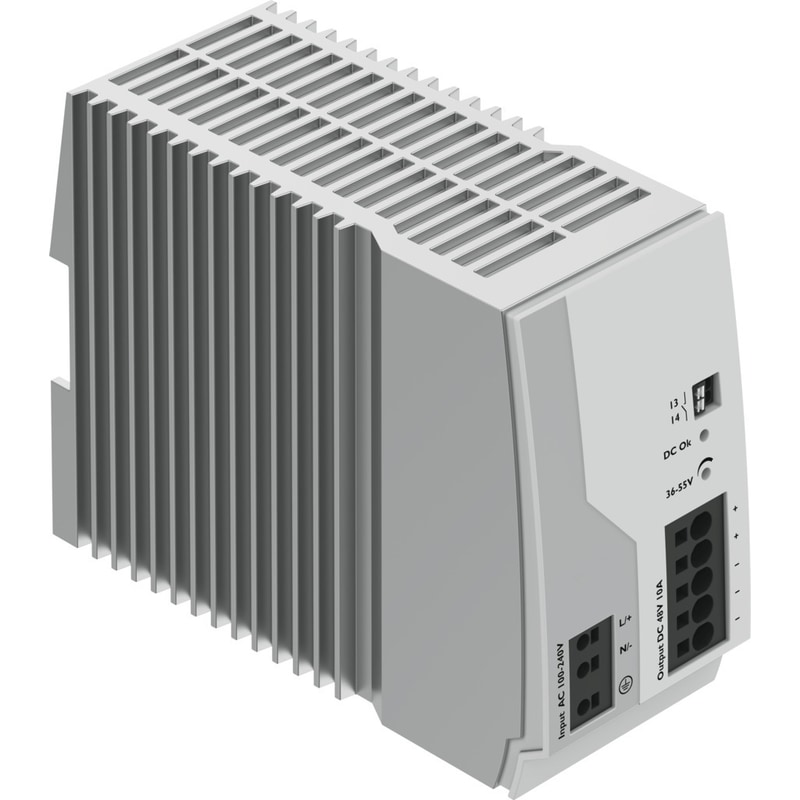

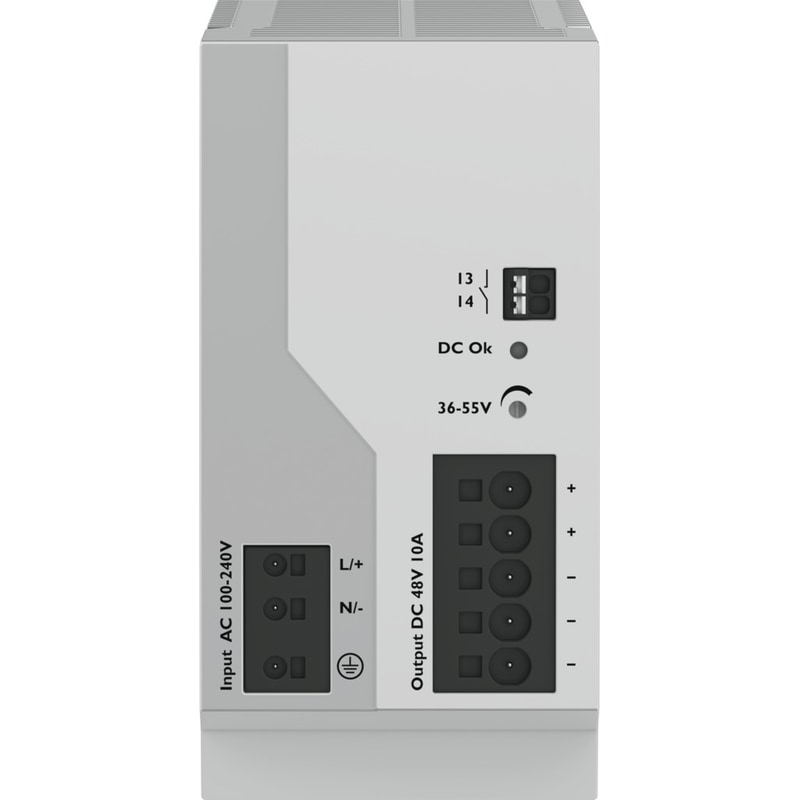

CACN-3A-7-10-G2
$742.74
