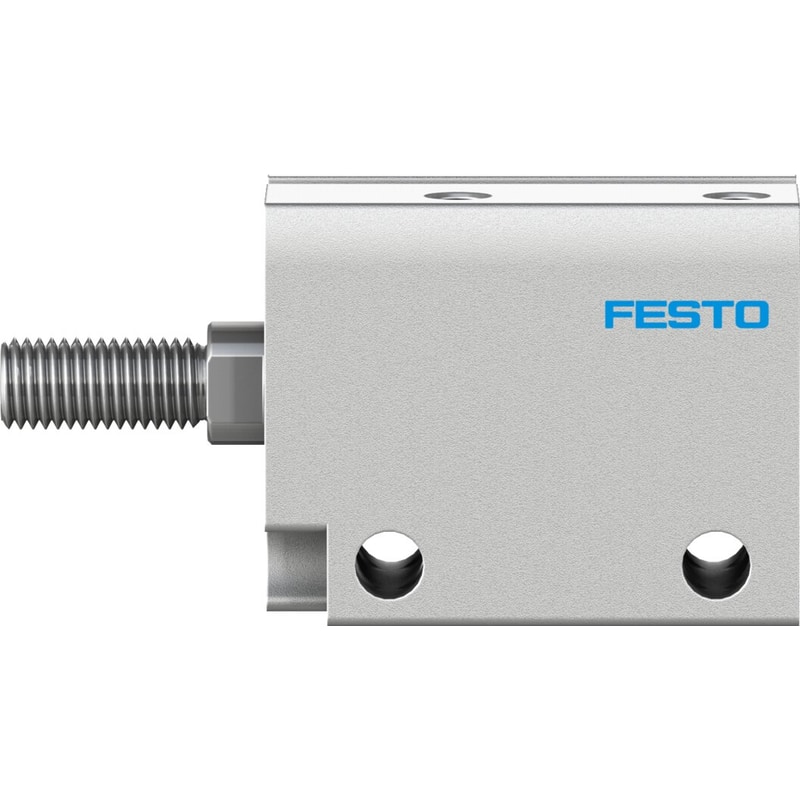

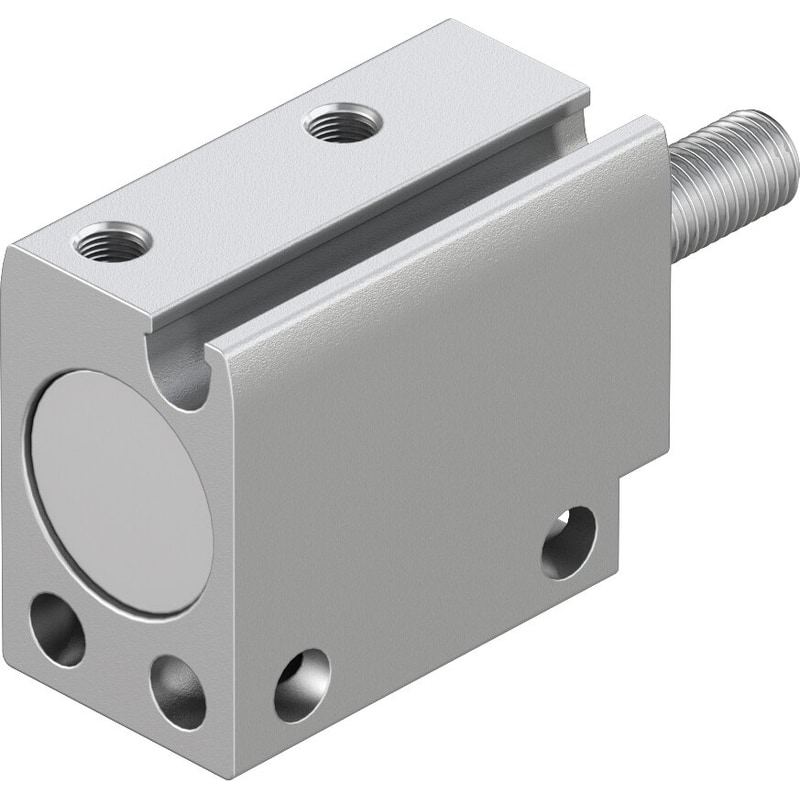

ADN-S-10-10-A-F1A

$38.95

SKU: 8142523 Category: Brand:
Stroke10 mm
Piston diameter10 mm
CushioningNo cushioning
Mounting positionAny
Mode of operationDouble-acting
Piston rod endExternal thread
Structural designPiston Piston rod

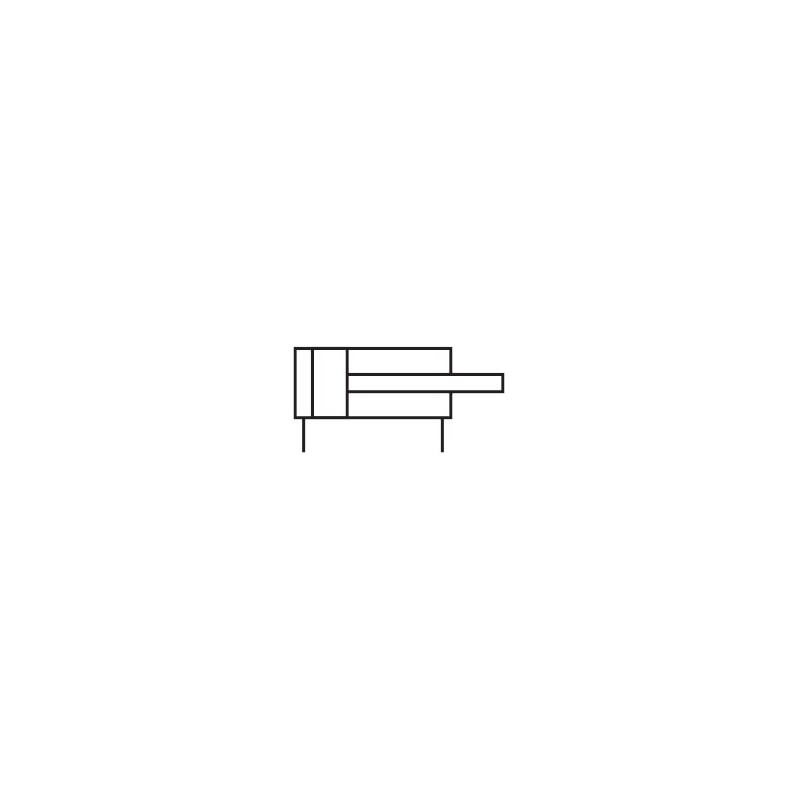

Symbol00991215
VariantsRecommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end
Operating pressure 0.1 MPa … 0.8 MPa
Operating pressure 1 bar … 8 bar
Operating pressure 14.5 psi … 116 psi
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)2 – Moderate corrosion stress
RSBP classification to CD-0033F1a
Cleanroom classISO Class 6
Ambient temperature -10 °C … 60 °C
Impact energy in the end positions0.012 J
Theoretical force at 6 bar, retracting30.2 N
Theoretical force at 6 bar, advancing47 N
Moving mass5.3 g
Product weight15.4 g
Type of mountingWith through-hole
Pneumatic connectionM3
Note on materialsRoHS-compliant
Cover materialWrought aluminum alloy
Material of dynamic sealsNBR TPE-U(PU)
Housing materialWrought aluminum alloy, anodized Anodized
Piston rod materialHigh-alloy stainless steel
