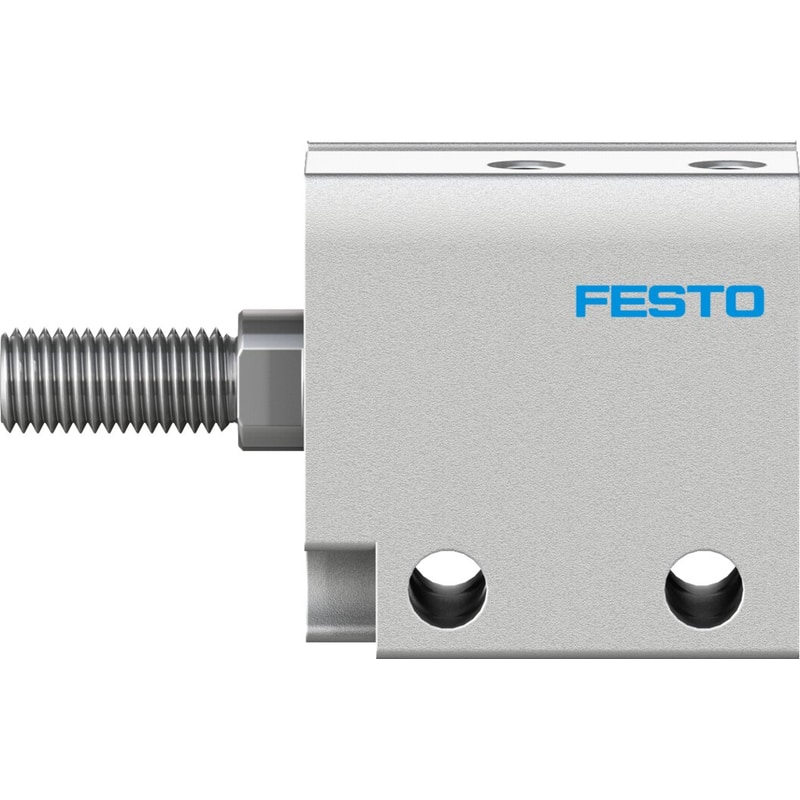

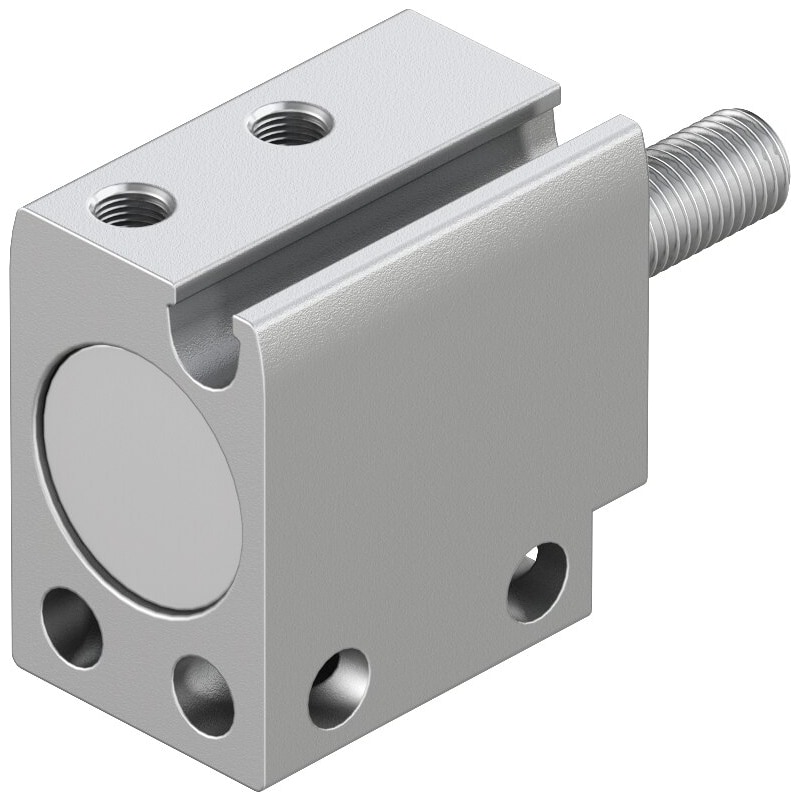

| Stroke | 5 mm |
|---|---|
| Piston diameter | 10 mm |
| Cushioning | No cushioning |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Piston rod end | External thread |
| Structural design | Piston Piston rod |
| Symbol | 00991215 |
| Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
| Operating pressure | 0.1 MPa … 0.8 MPa |
| Operating pressure | 1 bar … 8 bar |
| Operating pressure | 14.5 psi … 116 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| RSBP classification to CD-0033 | F1a |
| Cleanroom class | ISO Class 6 |
| Ambient temperature | -10 °C … 60 °C |
| Impact energy in the end positions | 0.012 J |
| Theoretical force at 6 bar, retracting | 30.2 N |
| Theoretical force at 6 bar, advancing | 47 N |
| Moving mass | 4.1 g |
| Product weight | 12.2 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized Anodized |
| Piston rod material | High-alloy stainless steel |
| Weight | 0.036597 lbs |
|---|---|
| Dimensions | 1.377953 × 0.787402 × 0.472441 in |
| Mode of operation | double-acting |
| Piston diameter | 10 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 47 N |
| Stroke | 5 mm |
| Cushioning | No cushioning |
