| Dimensions W x L x H | (incl. interlinking block) |
|---|---|
| Width dimension | 50.1mm |
| Type of mounting | Screwed tightly |
| Product weight | 96g |
| Mounting position | Any |
| Ambient temperature | -20°C |
| Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Storage temperature | -20°C |
| Relative air humidity | 5 – 95 % |
| Nominal altitude of use above sea level | <= 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3500m |
| Information on max. installation height | > 2000 m ASL (< 79.5 kPa) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | SG1 on H-rail |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | 30 g/11 ms as per EN 60068-2-27 |
| Protection class | III |
| Contamination level | 2 |
| Overvoltage category | II |
| Max. cable length | 30 m inputs |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Material fire test | UL94 V-0 (housing) |
| Note on materials | RoHS-compliant |
| Housing material | PC |
| Cover material | PBT-reinforced |
| Material of screws | Steel, nickel-plated |
| O-ring material | FPM |
| Diagnostics via LED | Diagnostics per channel |
| Diagnose per internal communication | Communication error |
| Max. address capacity inputs | 2byte |
| Channel parameters | Input debounce time |
| Communication interface, protocol | AP |
| Note regarding operating voltage | SELV/PELV fixed power supplies required |
| Note on nominal operating voltage DC | Protected Extra-Low-Voltage as per IEC 60204-1 |
| Nominal operating voltage DC for electronics/sensors | 24V |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 40 mA |
| Power failure buffering | 10ms |
| Reverse polarity protection | yes |
| Electrical connection input, function | Digital input |

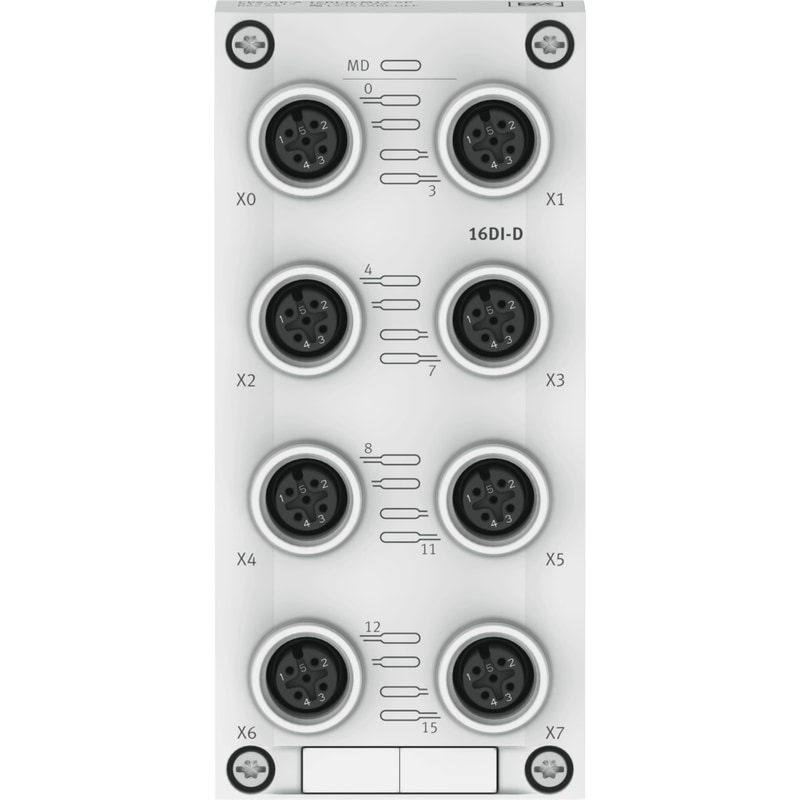

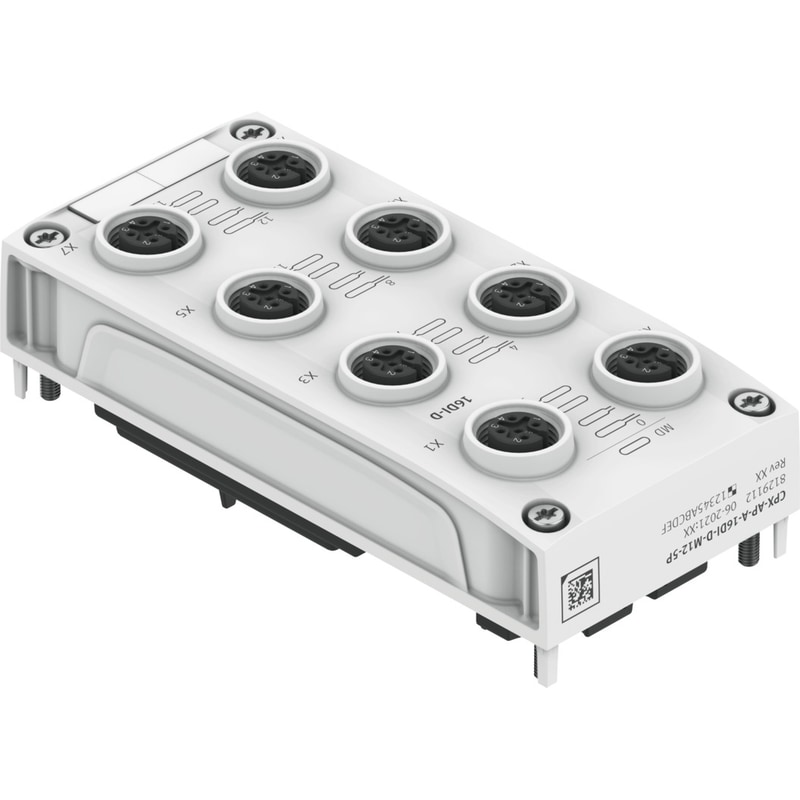

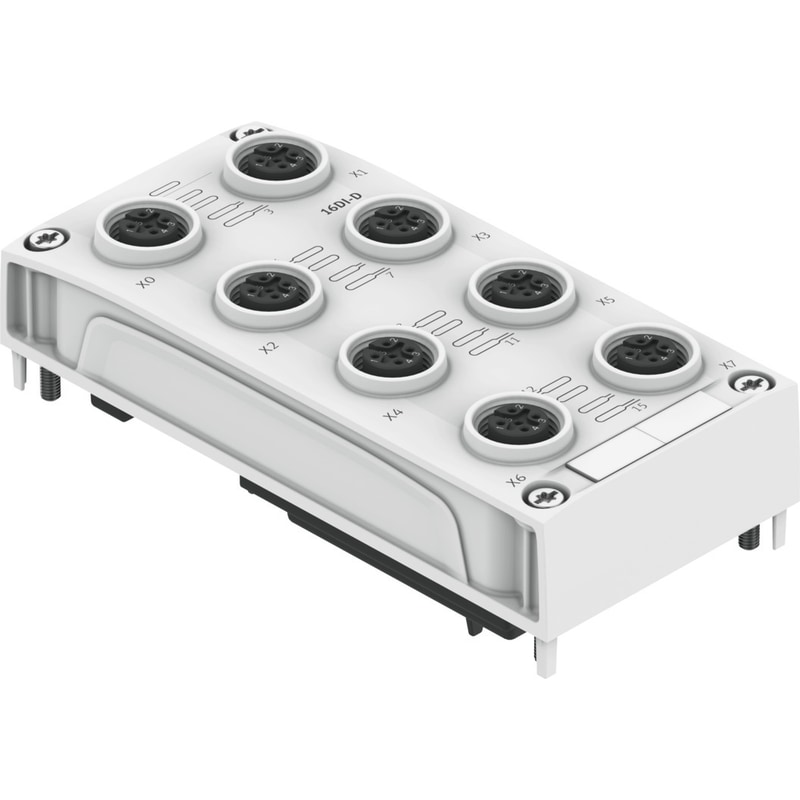

| Electrical connection input, connection type | 8x socket |
| Electrical input connection, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection, input, number of pins/wires | 5 |
| Electrical connection for input, connection pattern | 00995384 |
| No. of inputs | 16 |
| Input characteristics | As per IEC 61131-2, type 3 |
| Switching level | Signal 0: <= 5 V |
| Input switching logic | PNP (positive switching) |
| Input debounce time | 0.1 ms |
| Fuse protection inputs (short circuit) | Internal electronic fuse per socket |
| Max. residual current of inputs per module | 4A |
| Electrical isolation of inputs between channels | no |
| Digital inputs, electrical isolation of input – internal communication | yes |
| Weight | 0.23832 lbs |
|---|---|
| Dimensions | 6.496063 × 3.149606 × 1.968504 in |
