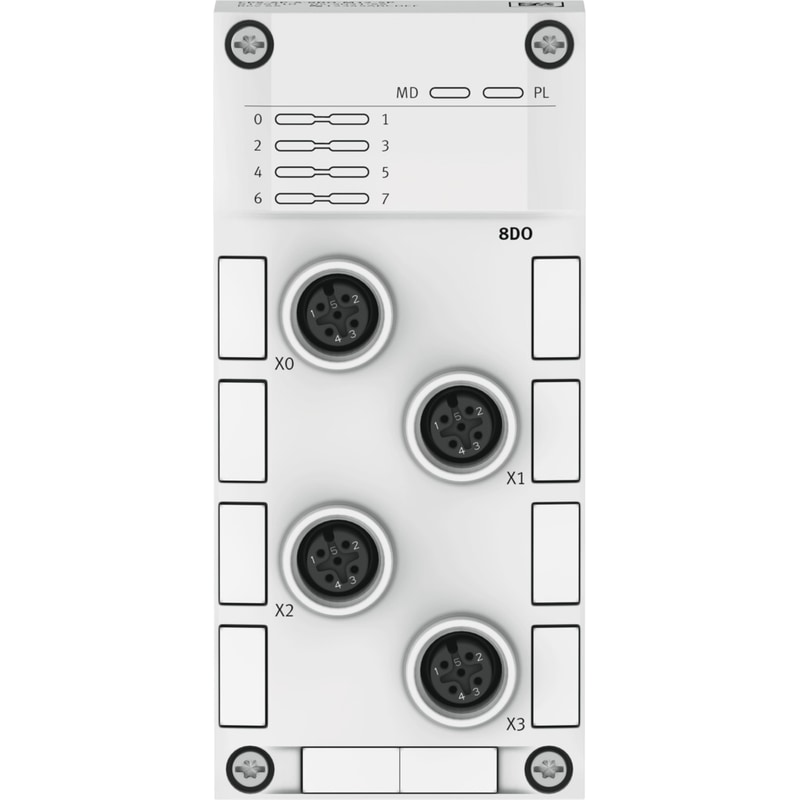

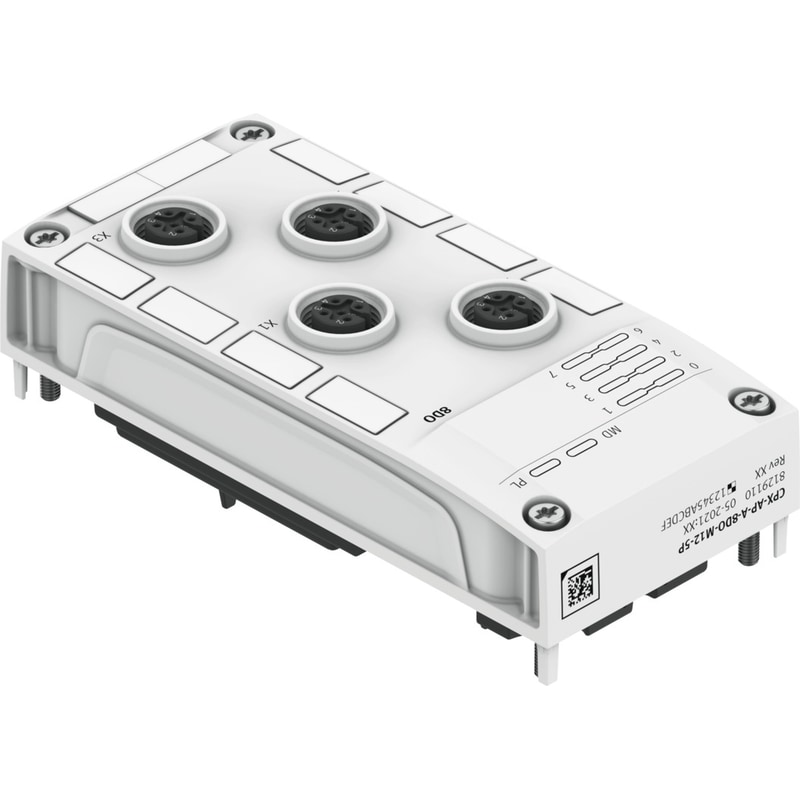

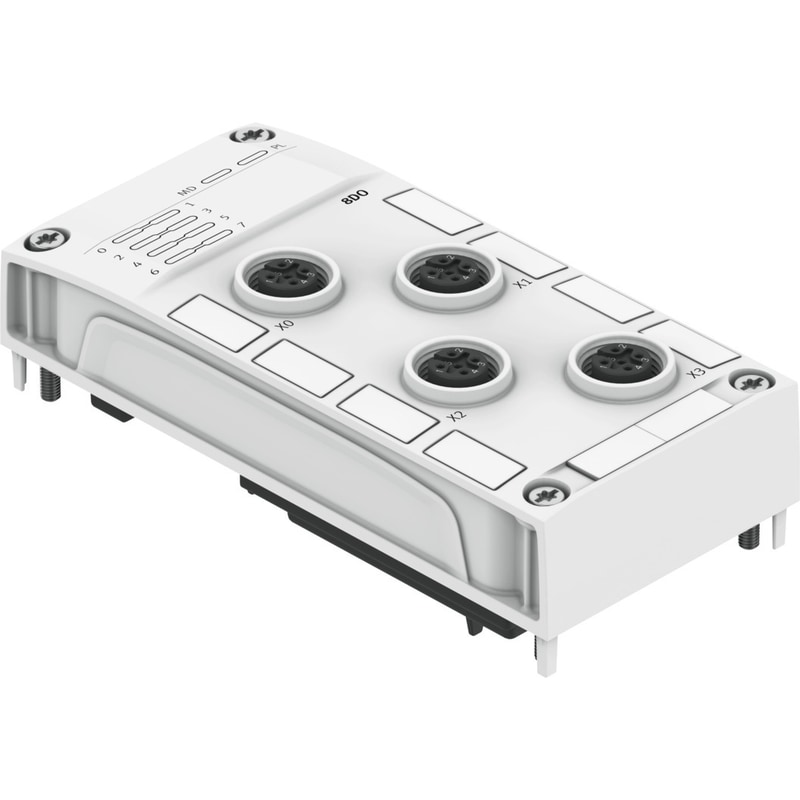

| Dimensions W x L x H | (incl. interlinking block) |
|---|---|
| Width dimension | 50.1mm |
| Type of mounting | Screwed tightly |
| Product weight | 91g |
| Mounting position | Any |
| Ambient temperature | -20°C |
| Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Storage temperature | -20°C |
| Relative air humidity | 5 – 95 % |
| Nominal altitude of use above sea level | <= 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3500m |
| Information on max. installation height | > 2000 m ASL (< 79.5 kPa) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | SG1 on H-rail |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | 30 g/11 ms as per EN 60068-2-27 |
| Protection class | III |
| Contamination level | 2 |
| Overvoltage category | II |
| Max. cable length | 30 m outputs |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Material fire test | UL94 V-0 (housing) |
| Note on materials | RoHS-compliant |
| Housing material | PC |
| Cover material | PBT-reinforced |
| Material of screws | Steel, nickel-plated |
| O-ring material | FPM |
| Diagnostics via LED | Diagnostics per channel |
| Diagnose per internal communication | Load switch-off |
| Max. address capacity outputs | 1byte |
| No. of outputs | 8 |
| Module parameters | Configuration of voltage monitoring, load supply PL |
| Communication interface, protocol | AP |
| Note regarding operating voltage | SELV/PELV fixed power supplies required |
| Note on nominal operating voltage DC | Protected Extra-Low-Voltage as per IEC 60204-1 |
| Nominal operating voltage DC load | 24V |
| Permissible voltage fluctuations load | ± 25 % |
| Nominal operating voltage DC for electronics/sensors | 24V |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 40 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 5 mA |
| Power failure buffering | 10ms |
| Potential separation between the supply voltages electronics/sensor technology and load/valves | yes |
| Reverse polarity protection | yes |
| Electrical connection output, function | Digital output |
| Electrical connection output, connection type | 4x socket |
| Electrical connection output, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical output connection, number of pins/wires | 5 |
| Electrical connection for output, connection pattern | 00995384 |
| Characteristic curve outputs | As per IEC 61131-2, type 0.5 |
| Switching logic at outputs | PNP (positive switching) |
| Fuse protection outputs (short circuit) | Internal electronic fuse per channel |
| Output delay with resistive load | Signal change 0->1: < 200 µs |
| Max. residual current of outputs per module | 4A |
| Electrical isolation of outputs between channels | no |
| Electrical isolation of outputs between channel – internal communication | yes |
| Max. power supply per channel | 0.5Â A |
| Weight | 0.228928 lbs |
|---|---|
| Dimensions | 6.692913 × 2.755906 × 1.968504 in |
