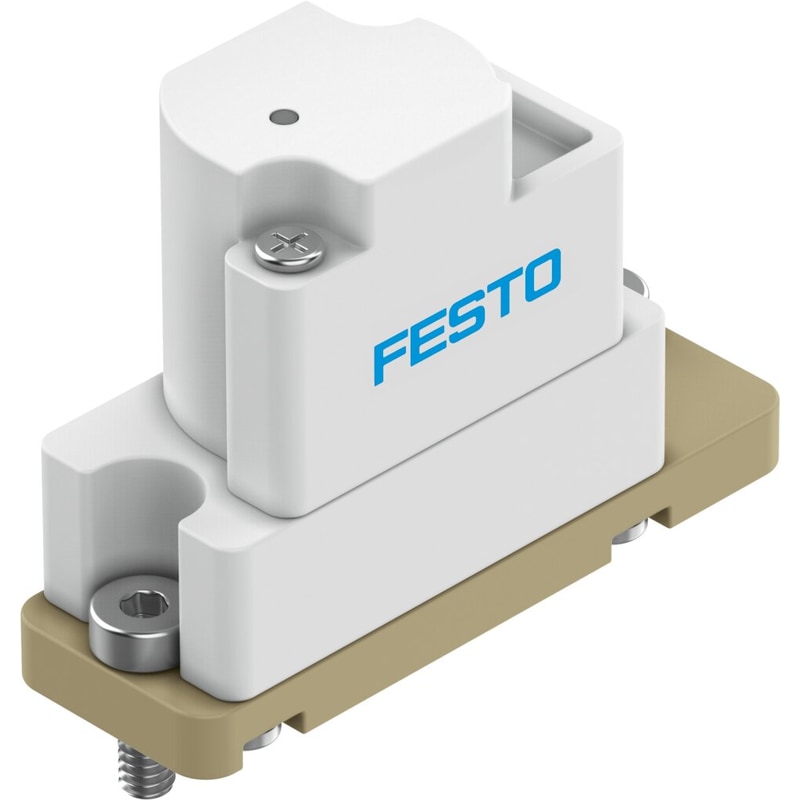

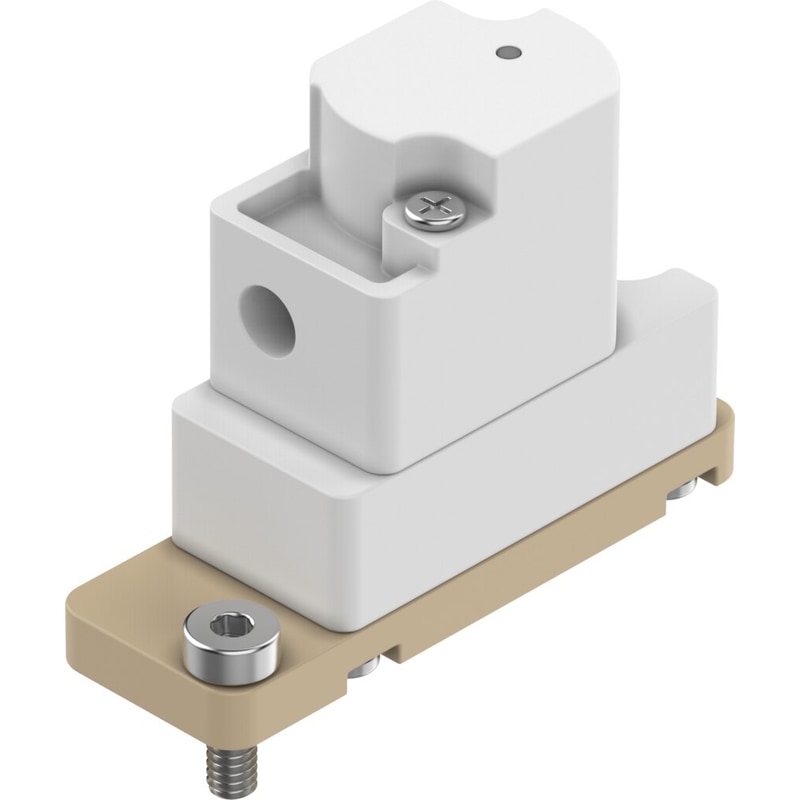

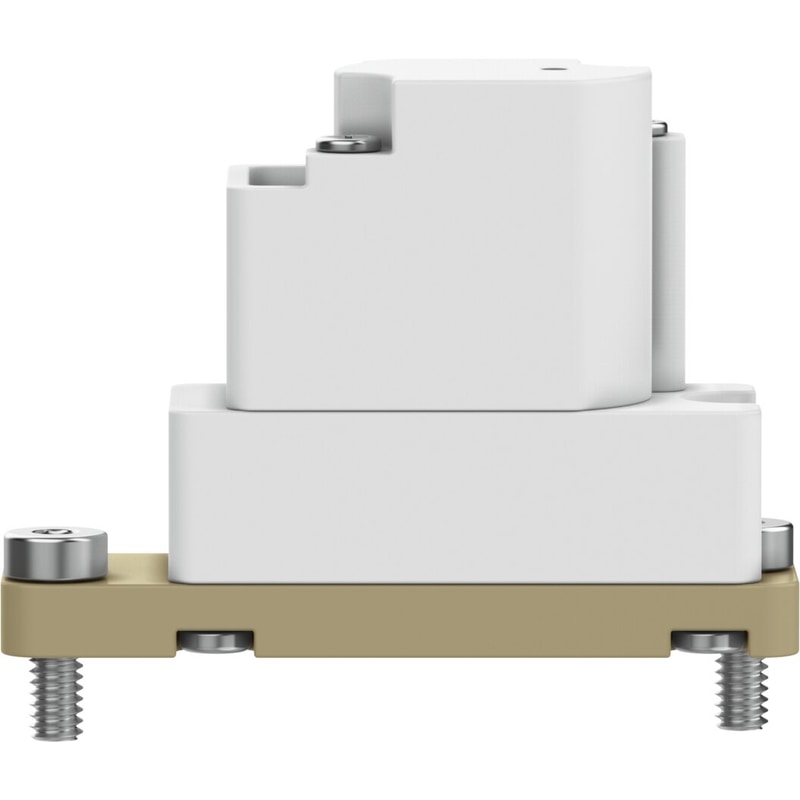

| Structural design | Rocker valve with diaphragm seal |
|---|---|
| Actuation type | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | With through-hole for M2 screw |
| Fitting connection | External thread/external thread |
| Size | 10 |
| Nominal width | 1.6 mm |
| Valve function | 2/2, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Operating pressure | -0.075 MPa … 0.1 MPa |
| Exhaust air function | With flow control option |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Pilot air port 21 | M3 |
| Fluid connector | Flange |
| Pilot pressure MPa | 0.15 MPa … 0.3 MPa |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:1] |
| Symbol | 00997350 |
| Operating medium | Liquid media Gaseous media |
| Information on operating and pilot media | Observe resistance of materials that come into contact with media Maximum particle size 5 µm |
| Internal volume | 35 µl |
| Temperature of medium | 0 °C … 50 °C |
| Ambient temperature | 0 °C … 50 °C |
| Storage temperature | -20 °C … 70 °C |
| Flow rate Kv | 0.034 m³/h |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Housing material | PEEK |
| Seals material | FFPM |
| Product weight | 7 g |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Max. switching frequency | 2 Hz |
| Weight | 0.024758 lbs |
|---|---|
| Dimensions | 6.102362 × 3.937008 × 0.590551 in |
| Valve Function | closed, monostable, 2/2-way |
| Connection Process valve | Male thread/male thread |
| Type of reset | Mechanical spring |
| Material seals | FFPM |
