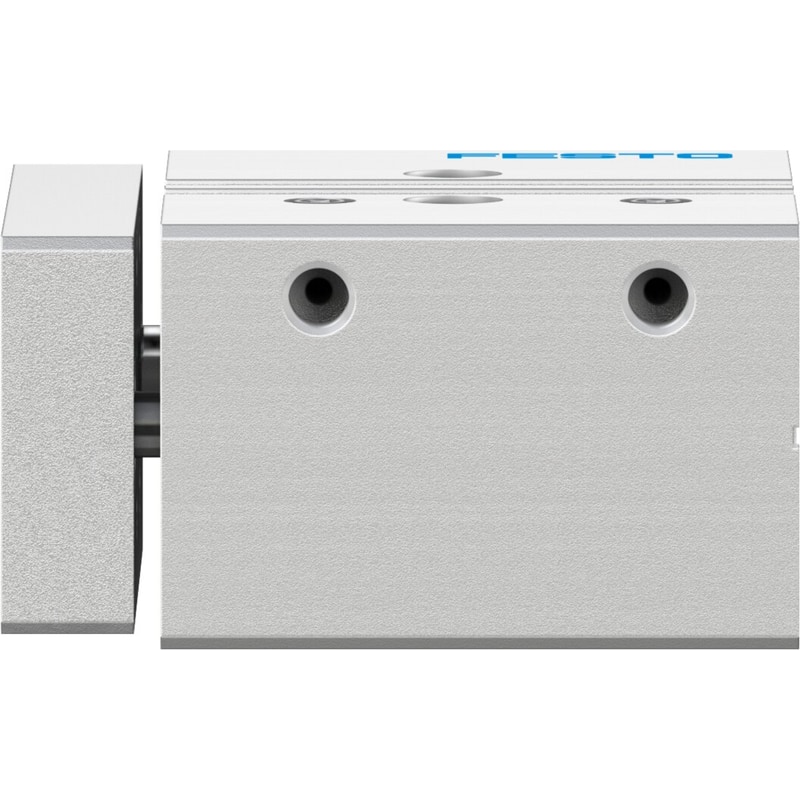

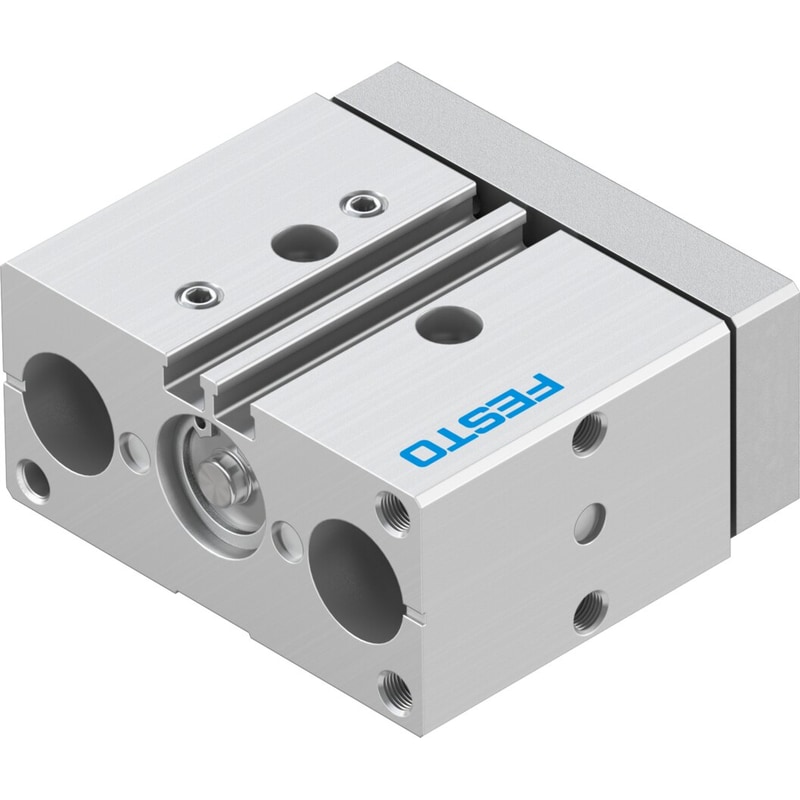

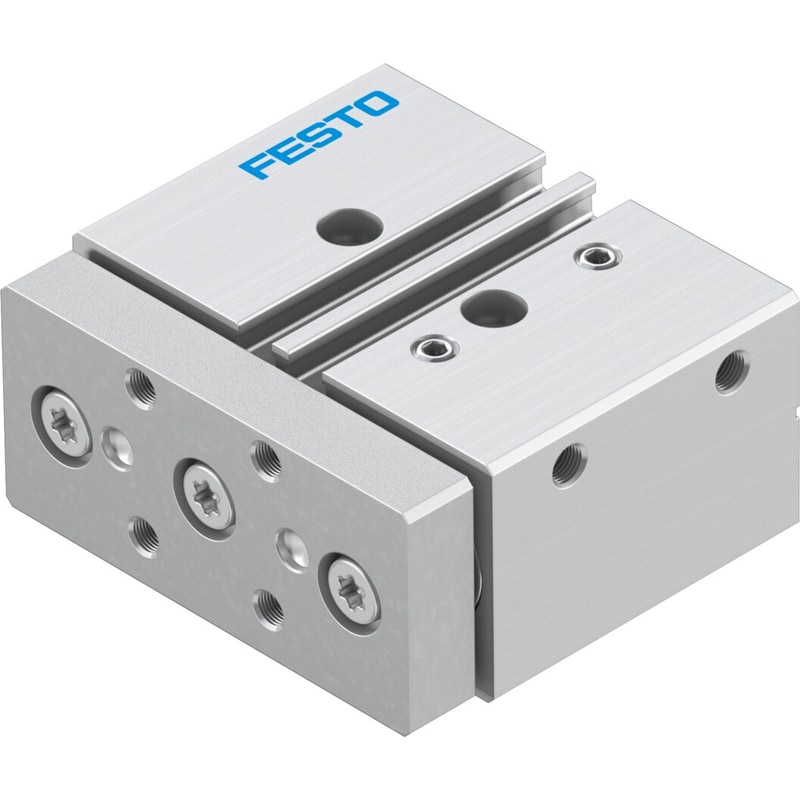

| Distance of centre of gravity of payload to yoke plate xs | 50 mm |
|---|---|
| Stroke | 10 mm |
| Piston diameter | 16 mm |
| Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Structural design | Guide |
| Position sensing | For proximity sensor |
| Symbol | 00991737 |
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Operating pressure | 0.2 MPa … 1 MPa |
| Operating pressure | 2 bar … 10 bar |
| Max. speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| RSBP classification to CD-0033 | F1a |
| Cleanroom class | ISO Class 5 |
| Ambient temperature | -5 °C … 60 °C |
| Impact energy in the end positions | 0.15 J |
| Max. force Fy | 389 N |
| Max. force Fy static | 415 N |
| Max. force Fz | 389 N |
| Max. force Fz static | 415 N |
| Max. torque Mx | 8.95 Nm |
| Max. static moment Mx | 9.55 Nm |
| Max. torque My | 3.89 Nm |
| Max. static moment My | 4.15 Nm |
| Max. torque Mz | 3.89 Nm |
| Max. static moment Mz | 4.15 Nm |
| Max. permissible torque load Mx as a function of the stroke | 2.19 Nm |
| Max. payload as a function of the stroke at defined distance xs | 45 N |
| Theoretical force at 6 bar, retracting | 90 N |
| Theoretical force at 6 bar, advancing | 121 N |
| Moving mass | 212 g |
| Product weight | 426 g |
| Center of gravity of the moving mass as a function of the stroke | 13.4 mm |
| Alternative connections | See product drawing |
| Pneumatic connection | M5 |
| Note on materials | Free of copper and PTFE RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel |
| Weight | 0.936436 lbs |
|---|---|
| Dimensions | 0.275591 × 0.23622 × 0.11811 in |
| Piston diameter | 16 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 121 N |
| Stroke | 10 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position detection | Via proximity switch |
