| Size | 3 |
|---|---|
| Stroke | 4 mm |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position sensing | None |

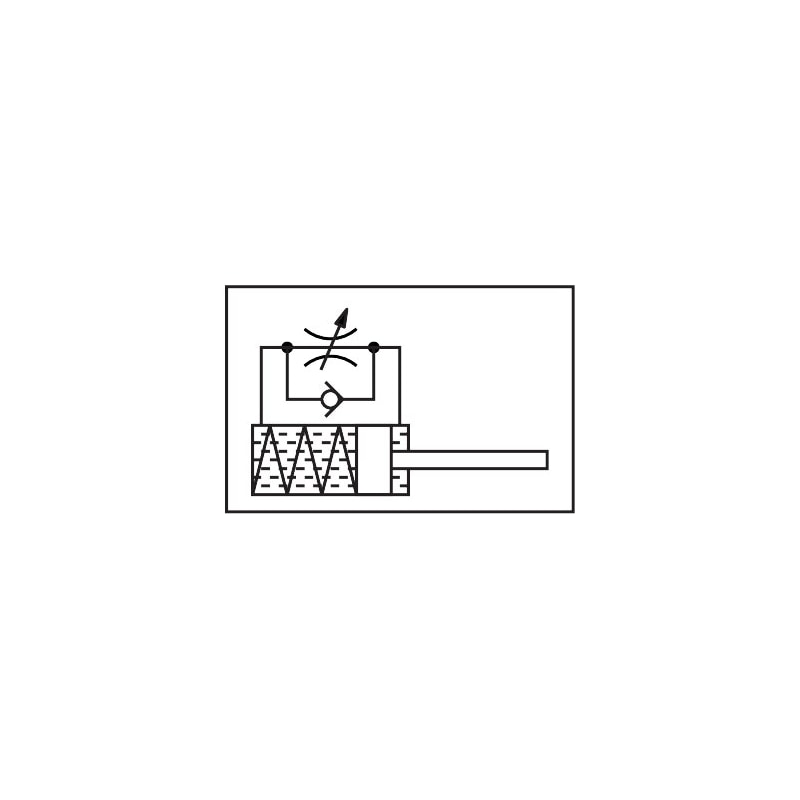

| Symbol | 00991495 |
| Max. impact velocity | 1 m/s |
| Reset time at room temperature | 0.2 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Single-acting Pushing |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -10 °C … 80 °C |
| Cushioning length | 4 mm |
| Max. stop force | 80 N |
| Max. tightening torque | 1 Nm |
| Max. energy absorption per stroke | 0.4 J |
| Max. energy absorption per hour | 4500 J |
| Max. residual energy | 0.004 J |
| Resetting force | 0.5 N |
| Product weight | 7.8 g |
| Type of mounting | With threaded sleeve |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | High-alloy steel |
| Piston rod material | High-alloy steel |
| Weight | 0.020944 lbs |
|---|---|
| Dimensions | 3.346457 × 0.787402 × 0.393701 in |
| Stroke | 4 mm |
| Max. energy consumption per stroke | 0.4 J |
| Cushioning | Self-adjusting |
