| Width | 10 mm |
|---|---|
| Mounting position | Any |
| Pneumatic vertical stacking | Shut-off for 1 |

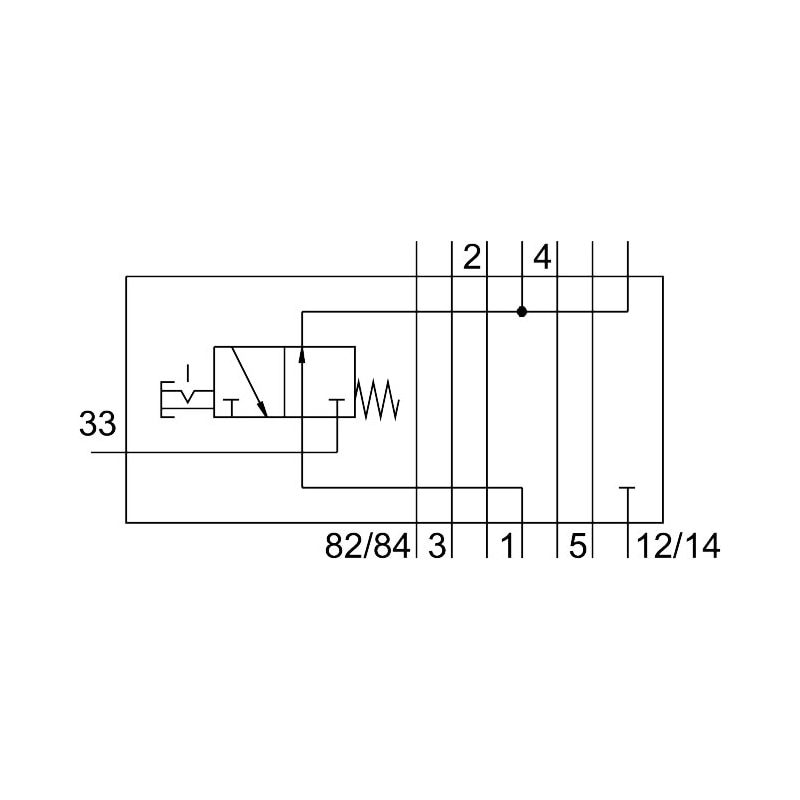

| Symbol | 00991889 |
| Operating pressure | 3 bar … 8 bar |
| Standard nominal flow rate pressurization | 103 l/min |
| Standard nominal flow rate exhaust air | 213 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 240 g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy PA-reinforced |
| Weight | 0.162613 lbs |
|---|---|
| Dimensions | 6.692913 × 3.937008 × 1.181102 in |
