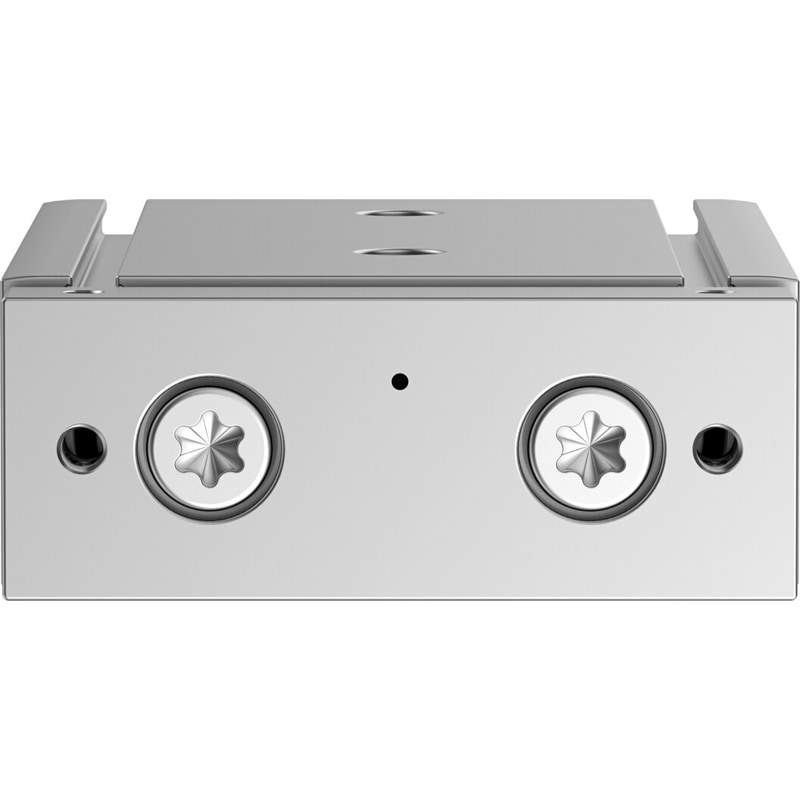

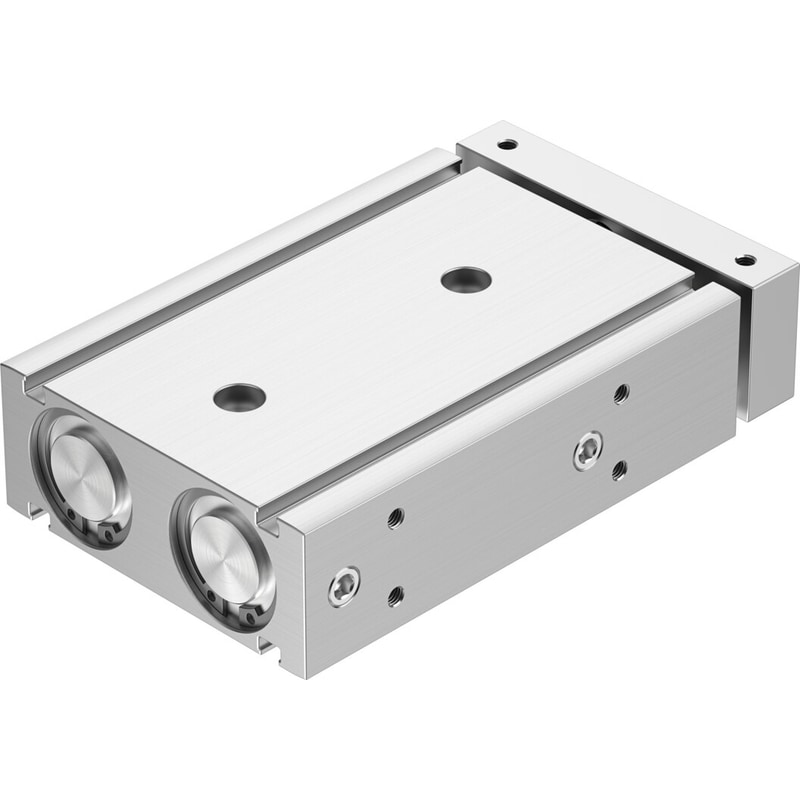

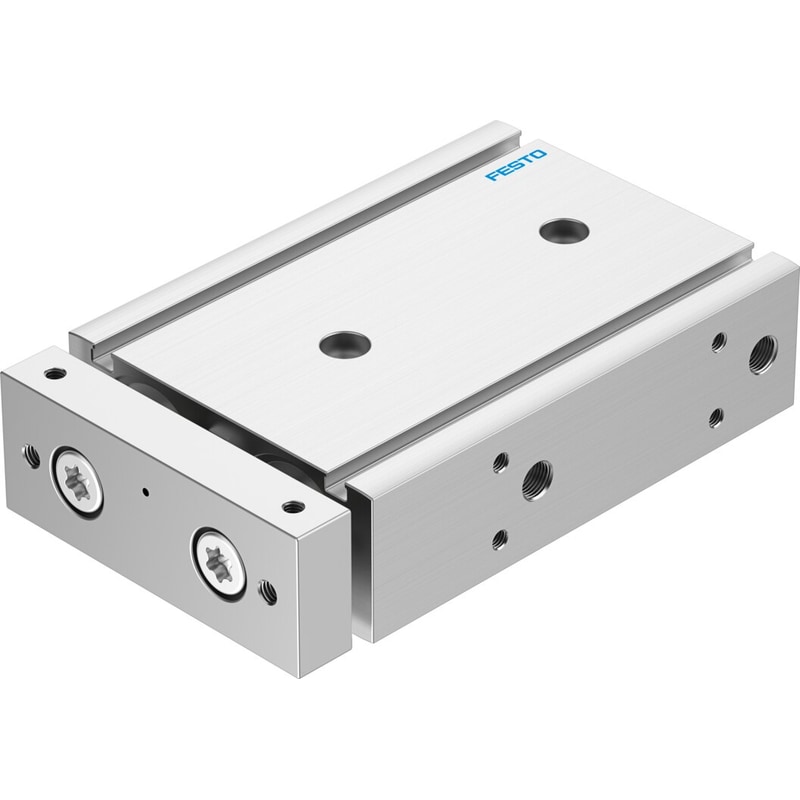

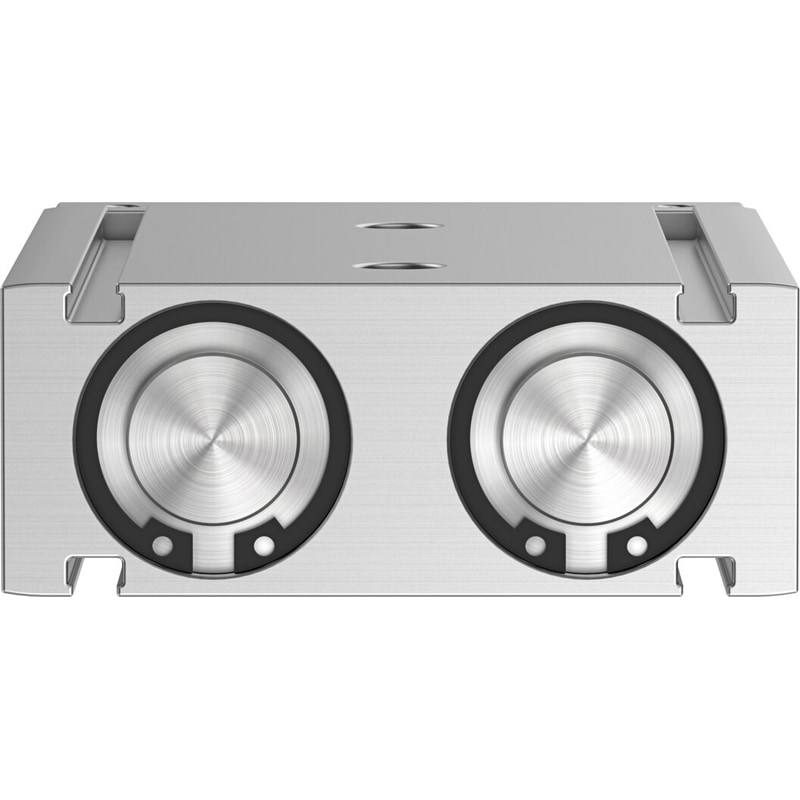

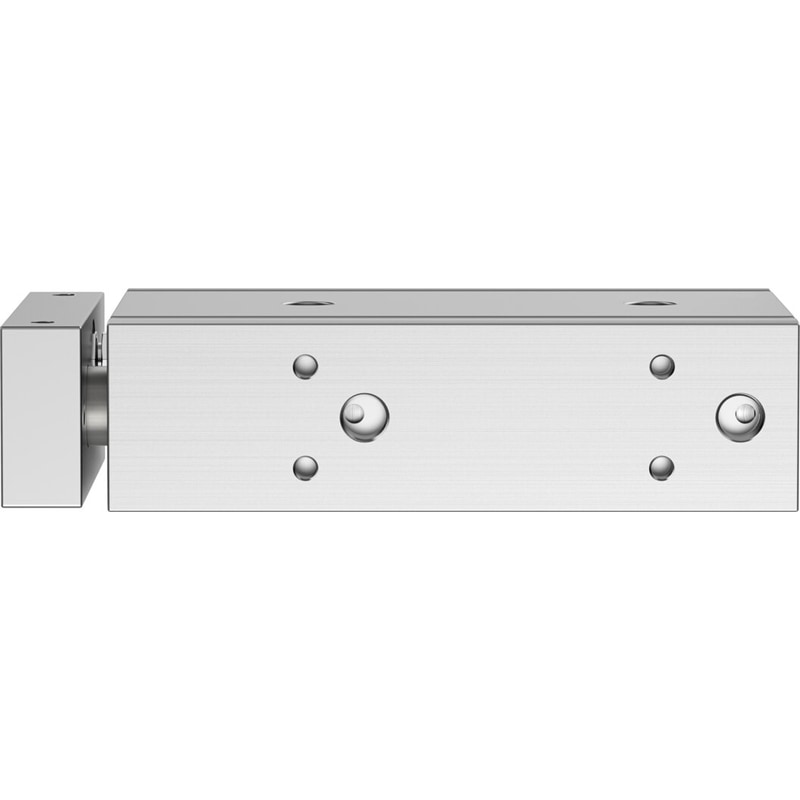

| Stroke | 60 mm |
|---|---|
| Adjustable end position range/length | 10 mm |
| Piston diameter | 32 mm |
| Type code | DGTZ |
| Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Sliding guide |
| Design | Guide |
| Position sensing | For proximity sensor |
| Symbol | 00991249 |
| Operating pressure | 1 bar … 8 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Ambient temperature | -10 °C … 80 °C |
| Impact energy in the end positions | 0.4 J |
| Max. payload as a function of the stroke at defined distance xs | 17.6 N |
| Theoretical force at 6 bar, retracting | 724 N |
| Theoretical force at 6 bar, advancing | 966 N |
| Moving mass | 1468 g |
| Product weight | 1468 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel |
| Weight | 3.197915 lbs |
|---|---|
| Dimensions | 6.692913 × 1.574803 × 5.511811 in |
| Piston diameter | 32 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 966 N |
| Stroke | 60 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position detection | Via proximity switch |
