| Size | 4 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40µm |
| Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge |
| Max. condensate volume | 16.5ml |
| Controller function | Outlet pressure constant |

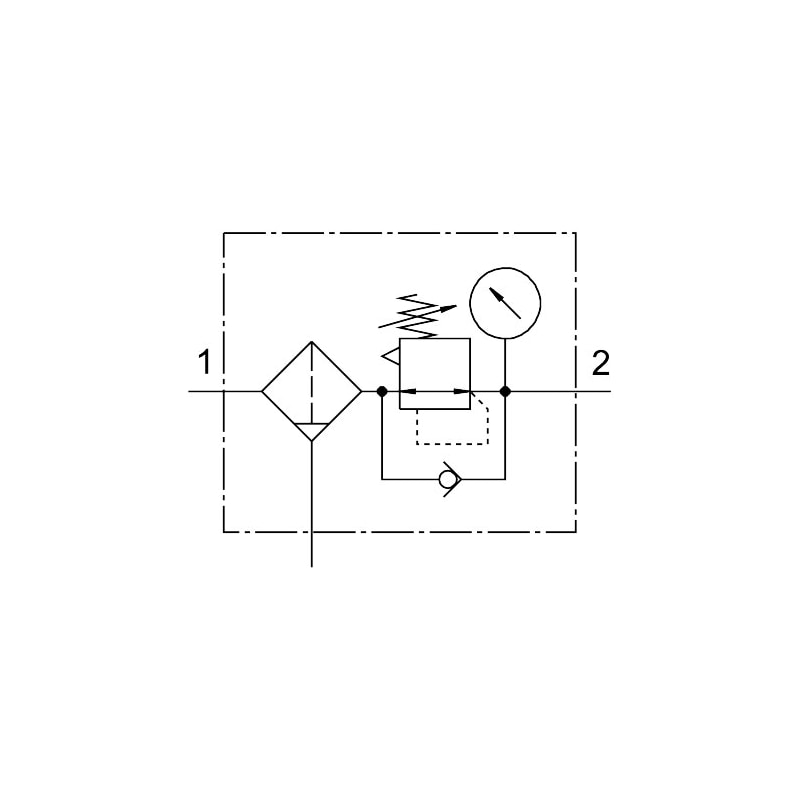

| Symbol | 00991589 |
| Displayable unit(s) | bar |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.1MPa |
| Operating pressure | 1bar |
| Pressure regulation range | 0.3bar |
| Max. pressure hysteresis | 0.05MPa |
| Max. pressure hysteresis | 0.5bar |
| Max. pressure hysteresis | 7.25psi |
| Standard nominal flow rate | 1700l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -5°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | -5°C |
| Ambient temperature | -5°C |
| Product weight | 207g |
| Type of mounting | Optionally: |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Compressed air filter material | PE |
| Housing material | PA-reinforced |
| Material of bowl | PC |
| Valve tappet material | POM |
| Weight | 0.575407 lbs |
|---|---|
| Dimensions | 10.629921 × 4.724409 × 2.362205 in |
| Size | 4 |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge, Directly controlled piston regulator |
| Max. condensate volume | 16.5 ml |
| Controller function | Outlet pressure constant, With secondary exhausting, With return flow function |
| Degree of condensate separation | >75 % |
| Symbol | 00991589 |
| Displayable unit(s) | bar, psi |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 bar … 10 bar |
| Pressure regulation range | 0.3 bar … 7 bar |
| Max. pressure hysteresis | 7.25 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 1700 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Storage temperature | -5 °C … 50 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | -5 °C … 50 °C |
| Ambient temperature | -5 °C … 50 °C |
| Pore size | <40 µm |
| Product weight | 207 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel, Steel, galvanized |
| Compressed air filter material | PE |
| Housing material | PA-reinforced |
| Material of bowl | PC |
| Valve tappet material | POM |
