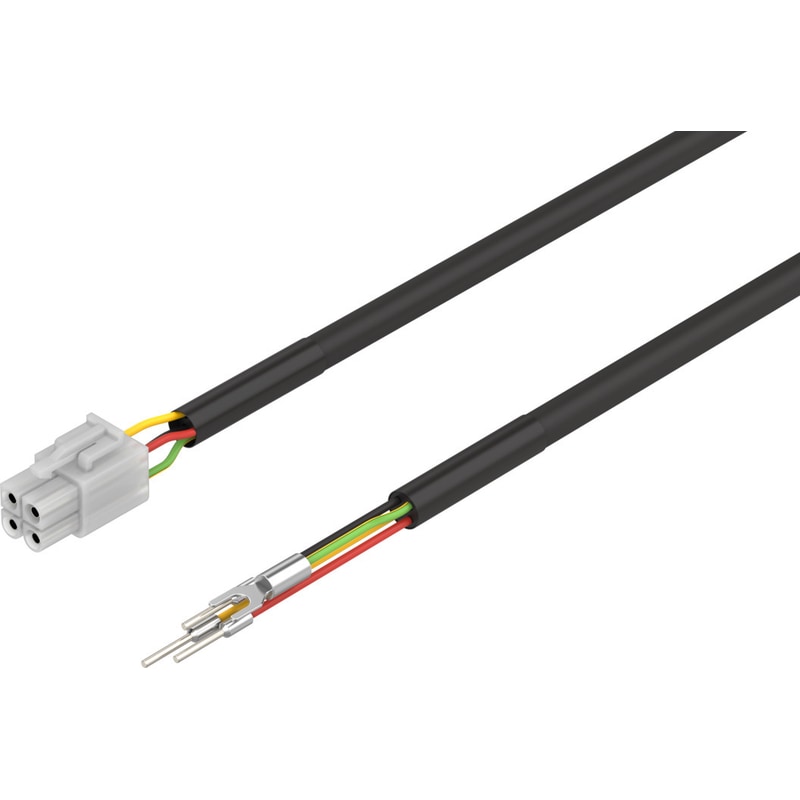

| Type code | NEBM |
|---|---|
| Nominal conductor cross section | AWG18 |
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Connection diagram H6, coded for motor |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection for input 1, connection pattern | 00995790 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, occupied pins/wires | 4 |
| DC operating voltage range | 0 V … 300 V |
| Operating voltage range AC | 0 V … 300 V |
| Current rating at 40°C | 9.5 A |
| Surge resistance | 2 kV |
| Cable length | 20 m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 55 mm |
| Bending radius, flexible cable installation | ≥ 55 mm |
| Cable diameter | 7.3 mm |
| Cable design | 4 x 0.79 mm² |
| Nominal conductor cross section | 0.79 mm² |
| Wire ends | Cable end sleeve |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 °C … 90 °C |
| Ambient temperature with flexible cable installation | -25 °C … 90 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directiveAs per EU RoHS directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Black |
| Housing material | PA |
| Housing colour | White |
| Insulating sheath material | PVC |
| Weight | 4.326572 lbs |
|---|---|
| Dimensions | 12.204724 × 11.417323 × 3.149606 in |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connector system | coded for motor, Connection pattern H6 |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connector system | Open end |
| Cable length | 20 m |
