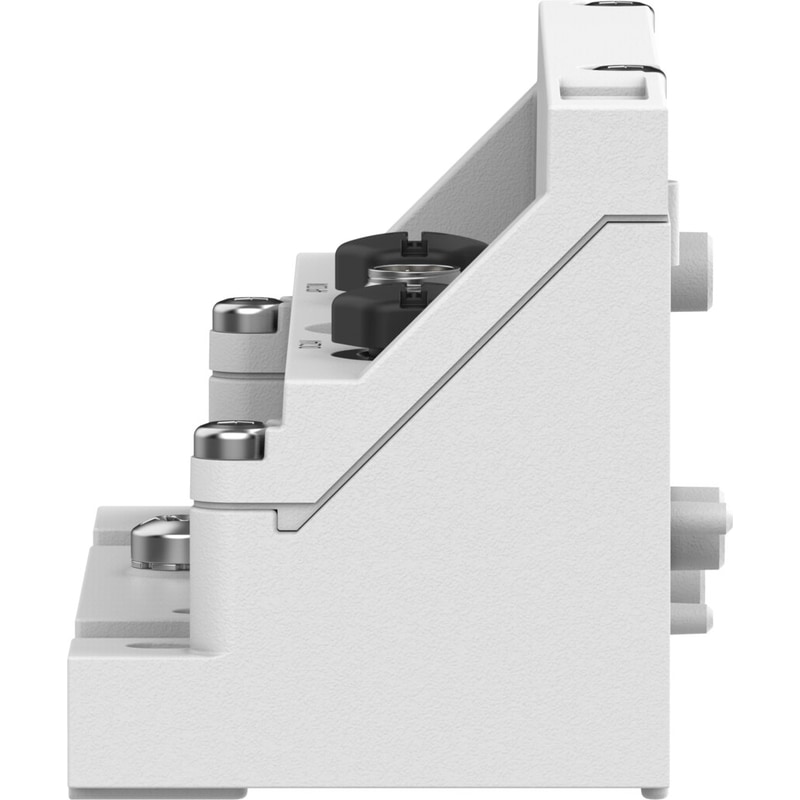

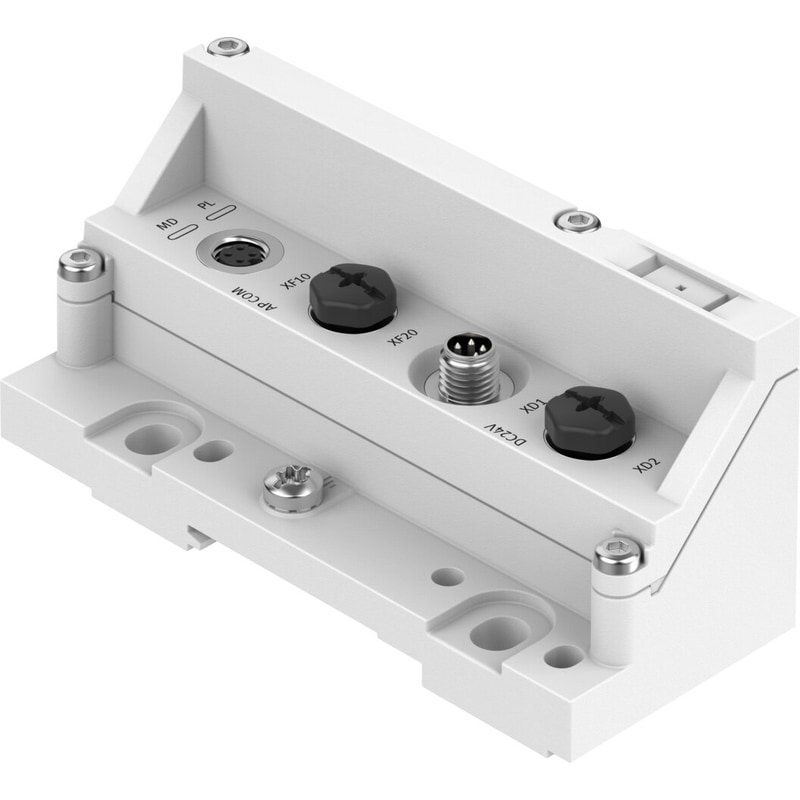

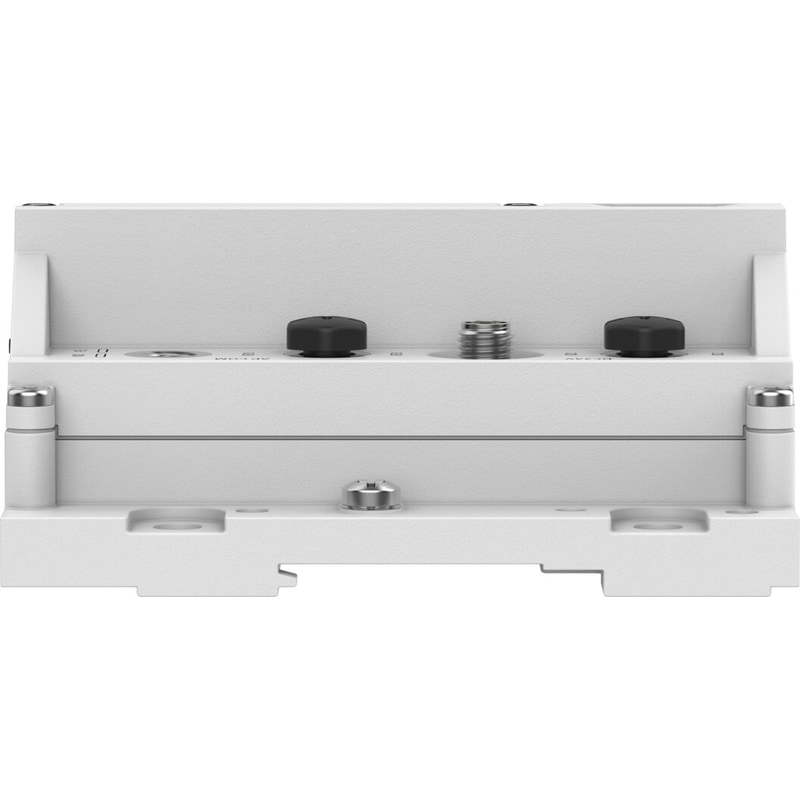

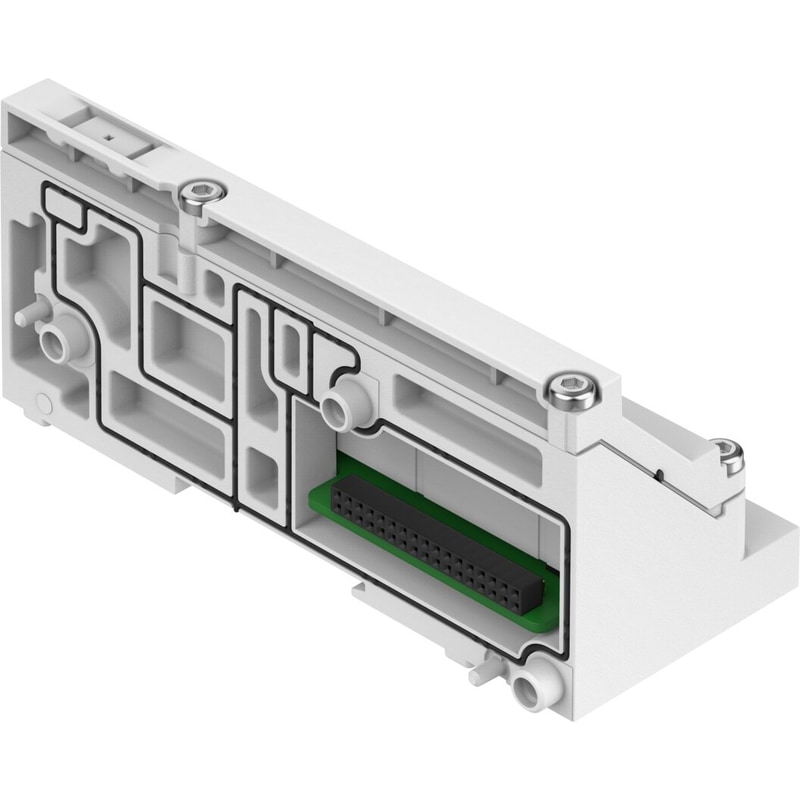

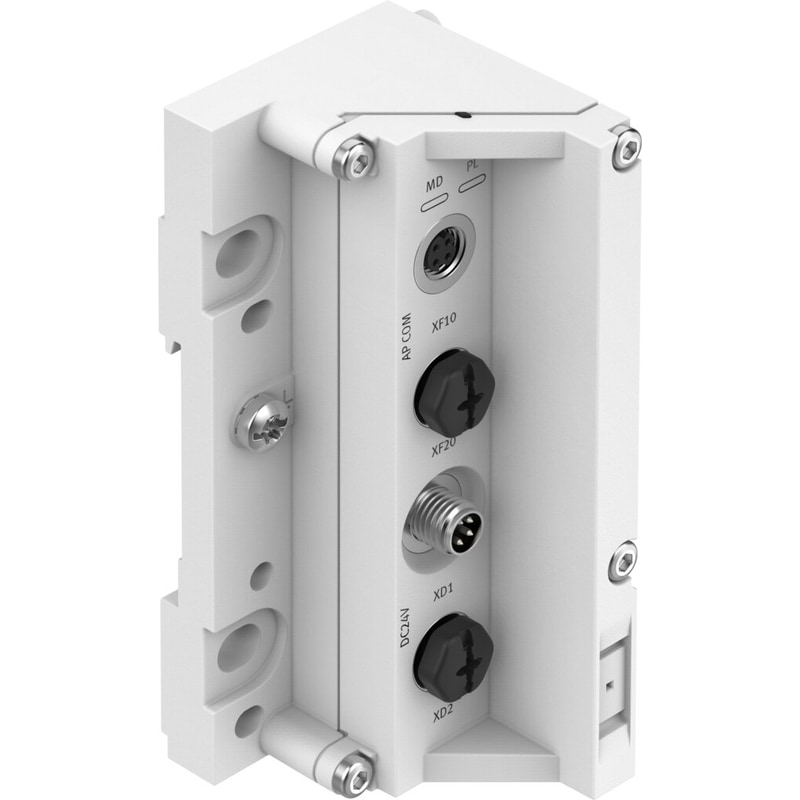

| Relative air humidity | 5 – 95 %Non-condensing |
|---|---|
| Note on degree of protection | In mounted stateUnused connections sealed |
| KC characters | KC EMC |
| Max. cable length | 50 m system communication |
| Protection against direct and indirect contact | PELVSELV |
| Diagnose per internal communication | Electronics/sensors overvoltageElectronics/sensors undervoltage |
| Connection position | Top |
| Voltage forwarding, connection type | Socket |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 30 mA |
| Communication interface, function | System communication XF10 IN / XF20 OUT |
| Diagnostics via LED | Diagnostics per moduleLoad power supply |
| Communication interface, shielding | yes |
| Intrinsic current consumption at nominal operating voltage load | Typically 15 mA |
| Electrical isolation of outputs between channel – internal communication | yes |
| Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
| Voltage forwarding, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Voltage forwarding, function | Outgoing electronics/sensors and load |
| Communication interface, protocol | AP-COM |
| Dimensions W x L x H | 43.1 mm x 107.5 mm x 50.2 mm |
| Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 |
| Max. power supply | 2 x 4 A (external fuse required) |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Permissible voltage fluctuations load | ± 10% |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Power supply, function | Incoming electronics/sensors and load |
| Power supply, type of connection | Plug |
| Communication interface, connection type | 2x socket |
| Threaded sleeve material | Brass, nickel-plated |
| Power supply, number of pins/wires | 4 |
| Power failure buffering | 10 ms |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Voltage forwarding, number of pins/wires | 4 |
| Communication interface, number of pins/wires | 4 |
| Nominal operating voltage DC load | 24 V |
| Type code | VMPAL |
| Reverse polarity protection | yes |
| Max. no. of valve positions | 32 |
| Valve manifold design | Valve sizes can be mixed |
| Max. no. of solenoid coils | 32 |
| Fuse protection (short circuit) | Internal electronic fuse per channel |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 3 – High corrosion stress |
| Storage temperature | -40 °C … 70 °C |
| Degree of protection | IP65IP67 |
| Ambient temperature | -5 °C … 50 °C |
| Certification | RCM compliance mark |
| Max. tightening torque | 1.7 Nm |
| Product weight | 194 g |
| Type of mounting | Tie rod |
| Note on materials | RoHS-compliant |
| Housing material | Die cast aluminum, paintedPA-reinforced |
| Weight | 0.461868 lbs |
|---|---|
| Dimensions | 8.858268 × 3.346457 × 1.968504 in |
