| Size | 2 |
|---|---|
| Type code | MS2-LFR |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |

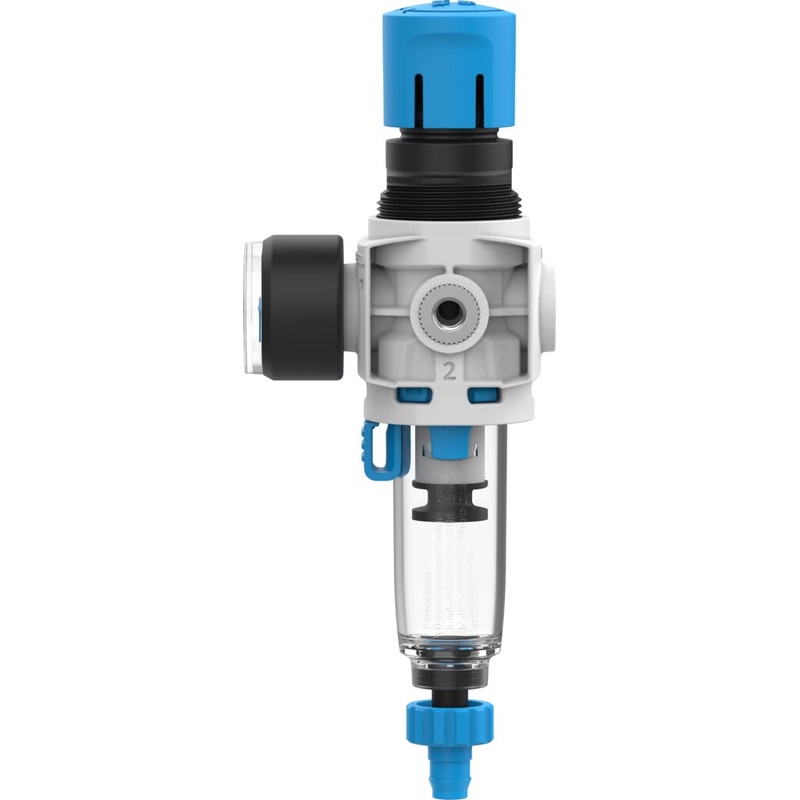

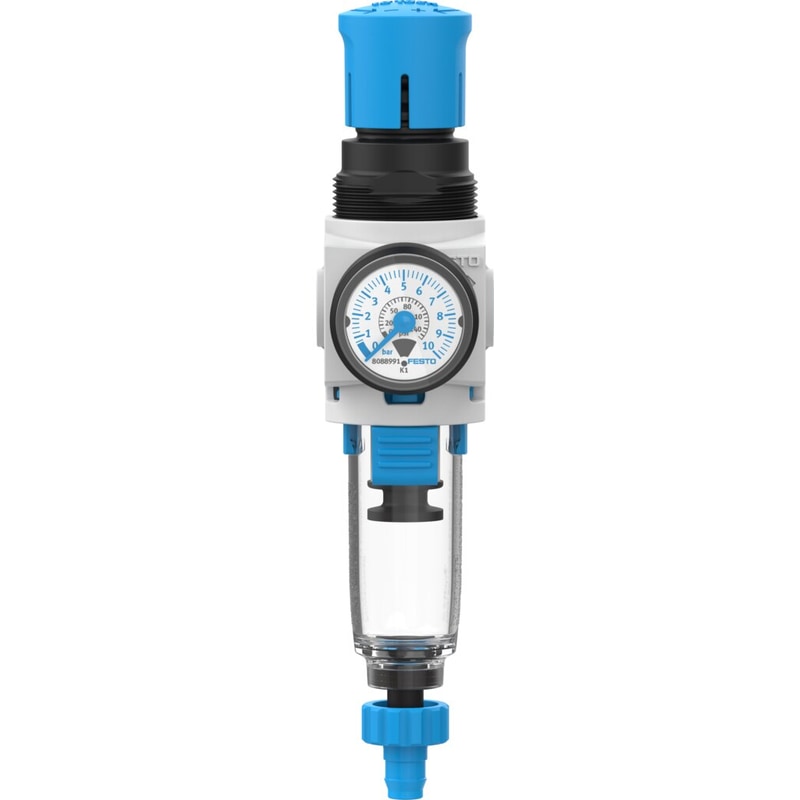

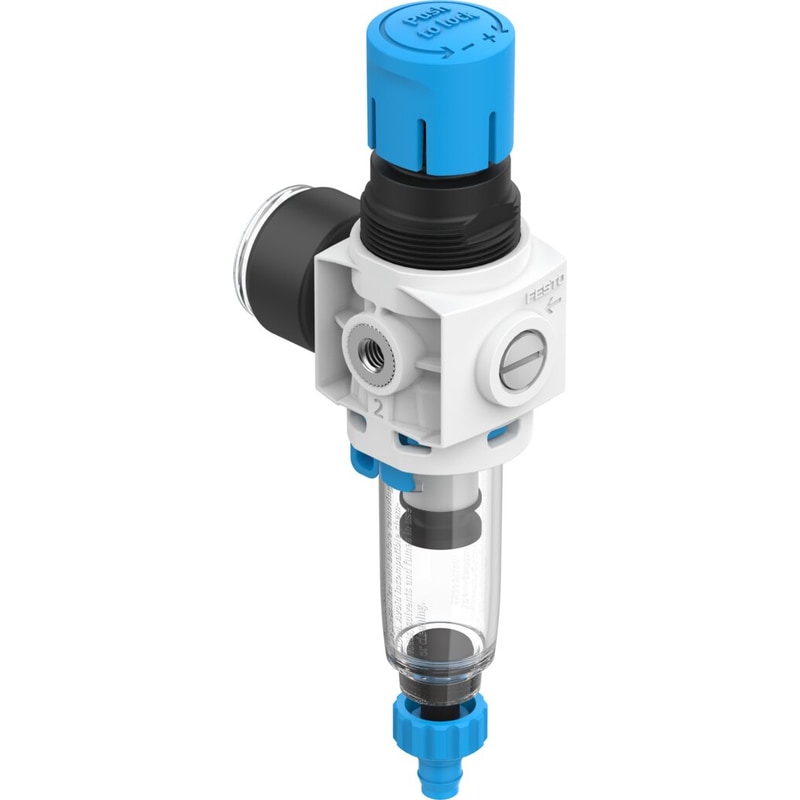

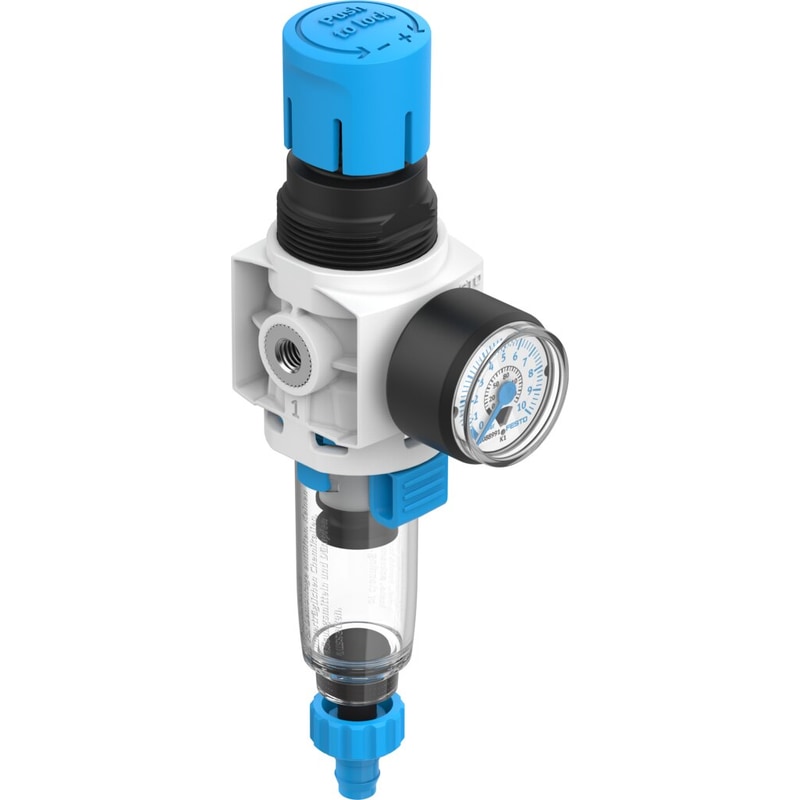

| Design | Filter regulator with pressure gauge |
| Max. condensate volume | 3 ml |
| Controller function | With secondary exhaustingOutlet pressure constantWith return flow function |

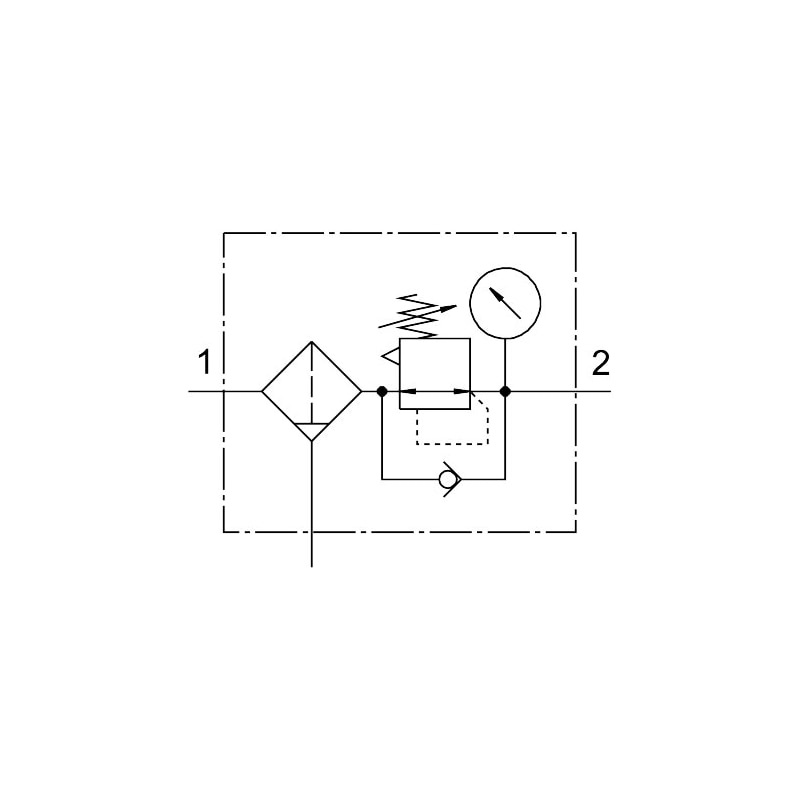

| Symbol | 991589 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 bar … 10 bar |
| Pressure regulation range | 0.5 bar … 7 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate | 140 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Storage temperature | -5 °C … 50 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | -5 °C … 50 °C |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 47.3 g |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Compressed air filter material | PE |
| Housing material | PA |
| Diaphragm material | NBR |
| Material of bowl | PC |
| Separating disc material | POM |
| Valve tappet material | NBRWrought aluminum alloy |
| Weight | 0.11464 lbs |
|---|---|
| Dimensions | 5.905512 × 2.755906 × 1.574803 in |
| Size | 2 |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5 µm |
| Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge |
| Max. condensate volume | 3 ml |
| Controller function | Outlet pressure constant, With secondary exhausting, With return flow function |
| Symbol | 00991589 |
| Displayable unit(s) | bar, psi |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 bar … 10 bar |
| Pressure regulation range | 0.5 bar … 7 bar |
| Max. pressure hysteresis | 3.625 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 140 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 6 according to ISO 14644-1 |
| Storage temperature | -5 °C … 50 °C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | -5 °C … 50 °C |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 46.8 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Compressed air filter material | PE |
| Housing material | PA-reinforced |
| Diaphragm material | NBR |
| Material of bowl | PC |
| Separating disc material | POM |
| Valve tappet material | Wrought aluminum alloy, NBR |
