| Size | 2 |
|---|---|
| Type code | MS2-LR |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | Directly controlled diaphragm regulator |
| Controller function | Outlet pressure constantWith secondary exhaustingWith return flow function |

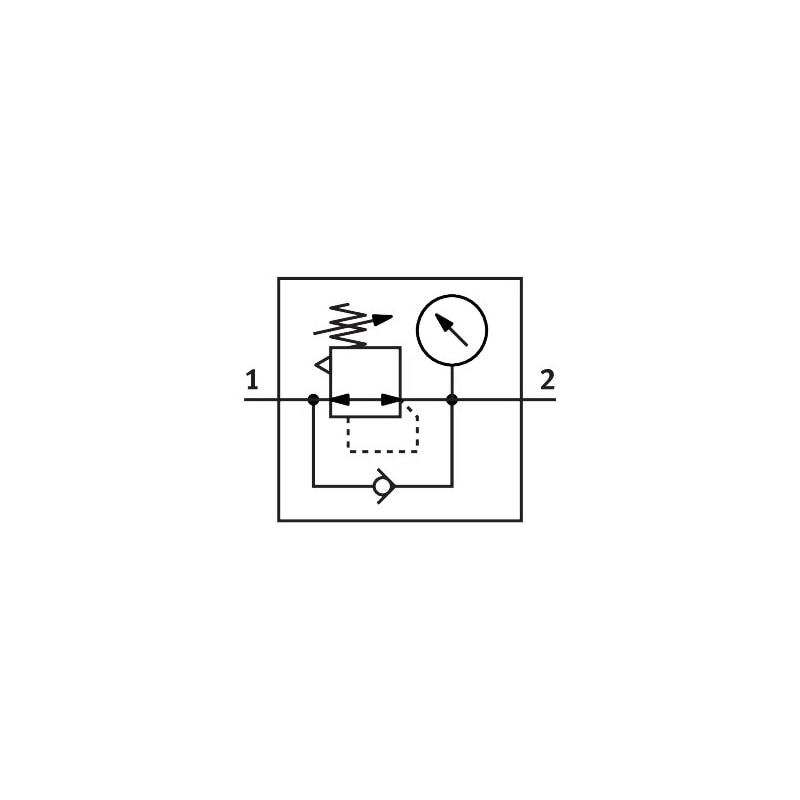

| Symbol | 991558 |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 bar … 8 bar |
| Pressure regulation range | 0.5 bar … 7 bar |
| Max. pressure hysteresis | 0.25 bar |
| Standard nominal flow rate | 350 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Storage temperature | -5 °C … 50 °C |
| Temperature of medium | -5 °C … 50 °C |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 36.6 g |
| Type of mounting | Front panel mountingLine installationWith accessoriesOptionally: |
| Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | QS-6 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Housing material | PA |
| Diaphragm material | NBR |
| Valve tappet material | NBRWrought aluminum alloy |
| Weight | 0.094711 lbs |
|---|---|
| Dimensions | 2.755906 × 2.362205 × 1.377953 in |
| Size | 2 |
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Structural design | Directly controlled diaphragm regulator |
| Controller function | Outlet pressure constant, With secondary exhausting, With return flow function |
| Symbol | 00991558 |
| Displayable unit(s) | MPa |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1 bar … 8 bar |
| Pressure regulation range | 0.5 bar … 7 bar |
| Max. pressure hysteresis | 3.625 psi |
| Normal nominal flow rate (normalized to DIN 1343) | 350 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 6 according to ISO 14644-1 |
| Storage temperature | -5 °C … 50 °C |
| Temperature of medium | -5 °C … 50 °C |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 36.1 g |
| Type of mounting | With accessories |
| Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | QS-6 |
| Note on materials | RoHS-compliant |
| Lower cover material | PA |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Housing material | PA-reinforced |
| Diaphragm material | NBR |
| Valve tappet material | Wrought aluminum alloy, NBR |
