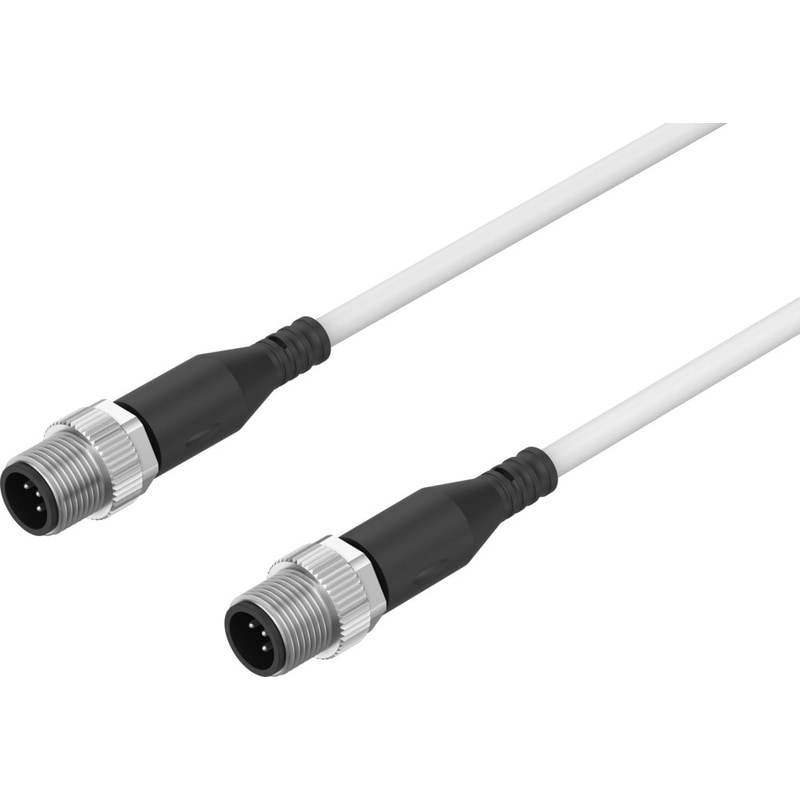

| Type code | NEBC |
|---|---|
| Cable designation | With accessories |
| Contact durability | 500 |
| Product weight | 163 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 995383 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Round |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 5 |
| Electrical connection 2, type of mounting | Screw-type lock |
| Electrical connection 2, connection pattern | 995383 |
| DC operating voltage range | 0 V … 30 V |
| Current rating at 40°C | 0.166666666666667 |
| Surge resistance | 0.8 kV |
| Cable length | 1.5 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Cable diameter | 5 mm |
| Cable design | 4 x 0.34 mm²Shielded |
| Nominal conductor cross section | 0.34 mm² |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -25 °C … 70 °C |
| Ambient temperature with flexible cable installation | -5 °C … 70 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Light gray |
| Housing material | TPE-U(PUR) |
| Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated |
| Material of pin contacts | Bronze, gold-platedBrass, gold-plated |
| Insulating sheath material | PVC |
| Weight | 0.189377 lbs |
|---|---|
| Dimensions | 2.362205 × 2.362205 × 0.787402 in |
| Electrical connection 1, connection type | Plugs |
| Electrical connection 1, connector system | A-coded to EN 61076-2-101, M12x1 |
| Electrical connection 2, connection type | Plugs |
| Electrical connection 2, connector system | A-coded to EN 61076-2-101, M12x1 |
| Cable length | 1.5 m |
