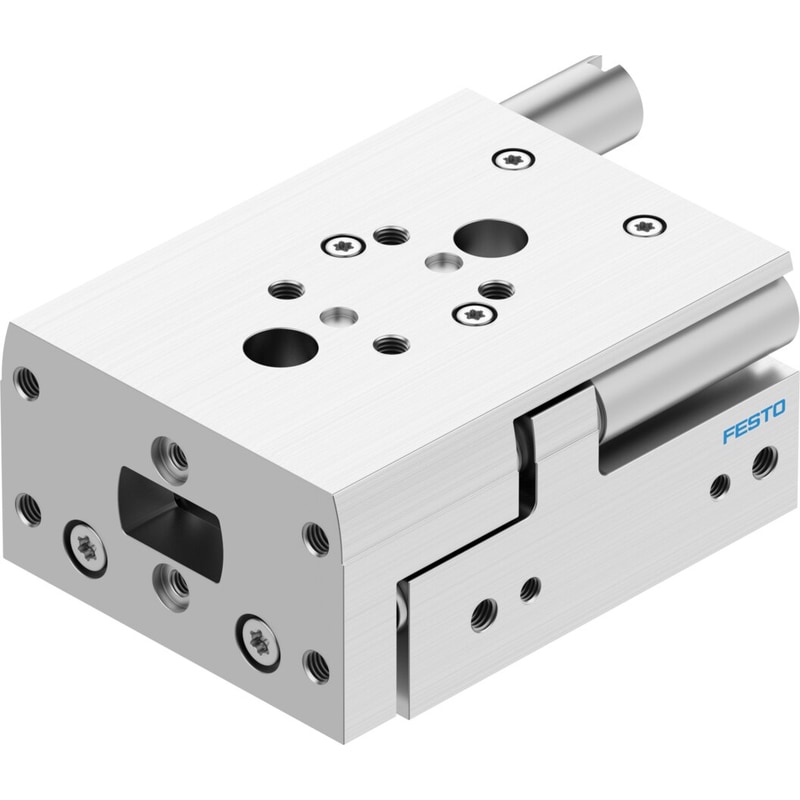

Name: Mini slide DGST-16-30-PA
Brand: Festo
SKU: 8085132
Availability: InStock

mini slide
DGST-16-30-PA
Part number: 8085132

New

Stroke	30 mm
Adjustable endposition range/front length	21.7 mm
Adjustable endposition range/rear length	22 mm
Piston diameter	16 mm
Operating mode of drive unit	Yoke
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Guide	Recirculating ball bearing guide
Design structure	Yoke kinematics
Position detection	For proximity sensor
Operating pressure	1 … 8 bar
Max. speed	0.8 m/s
Repetition accuracy	<= 0,3 mm

Weight	1.501979 lbs
Dimensions	6.299213 × 3.937008 × 2.362205 in
Stroke	30 mm
Adjustable end-position range/front length	22.8 mm
Adjustable end-position range/rear length	21.5 mm
Piston diameter	16 mm
Drive unit operating mode	Yoke
Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any
Guide	Recirculating ball bearing guide
Structural design	Twin piston, Yoke, Piston rod, Slide
Position sensing	For proximity sensor
Symbol	00991249
Operating pressure	14.5 psi … 116 psi
Max. speed	0.8 m/s
Repetition accuracy	<= 0.3 mm
Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 – Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14	Class 6 according to ISO 14644-1
Ambient temperature	-10 °C … 60 °C
Impact energy in the end positions	0.25 J
Cushioning length	1 mm
Max. force Fy	860 N
Max. force Fz	860 N
Max. torque Mx	11.3 Nm
Max. torque My	7.5 Nm
Max. torque Mz	7.5 Nm
Theoretical force at 6 bar, retracting	207 N
Theoretical force at 6 bar, advancing	241 N
Moving mass	318 g
Product weight	592 g
Type of mounting	With through-hole
Pneumatic connection	M5
Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy
Seals material	HNBR
Guide material	POM, TPE-E, High-alloy steel
Housing material	Wrought aluminum alloy
Piston rod material	High-alloy stainless steel

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Mini slide DGST-16-30-PA
