| Drive pinion effective diameter | 28.65 mm |
|---|---|
| Working stroke | 600 mm |
| Size | 55 |
| Toothed belt elongation | 0.0021 |
| Toothed belt pitch | 3 mm |
| Type code | ELGR |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Stepper motorServo motor |
| Symbol | 991212 |
| Max. acceleration | 50 m/s² |
| Max. speed | 0.35 m/s … 3 m/s |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 1 |
| Degree of protection | IP20 |
| Ambient temperature | -10 °C … 50 °C |
| 2nd moment of area Iy | 38300 mmâ´ |
| 2nd moment of area Iz | 41180 mmâ´ |
| Max. driving torque | 5 Nm |
| Max. force Fy | 300 N |
| Max. force Fz | 300 N |
| Max. no-load resistance to shifting | 27.9 N |
| No-load driving torque | 0.4 Nm |
| Mass moment of inertia JH per meter of stroke | 0.19 kgcm² |
| Mass moment of inertia JL per kg of payload | 2.05 kgcm² |
| Feed constant | 90 mm/U |
| Reference value, running performance | 5000 km |
| Additional weight per 10Â mm stroke | 78 g |
| Product weight | 10120 g |
| Additional moving mass per 10Â mm stroke | 0.92 g |
| Profile material | Wrought aluminum alloyAnodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Drive cover material | Wrought aluminum alloyAnodized |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Beryllium bronze |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
ELGR-TB

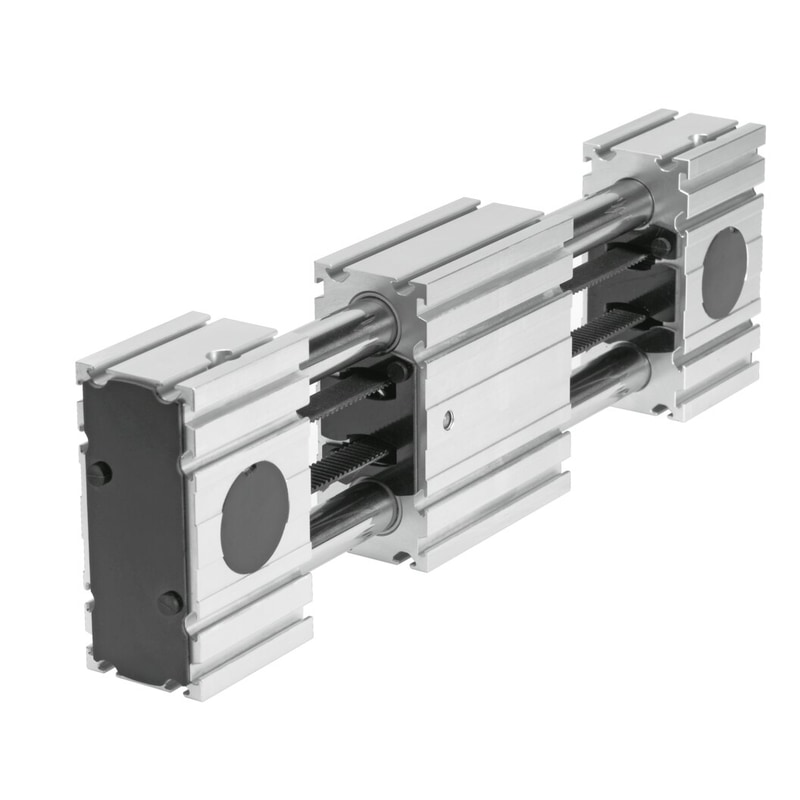

ELGR-TB-55-600-0H
$1,065.48
The reasonably priced belt driven linear actuator ELGR with stepper motor offers you a reliable means of executing simple, movements at high speeds.
| Size | 55 |
|---|---|
| Max. feed force Fx | 350 N |
| Repetition accuracy | ?0.1?mm |
| Working stroke | 600 mm |
