| Drive pinion effective diameter | 24.83 mm |
|---|---|
| Working stroke | 1000 mm |
| Size | 45 |
| Toothed belt elongation | 0.0008 |
| Toothed belt pitch | 3 mm |
| Type code | ELGR |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Stepper motorServo motor |
| Symbol | 991212 |
| Max. acceleration | 50 m/s² |
| Max. speed | 1 m/s … 3 m/s |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 1 |
| Degree of protection | IP20 |
| Ambient temperature | -10 °C … 50 °C |
| 2nd moment of area Iy | 15700 mmâ´ |
| 2nd moment of area Iz | 17940 mmâ´ |
| Max. driving torque | 1.24 Nm |
| Max. force Fy | 100 N |
| Max. force Fz | 100 N |
| Max. no-load resistance to shifting | 16.1 N |
| No-load driving torque | 0.2 Nm |
| Mass moment of inertia JH per meter of stroke | 0.11 kgcm² |
| Mass moment of inertia JL per kg of payload | 1.54 kgcm² |
| Feed constant | 78 mm/U |
| Reference value, running performance | 5000 km |
| Additional weight per 10Â mm stroke | 50 g |
| Product weight | 8230 g |
| Additional moving mass per 10Â mm stroke | 0.69 g |
| Profile material | Wrought aluminum alloyAnodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Drive cover material | Wrought aluminum alloyAnodized |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Beryllium bronze |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
ELGR-TB

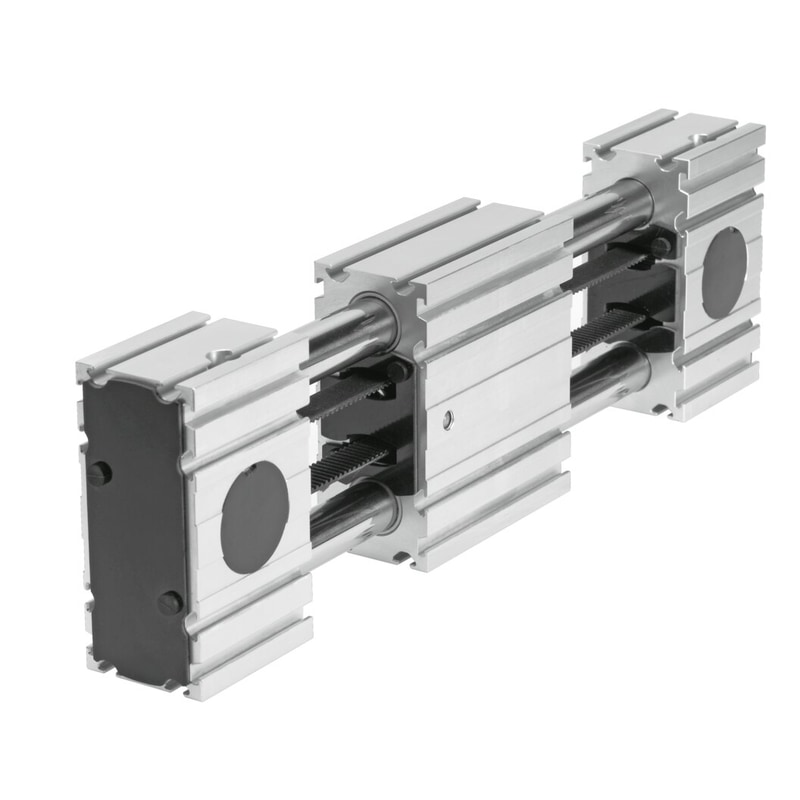

ELGR-TB-45-1000-0H
$999.28
The reasonably priced belt driven linear actuator ELGR with stepper motor offers you a reliable means of executing simple, movements at high speeds.
| Weight | 17.284241 lbs |
|---|---|
| Size | 45 |
| Max. feed force Fx | 100 N |
| Repetition accuracy | ?0.1?mm |
| Working stroke | 1000 mm |
