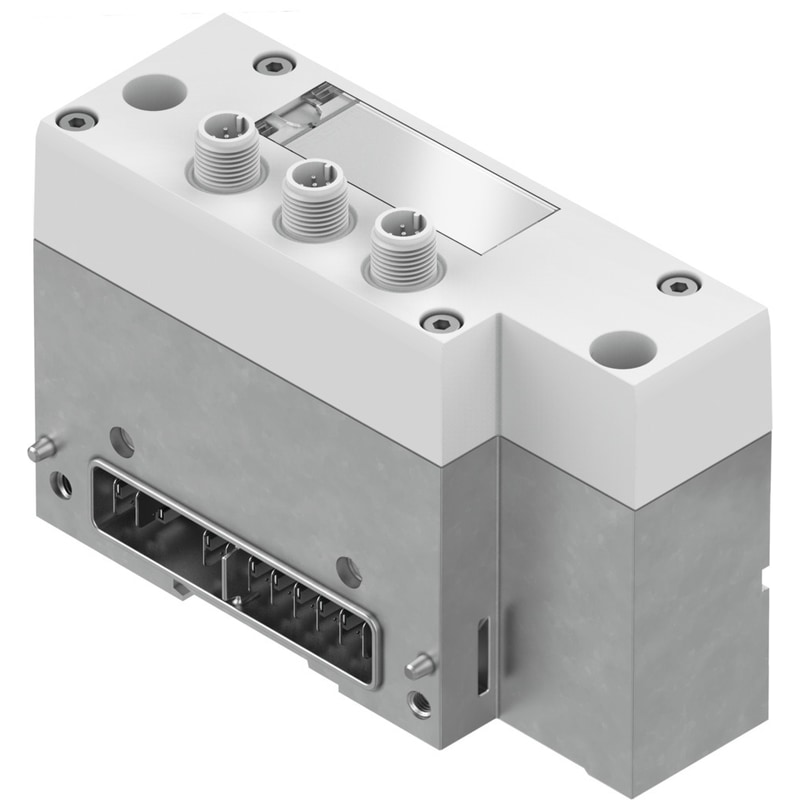

| Type code | VABA |
|---|---|
| Valve manifold interface | Type 44, VTSA |
| Diagnostics | Wire break per valve coilShort circuit of pneumatic valvesUndervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves24 for monostable pneumatic valves |
| LED indicators | 1 group diagnostics3 load supplyChannel status on pneumatic valves |
| Parameterization | Fail-safe modes per channelForcing per channelIdle mode per channelModule monitoring |
| Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6 V … 26.4 V |
| Intrinsic current consumption at nominal operating voltage | typ. 11 mA (electronics operating voltage supply)Typ. 45 mA (pneumatic valve load power supply) |
| Max. power supply per channel | 0.2 A |
| Max. residual current per module | 6 A |
| Nominal operating voltage DC | 24 V |
| Electrical isolation between channel and internal bus | yes |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| Degree of protection | IP65NEMA 4 |
| Ambient temperature | -5 °C … 50 °C |
| Product weight | 580 g |
| Electrical actuation | Fieldbus |
| Electrical connection | 3x M12x1 A-coded5-pinPlugVia CPX |
| Note on materials | RoHS-compliant |
| Cover material | PA |
| Housing material | Die-cast aluminum |
| Weight | 1.307429 lbs |
|---|---|
| Dimensions | 9.055118 × 4.724409 × 2.362205 in |
