cantilever axis
ELCC-TB-KF-70-800-0H-P0-CR
Part number: 8082396
New
| Effective diameter of drive pinion | 30.558 mm |
|---|---|
| Working stroke | 800 mm |
| Size | 70 |
| Stroke reserve | 0 mm |
| Toothed-belt pitch | 3 mm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Electromechanical Cantilever axis |
| Max. acceleration | 50 m/s2 |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0,05 mm |
| Corrosion resistance classification CRC | 0 – No corrosion stress |
| Protection class | IP20 |
| Weight | 28.880556 lbs |
|---|---|
| Drive pinion effective diameter | 30.558 mm |
| Working stroke | 800 mm |
| Size | 70 |
| Stroke reserve | 0 mm |
| Toothed belt pitch | 3 mm |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Structural design | Electromechanical cantilever axis |
| Symbol | 00991210 |
| Max. acceleration | 50 m/s² |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0.05 mm |
| Corrosion resistance class (CRC) | 0 – No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP20 |
| Ambient temperature | -10 °C … 60 °C |
| 2nd moment of area Iy | 959740 mm⁴ |
| 2nd moment of area Iz | 928740 mm⁴ |
| Max. driving torque | 10.4 Nm |
| Max. force Fy | 9680 N |
| Max. force Fz | 9406 N |
| Max. torque Mx | 104 Nm |
| Max. torque My | 826 Nm |
| Max. torque Mz | 797 Nm |
| Max. feed force Fx | 600 N |
| Mass moment of inertia JH per meter of stroke | 14.7 kgcm² |
| Mass moment of inertia JL per kg of payload | 2.3 kgcm² |
| Mass moment of inertia JO | 10.6 kgcm² |
| Feed constant | 96 mm/U |
| Reference service life | 5000 km |
| Lubrication interval, distance dependent | 1000 km |
| Moving mass at 0 mm stroke | 3210 g |
| Additional moving mass per 10 mm stroke | 63 g |
| Basic weight with 0 mm stroke | 7960 g |
| Additional weight per 10 mm stroke | 63 g |
| Material of end caps | Wrought aluminum alloy, anodized |
| Profile material | Wrought aluminum alloy, anodized |
| Note on materials | RoHS-compliant |
| Drive head material | Wrought aluminum alloy, anodized |
| Guide rail material | Rolled steel, Corrotect coated |
| Housing material | High-alloy stainless steel |
| Slide material | Cast aluminum, anodized |
| Toothed belt clamping component material | Wrought aluminum alloy, anodized |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
Only logged in customers who have purchased this product may leave a review.
Festo Fast
In stock and ready to ship
Ensures rapid shipping of critical components
Cut down on procurement time
Orders are shipped from our state-of-the-art Mason, Ohio facility

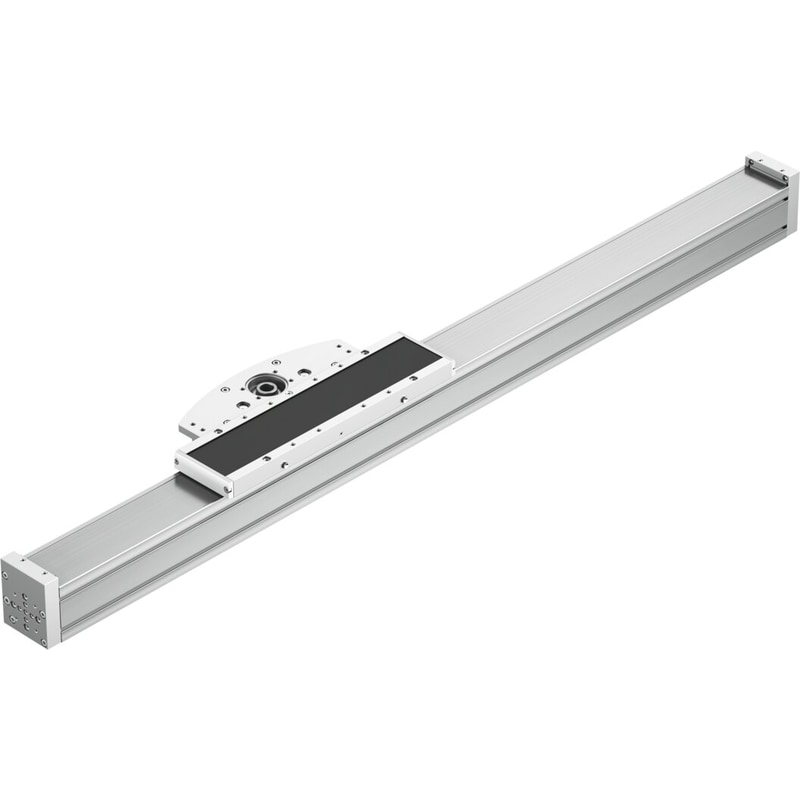

Cantilever linear actuator ELCC-TB-KF-70-800-0H-P0-CR
