ELCC-TB-KF-60-200-0H-P0-CR

$3,125.61

SKU: 8082386 Category: Tag: Brand:

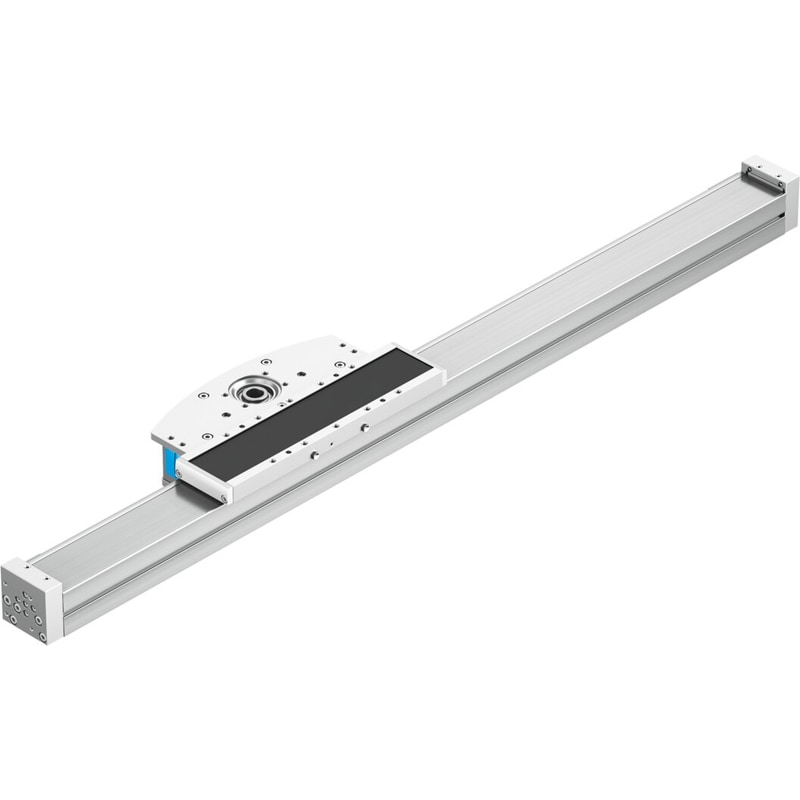

cantilever axis
ELCC-TB-KF-60-200-0H-P0-CR
Part number: 8082386

New

Effective diameter of drive pinion 30.558 mm
Working stroke 200 mm
Size 60
Stroke reserve 0 mm
Toothed-belt pitch 3 mm
Assembly position Any
Guide Recirculating ball bearing guide
Design structure Electromechanical Cantilever axis
Max. acceleration 50 m/s2
Max. speed 5 m/s
Repetition accuracy ±0,05 mm
Corrosion resistance classification CRC 0 – No corrosion stress
Protection class IP20
Effective diameter of drive pinion

30.558 mm

Working stroke

200 mm

Size

60

Stroke reserve

0 mm

Toothed-belt pitch

3 mm

Assembly position

Any

Guide

Recirculating ball bearing guide

Design structure

Electromechanical Cantilever axis

Max. acceleration

50 m/s2

Max. speed

5 m/s

Repetition accuracy

±0,05 mm

Corrosion resistance classification CRC

0 – No corrosion stress

Protection class

IP20
